4-22 Compaq StorageWorks SSL2000 Series Library Reference Guide

Removing the Magazine

Emergency Magazine Removal

1
1

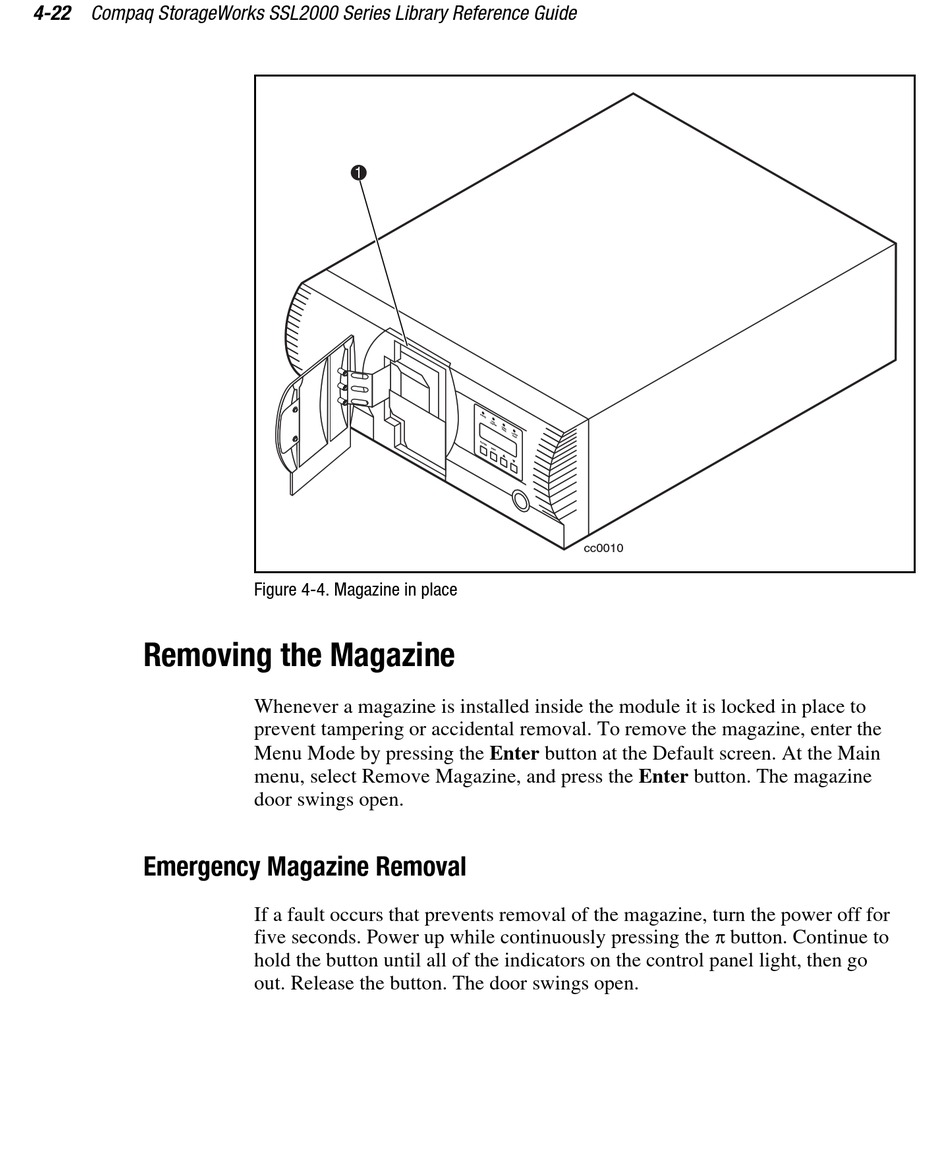

Figure 4-4. Magazine in place

Whenever a magazine is installed inside the module it is locked in place to
prevent tampering or accidental removal. To remove the magazine, enter the
Menu Mode by pressing the Enter button at the Default screen. At the Main
menu, select Remove Magazine, and press the Enter button. The magazine
door swings open.
If a fault occurs that prevents removal of the magazine, turn the power off for
five seconds. Power up while continuously pressing the
hold the button until all of the indicators on the control panel light, then go
out. Release the button. The door swings open.
R e
a d
y
U s
C le e
a n
e r
D ri
v e
F a
u lt
L o
a d
F a e r
u lt
E s
c a
p e
E n
te r
cc0010
π
button. Continue to
