Step 3:

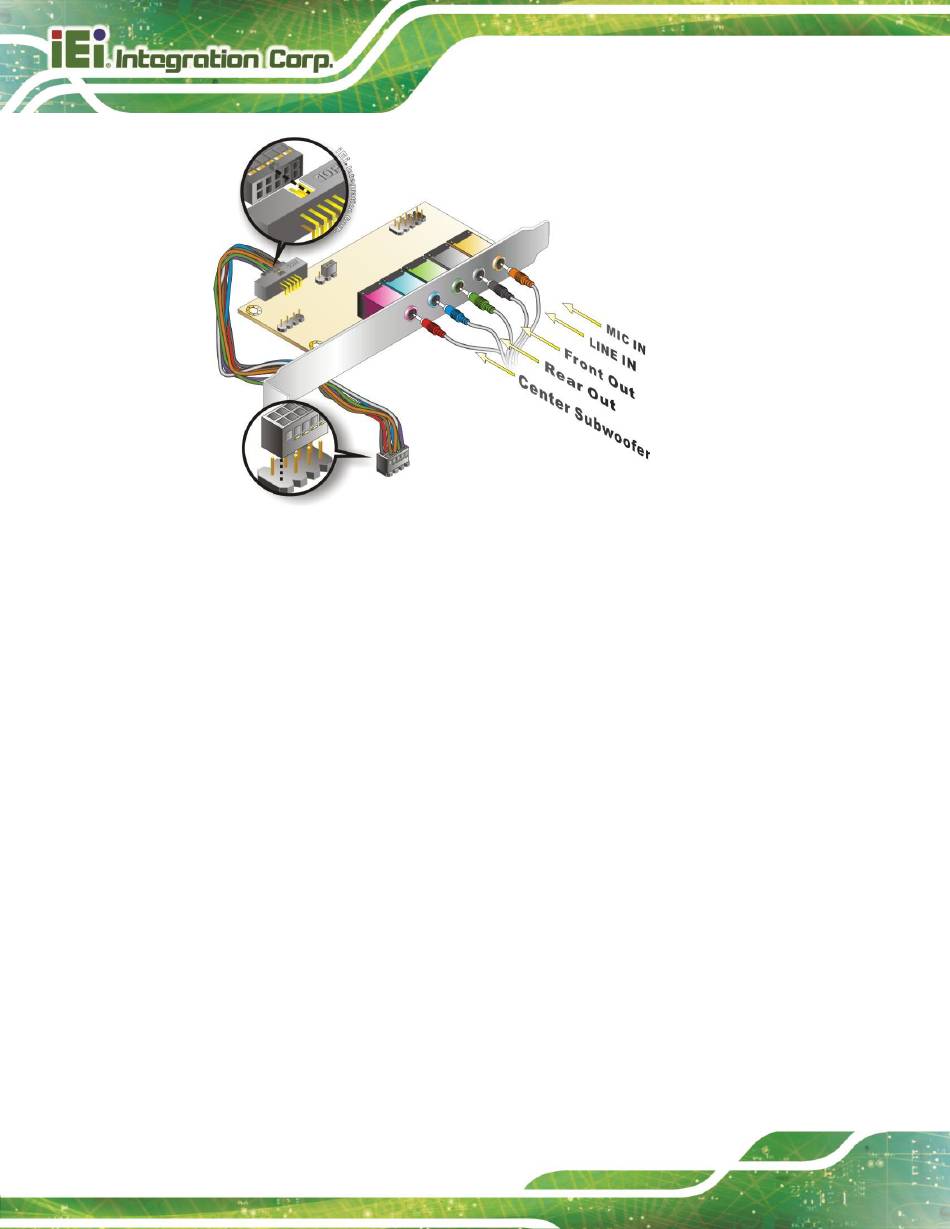

Mount the audio kit onto the chassis. Once the audio kit is connected to the

board, secure the audio kit bracket to the system chassis.

Step 4:

Connect the audio devices. Connect speakers and external audio sources to

the audio jacks on the audio kit.

Step 5:

Install the driver. Install the 7.1 channel audio driver included with the board.

Step 0:

4.6.3 RS-232 Cable Connection

The single RS-232 cable consists of one serial port connector attached to a serial

communications cable that is then attached to a D-sub 9 male connector. To install the

single RS-232 cable, please follow the steps below.

Step 1:

Locate the connector. The location of the RS-232 connector is shown in

Chapter 3.

Page 56

WAFER-JL-N5105 SBC
