WAFER-JL-N5105 SBC
3.2.18 M.2 Slot, B-key
CN Label:
CN Type:
CN Location:
CN Pinouts:
The M.2 B key (3042/2280) slot with PCIe Gen3 x2 and USB 2.0 signal supports NVMe
storage or 5G module with SIM holder

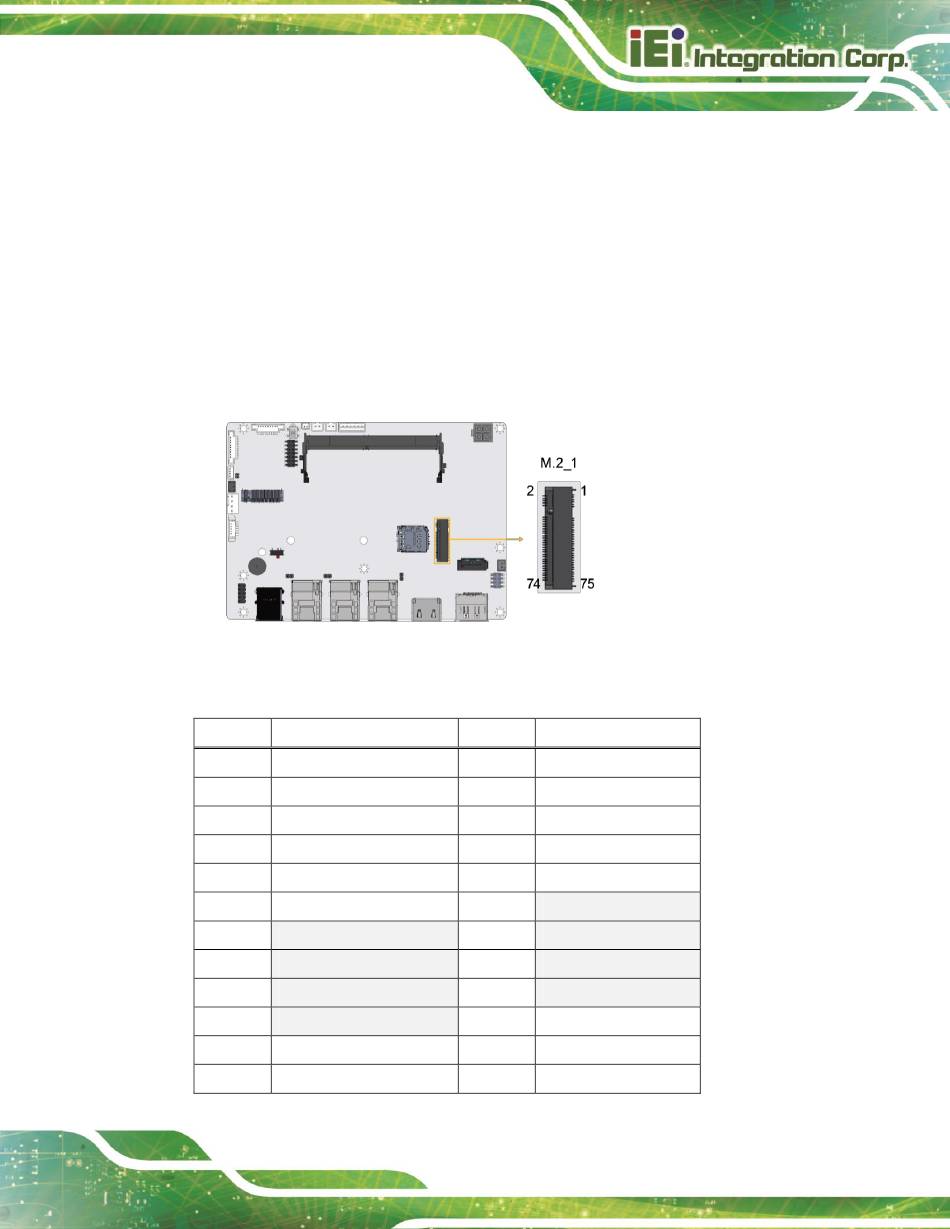

Figure 3-20: M.2 B key Slot Location

PIN NO. DESCRIPTION
1 CONFIG_3
3 GND
5 GND
7 USB_D+
9 USB_D-
11 GND
13 Module Key
15 Module Key
17 Module Key
19 Module Key
21 CONFIG_0
23 N/C
M2_1
M.2 B-key slot
See Figure 3-20
791H
See Table 3-23
PIN NO.
2
4
6
8
10
12
14
16
18
20
22
24
DESCRIPTION
+3.3V
+3.3V
POWER_OFF
W_DISABLE
DAS/DSS#
Module Key
Module Key
Module Key
Module Key
N/C
N/C
N/C
Page 35
