3.2.10 Power Button Connector

CN Label:
CN Type:
CN Location:
CN Pinouts:
The power button connector is connected to a power switch on the system chassis to
enable users to turn the system on and off.

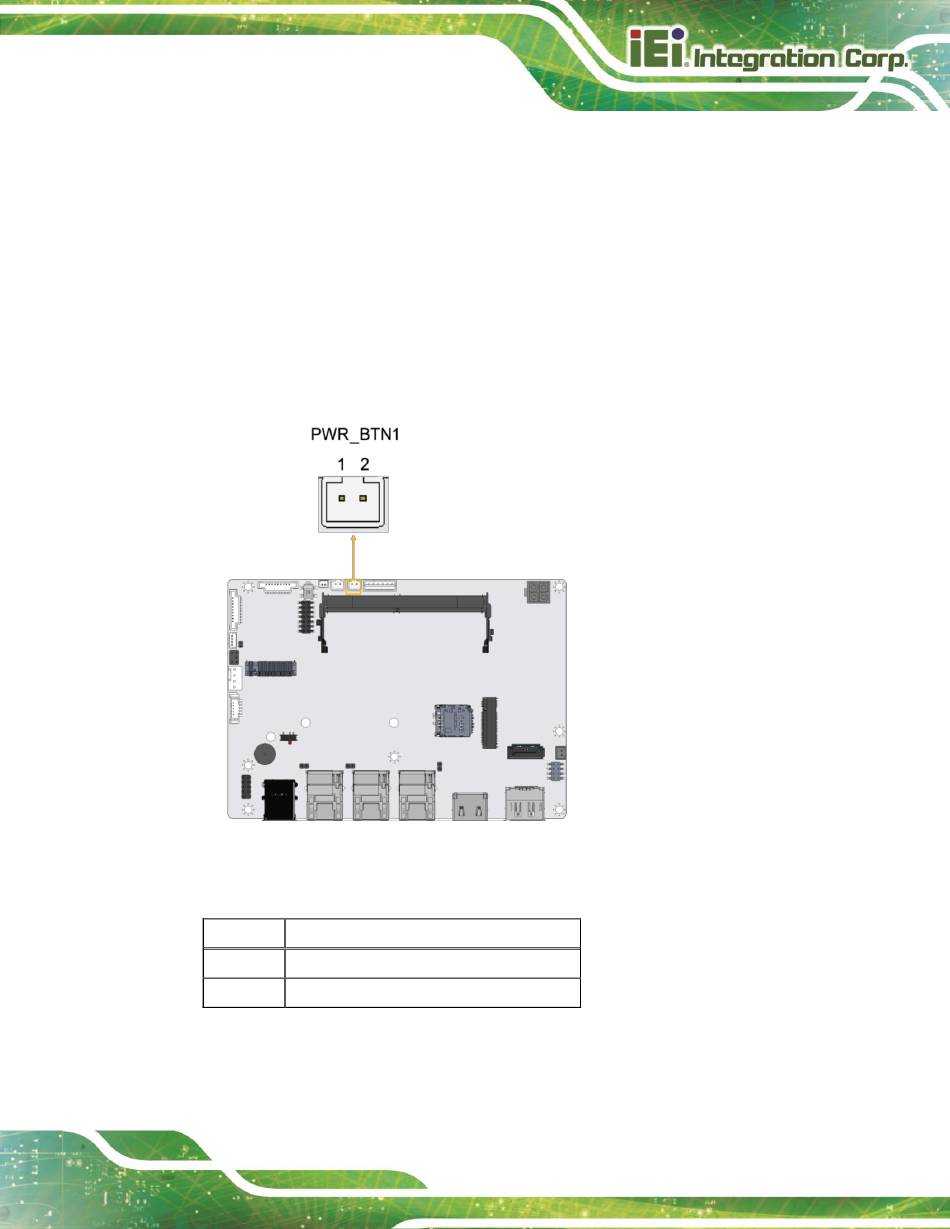

Figure 3-12: Power Button Connector Location

Pin
Description
1
PWR_BTN+
2
PWR_BTN-

Table 3-15: Power Button Connector Pinouts

PWR_BTN1
2-pin wafer, p=2.00 mm
See Figure 3-12
See Table 3-15
