General Information Dump Mode - Intermec EasyCoder C4 Programmer's Manual

General Information
Dump Mode

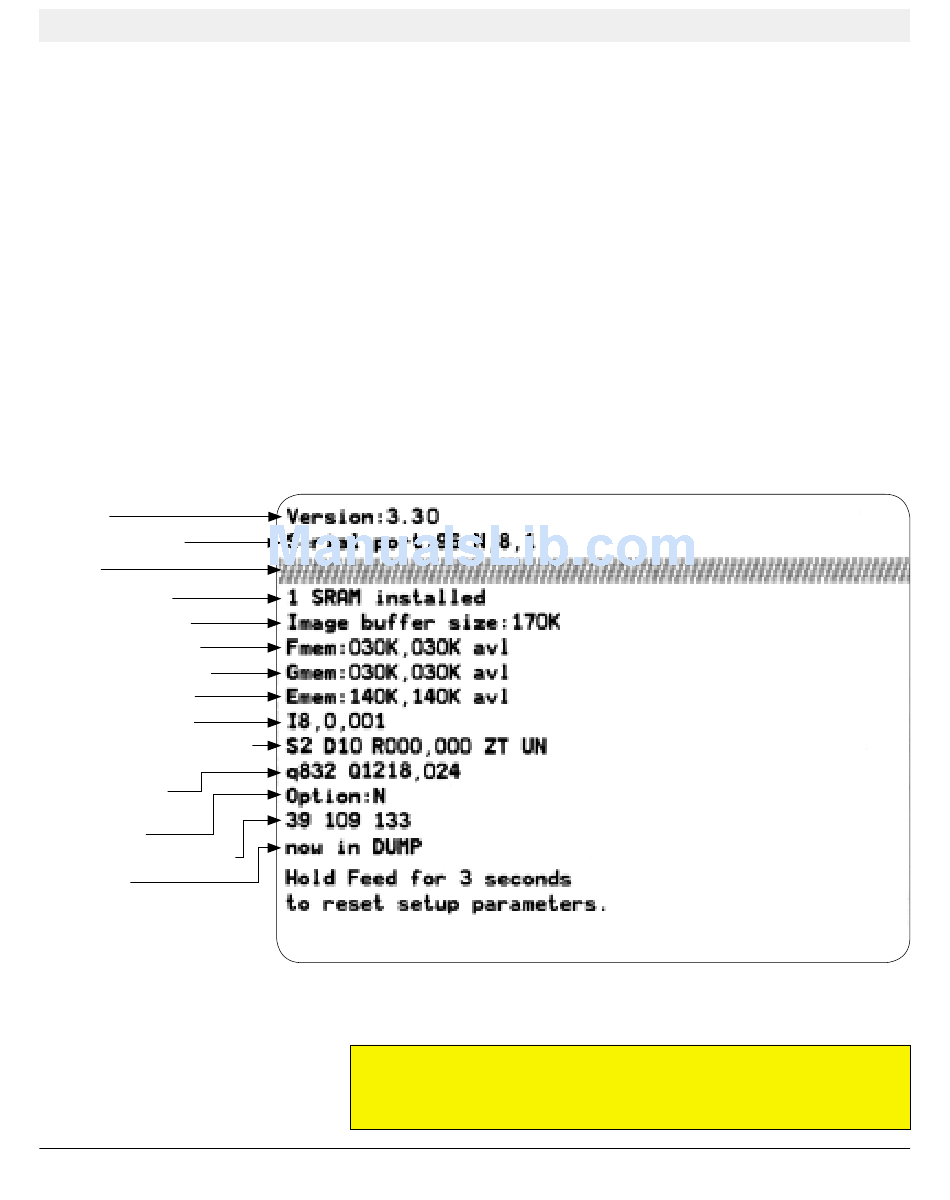

ESim version
Serial port setup (see Y cmd)
Test pattern
Number of SRAM installed
Image buffer size (see M cmd)
Form memory size (see M cmd)
Graphic memory size (see M cmd)
Font memory size (see M cmd)
Character set (see I command)
Speed – Density – Ref. point – Dir – Errors
(see S, D, R, Z & UN/US cmds)
Label width –Form length
(see q & Q cmds)
Options (see O cmd)
LSS (liner+label – detection level – liner)
Dump Mode On
Intermec EasyCoder C4 – Programmer's Guide Ed. 3
The printer has the capability to perform in dump mode, which
means that the printer will print out the echo of the received ASCII.
Use this capability to debug your software when the printer does
not perform as you expect.
To enter Dump Mode:
• Turn off the power to the printer.
• For best result, load the printer with full width labels or tags.
• Hold down the Feed key and turn on the power again.
• Release the Feed key when the indicator lamp fl ashes green.
• This procedure adjusts the label stop sensor and media feed and
produces a test label, see below.
• After the test label has been printed, the printer enters the Dump
Mode, as indicated by the last line on the test label.
The Test Label contains useful information on the printer's current
setup.
IMPORTANT!
Do not use continuous stock in Dump Mode. An error will occur
since there are no gaps or slots to detect.
