Field Positioning

X-axis
832
Intermec EasyCoder C4 – Programmer's Guide Ed. 3
The printable area of the label forms a grid, where the X-axis runs
across the label and the Y-axis runs along the label web. Dots are
used as the unit for establishing position of the upper left corner of
each fi eld in relation to a specifi ed reference point, in this example
the top left corner of the form.
For example, as the printhead density is eight dots per millimeter
(203 dots per inch), a fi eld that starts 5 mm (0.197 in.) inside of the
left margin and 3 mm (0.118 in.) down should be expressed as 40
dots on the X axis and 24 dots on the Y axis.
Text and bar code fi elds can be rotated around their insertion points,
whereas lines, boxes and graphics cannot be rotated. However, the

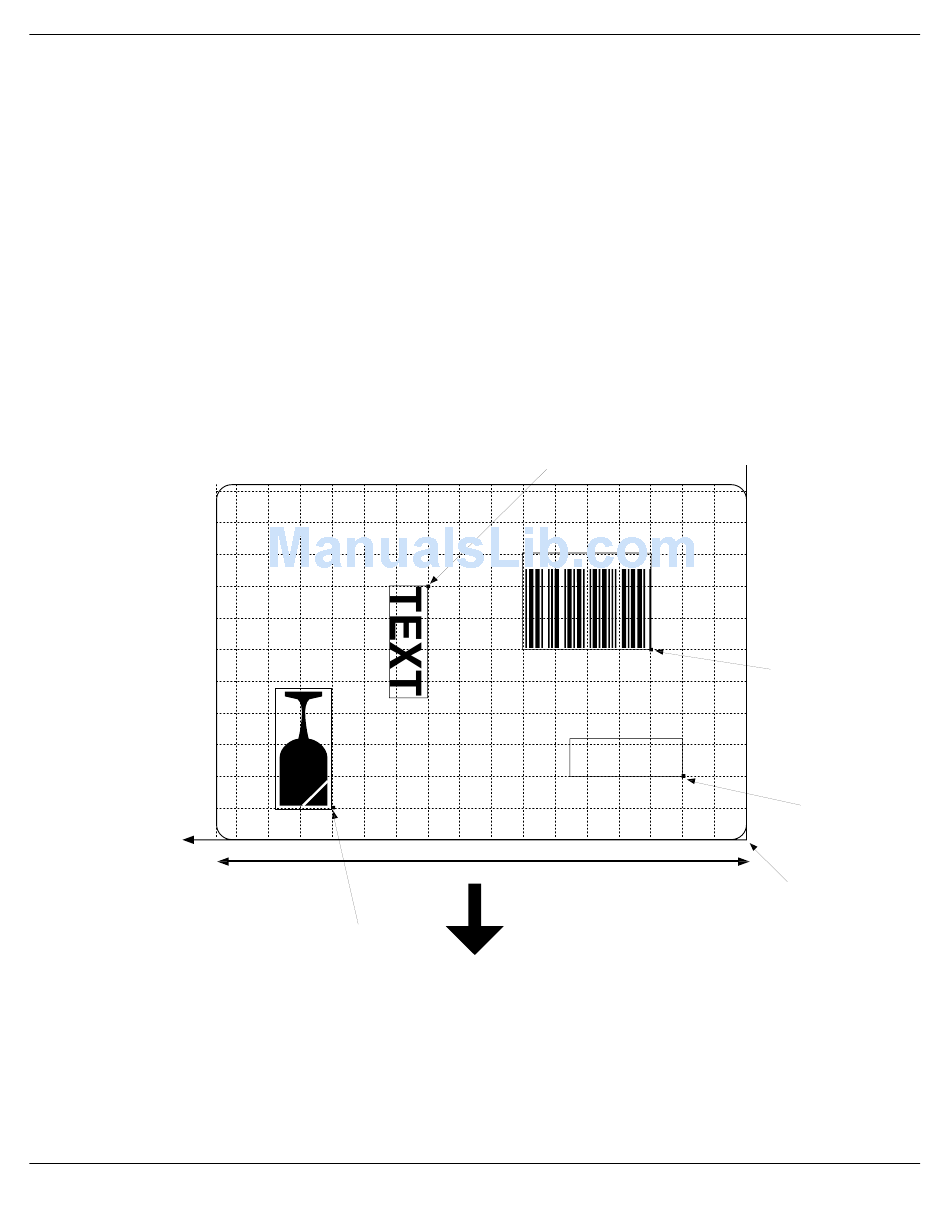

entire print image can be rotated 180°. The illustration below shows
coordinates for the default print direction (ZT).
800 750 700 650 600 550
Print Width 104 mm (832 dots)
Graphic Field
X650;Y050
X500;Y400
TEXT
500 450 400 350 300 250
Feed
Direction
Chapter 1 General Information
550
500
450
39 CODE
400
350
300
Bar Code Field
250
200
150
100
50
200 150 100 50
Reference Point
at direction ZT
X000;Y000
X150;Y300
Text Field
X100;Y100
