1.16 P2 and P3 Military Connector

The following two tables define the signals and signal maps of the two military I/O connectors
(P2 and P3) on the HPERC-IBR-M. Each table lists the P2 or P3 pin numbers, the signal names
and descriptions and the corresponding pins of the internal IO boards (HIBR and Interface
Board.) Figure 1-9 provides the number and location of each pin on the two military connectors.

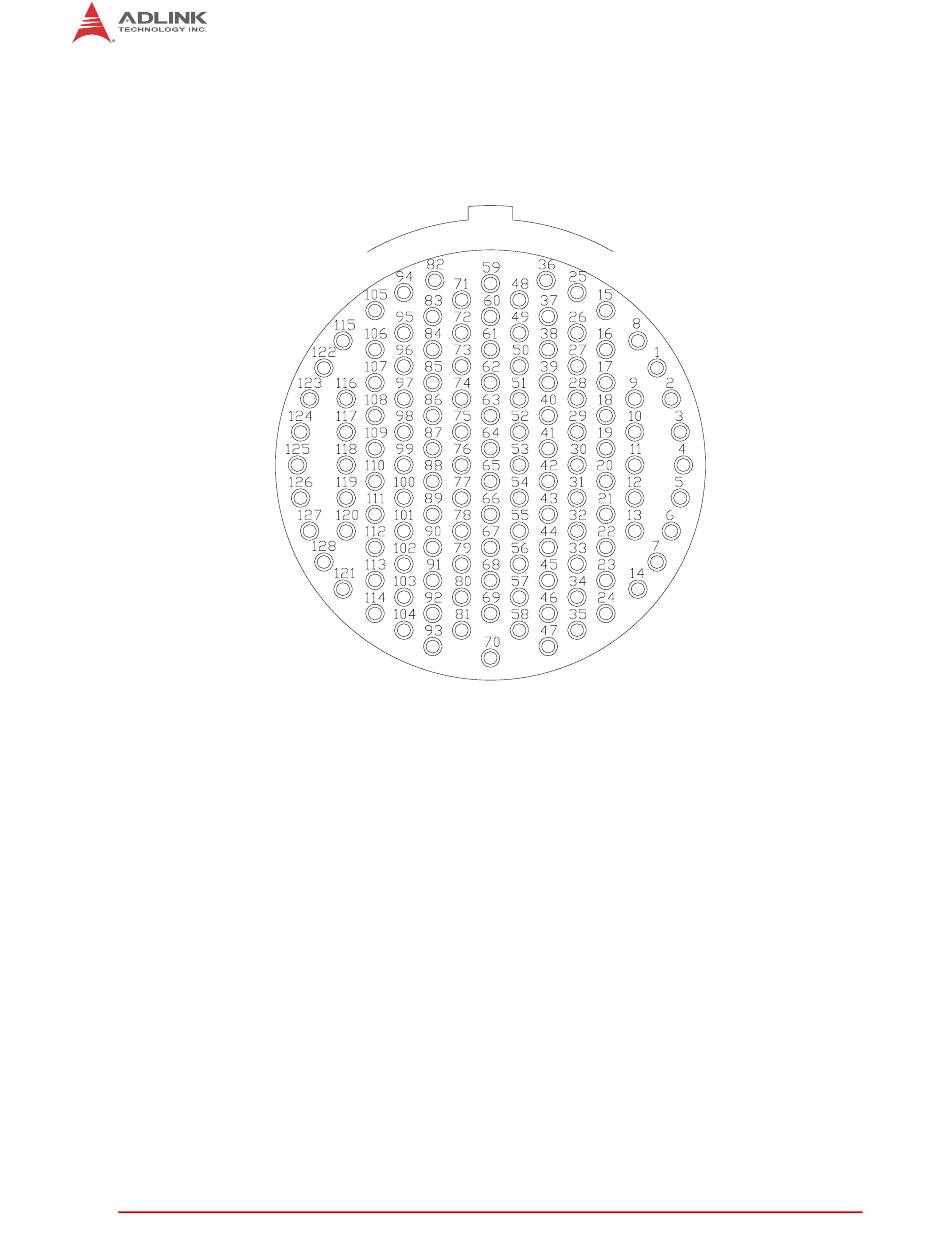

Figure 1-9: P2 and P3 Military Interface Connector Pin Locations
