1.14 Connecting Peripherals

Connect the appropriate
military breakout cable to
the corresponding
HPERC-IBR-M military
connector. See Figure 1-3
for illustrations of cables.
See Figure 1-7 for
locations of the
HPERC-IBR-M military
connectors.
HPERC-IBR-MH
HPERC-IBR-MC
12
• Refer to Figure 1-7 for locations and descriptions of the connectors before
making connections or powering on the HPERC-IBR-M.
• Connect the USB or PS2 keyboard to the corresponding connector on the
appropriate breakout cable.
• Connect the USB or PS2 mouse to the appropriate connector on the
corresponding breakout cable.
• Connect the VGA or LCD display to the appropriate connector on the
corresponding breakout cable.
P2 Military P1 DC
Connector
Power In

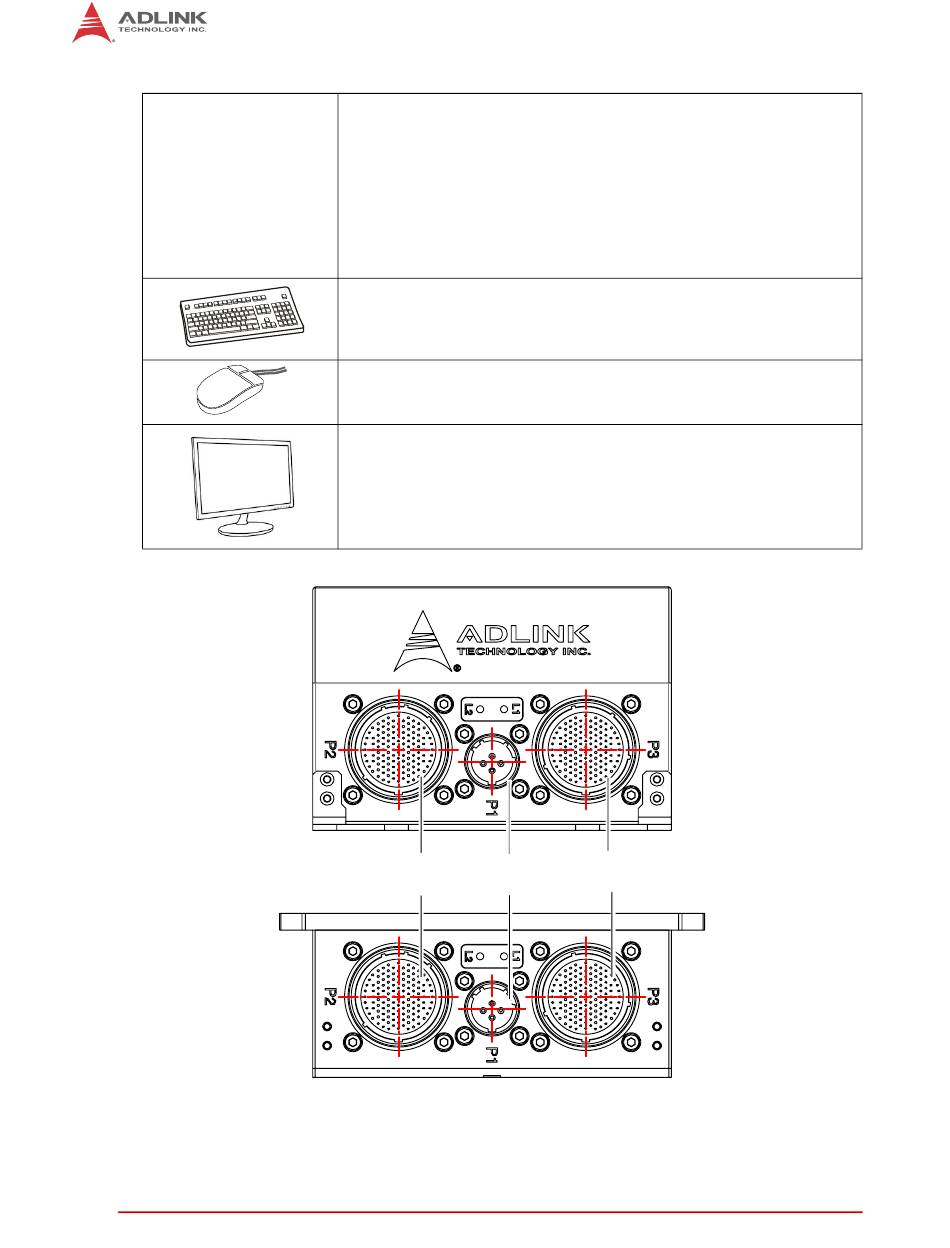

Figure 1-7: Front View of HPERC-IBR-M I/O Panel

P3 Military
Connector
HPERC-IBR-M Setup
