Optional mounting points for
surface/wall mounting or heat
sink (HPERC-IBR-MC only
Mounting Hole "A" Size: M4 threaded
Maximum Torque: 30 Kgf-cm (2.85 N-m)

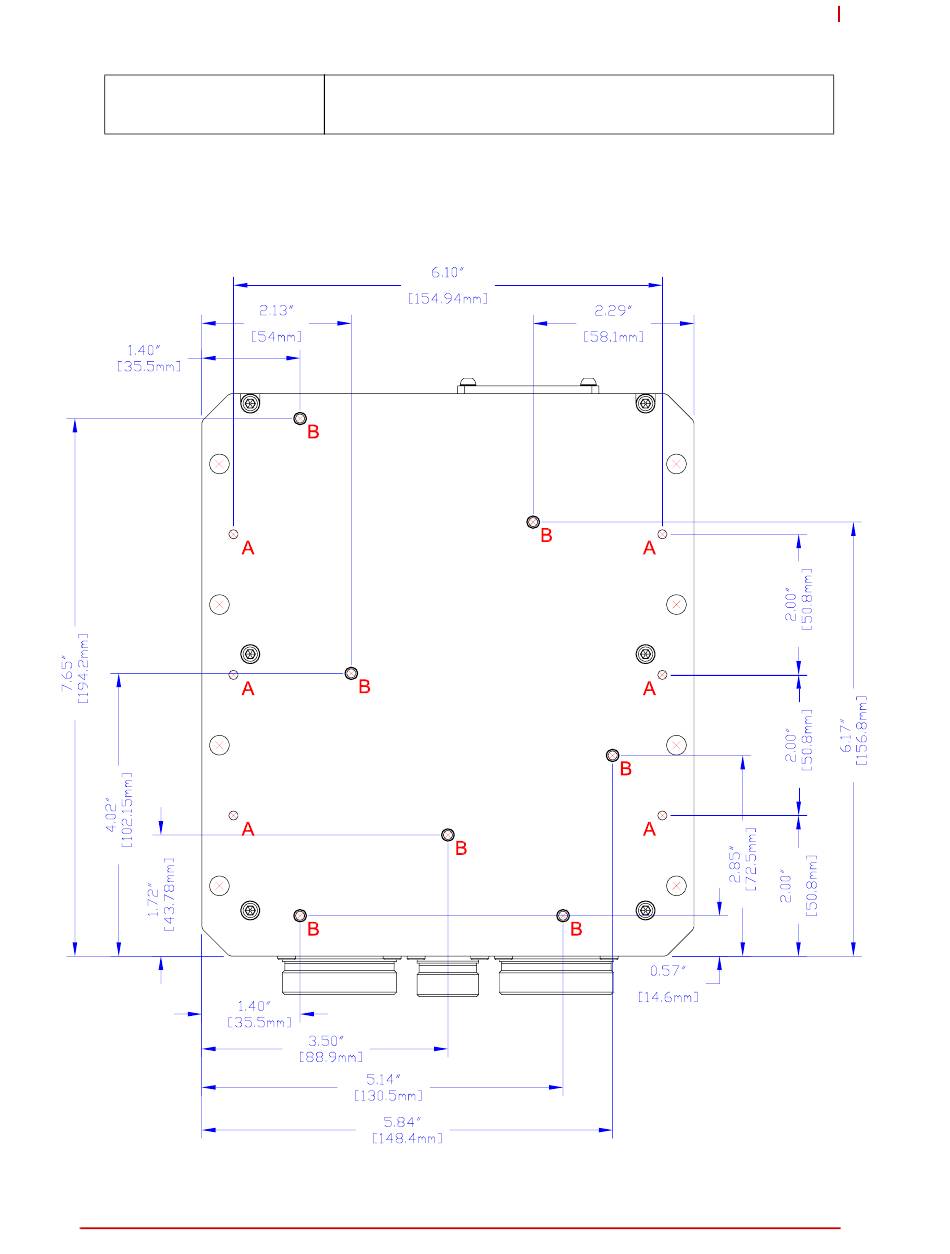

Figure 1-6: Bottom View of "MC" Enclosure with Mounting Holes
HPERC-IBR-M Setup
• Mounting holes "A" and "B" are shown below in Figure 1-6. Note the
recommended torque values and maximum depth of hole "B".
Mounting Hole "B" Size: M4 threaded, max. depth 7mm
Maximum Torque: 41 Kgf-cm (4 N-m)
HPERC-IBR-M
