EBP-13E4

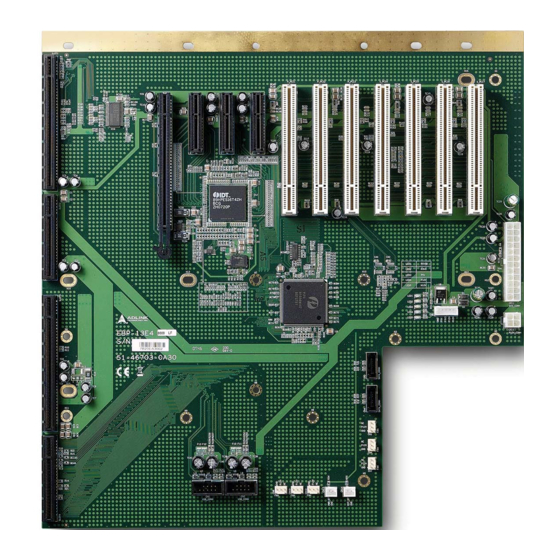

PICMG 1.3 Backplane

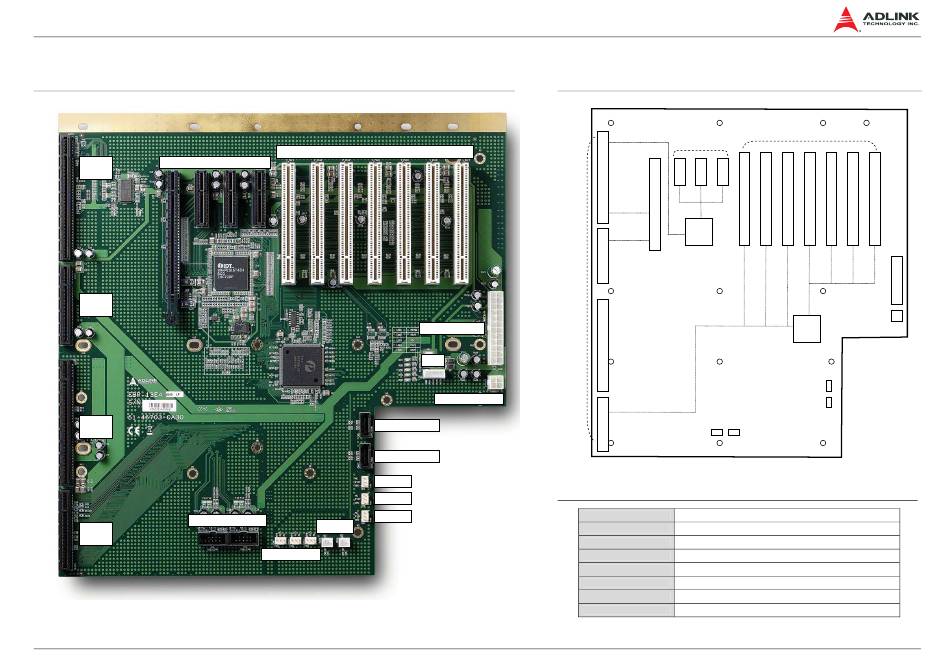

Backplane Layout
SHB
PCIE1 PCIE2 PCIE3 PCIE4
SLOT1
SHB
SLOT2
SHB
SLOT3
CN1/2 USB CONN
SHB
SLOT4
Part No.: 50-1Z009-1000
Quick Reference Guide
EBP-13E4
PICMG 1.3 Backplane
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
CN11 ATX CONN
CN9
CN15 P12V CONN
CN3 SATA CONN
CN3 SATA CONN
CN5 FAN
CN6 FAN
CN7 FAN
CN13/14
CN8/10/12 FAN
— Rev. 1.01
Block Diagram
PCIe x16
PCI7
slot
SHB
Specifications
Form Factor
Dimensions
SHB Slots
PCI Express Slots
PCI slots
Peripheral Connectors
Misc. Connectors
Power Requirement
PCI slots
PCIe x4slots
|
Primary
Secondary
PCIe-to-PCIe
Packet Switch
PCI Bus
PCI-to-PCI
Bridge
SATA
USB
PICMG 1.3 Backplane for full-size SHB
330mm x 318mm
1
1 PCIe x16, 3 PCIe x4
7
2 USB connectors (4 ports), 2 SATA connectors
6 Fan connectors, Power/Reset connectors
ATX (1x 24-pin ATX connector, 1x 4-pin ATX 12V connector)
ATX
June 4, 2009
