Control/Connector
P1 DC Power In
P2 Military Connector
P3 Military Connector
L1/L2 LEDs

Table 1-5: I/O Panel Connectors (Refer to Figure 1-7 for connector locations.)

NOTE: To connect an external Hard Disk Drive (HDD) or CD-ROM to the HPERC-IBR-M,
use one of the USB or SATA ports to connect the device.

1.15 P1 Military DC Power In Connector

The following diagram and table define the signals and signal maps of the P1 military DC power
in connector.

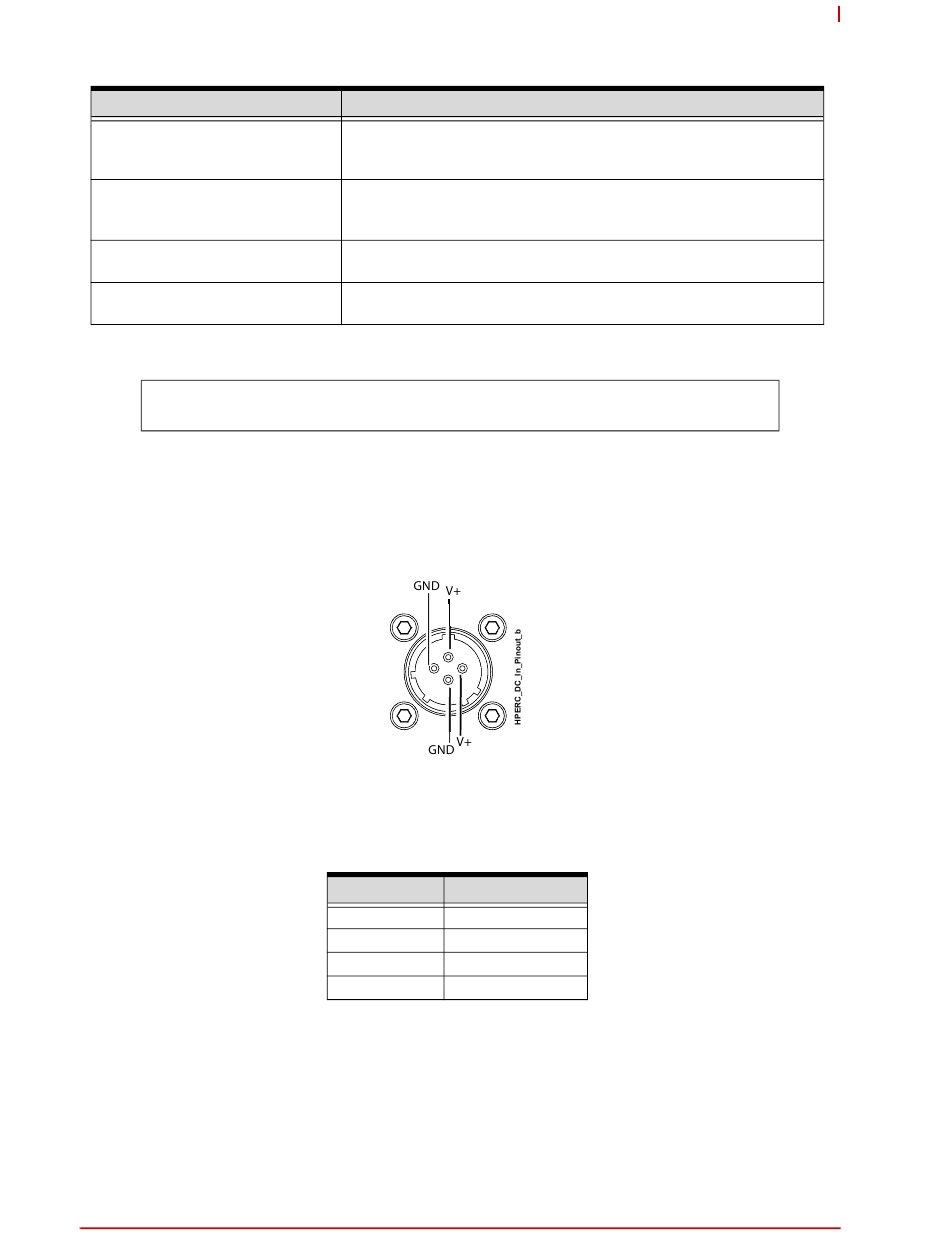

Figure 1-8: P1 Military DC Power In Connector Pin Locations

HPERC-IBR-M Setup
This Military Power connector accepts DC voltages from an external
source.
NOTE: This connector is manufactured by Amphenol.
This military connector provides signals for Ethernet Ports, USB 2.0,
Serial Ports, Reset Switch, Ethernet LEDs, Power LED, SATA Activity
LED, UNDIO, Power Switch, Audio In/Out.
This military connector provides signals for VGA, Ethernet LEDs,
Ethernet Ports, Serial Ports, PS/2 Keyboard and Mouse, DVI, USB 2.0.
Both LEDs light amber to indicate that the system is powered on
(programmable functionality is reserved for future revisions).
A
D
C
P1 Pin
A
B
C
D

Table 1-6: P1 Military DC Power In Connector Signals

Description
B
Signal
V+
V+
Ground
Ground
HPERC-IBR-M
