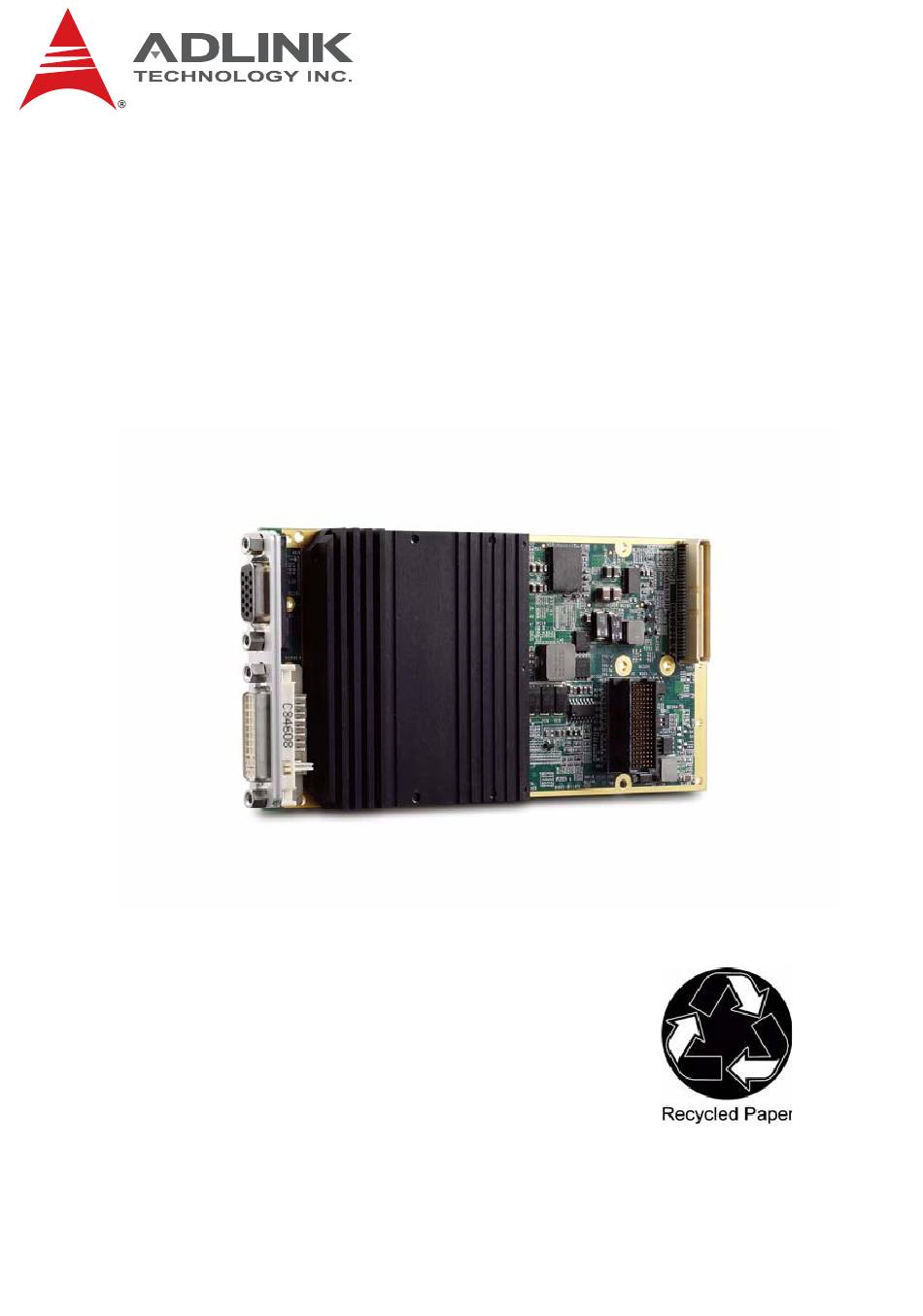

- Page 1 XMC-G460 Dual Display Graphics XMC module with ATI E4690 GPU User’s Manual Manual Rev.: 2.00 Revision Date: November 9, 2010 Part No: 50-1Z060-1000 Advance Technologies; Automate the World. This datasheet has been downloaded from http://www.digchip.com at this page...
-
Page 2: Revision History
Revision History Revision Release Date Description of Change(s) 2.00 2010/11/09 Initial Release... -
Page 3: Preface
XMC-G460 Preface Copyright 2010 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 Using this Manual Audience and Scope The XMC-G460 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating industrial grade computer systems. Manual Organization This manual is organized as follows: Chapter 1, Introduction: Introduces the XMC-G460, its features, block diagrams, and package contents.
- Page 5 XMC-G460 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
- Page 6 This page intentionally left blank. Preface...
-
Page 7: Table Of Contents
GPU ..................6 Power Consumption ............7 Thermal Requirements ............8 Graphics Performance............10 3 Board Interfaces ............... 11 XMC-G460 Board Layout ..........11 Connector Pin Assignments ..........12 Switch Settings ..............16 4 Getting Started ..............17 Installing the Module............17 Driver Installation ............... - Page 8 Important Safety Instructions..........21 Getting Service ..............23 viii Table of Contents...
-
Page 9: List Of Figures
XMC-G460 List of Figures Figure 1-1: XMC-G460 Functional Block Diagram......2 Figure 2-1: XMC-G460 Power Dissipation Graph (400MHz clock) ..9 Figure 2-2: XMC-G460 Power Dissipation Graph (600MHz clock) ..9 Figure 3-1: XMC-G460 Board Layout ..........11 List of Figures... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: List Of Tables
XMC-G460 List of Tables Table 2-1: XMC-G460 Power Consumption ........7 Table 2-2: XMC-G460 Graphics Performance........ 10 Table 3-1: VGA Connector Pin Definition ........12 Table 3-2: DVI-I Connector Pin Definition........13 Table 3-3: XMC Connector Pin Definition ........14 Table 3-4: Jn4 Rear I/O Connector Pin Definition...... - Page 12 This page intentionally left blank. List of Tables...
-
Page 13: Introduction
XMC-G460 Introduction 1.1 Overview The XMC-G460 is a Dual Display Graphics XMC module equipped with the ATI Radeon E4690 embedded graphics processor. Fea- tured are one DVI-I and one DB-15 VGA port on the front panel with both RGB channels switchable to rear I/O, and one HDMI port to rear I/O. -
Page 14: Block Diagram
1.3 Block Diagram DAC2 (RGB) (rear I/O) Dual-link DVI HDMI DAC 1 (RGB) PCIe x8 E4690 Flash EEPROM Figure 1-1: XMC-G460 Functional Block Diagram Introduction... -
Page 15: Package Contents
XMC-G460 1.4 Package Contents The XMC-G460 is packaged with the following components. If any of the items on the contents list are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection. Please obtain authorization before returning any prod- uct to ADLINK. - Page 16 This page intentionally left blank. Introduction...
-
Page 17: Specifications
XMC-G460 Specifications 2.1 XMC-G460 Standards • VITA 42.3-2006 • VITA 20-2001 Form Factor • IEEE P1386, Standard XMC.3 • 74 mm x 149 mm x 8.2 mm (single width) • ATI Radeon E4690 embedded GPU • Integrated 128-bit memory interface and 512MB GDDR3 VRAM •... -
Page 18: Gpu
2.2 GPU The following sections describe the ATI Radeon E4690 embedded GPU features and functions. Integrated 512MB GDDR3 and 128-bit memory interface Fully DirectX 10.1 compliant Support for OpenGL® 3.0 Dual independent display controllers support true 30-bpp throughout the display pipe Support for display resolutions up to 3840x2400 per display output Integrated HD Audio codec supports linear PCM and... -
Page 19: Power Consumption
XMC-G460 2.3 Power Consumption The power consumption data of the XMC-G460 was measured using 3D Mark06 at different engine clock frequencies (memory clock fixed at 700MHz). Configuration Futuremark 3DMark06 Professional Edition 1.1.0 Current (A) Power (W) Engine Voltage (V) Clock... -
Page 20: Thermal Requirements
2.4 Thermal Requirements This section provides information on the thermal requirements of the XMC-G460. Cooling of the board and its components is pro- vided by the thermal module (passive heatsink) and is dependent on sufficient airflow from the chassis. The amount of thermal energy that can by dissipated from the board is dependent on the ambient air temperature, power con- sumption of the host board, and the airflow rate of the chassis. - Page 21 XMC-G460 400MHz Engine Clock Airflow Rate (CFM) 100% TDP 75% TDP Figure 2-1: XMC-G460 Power Dissipation Graph (400MHz engine clock) 600MHz Engine Clock Airflow Rate (CFM) 100% TDP 75% TDP Figure 2-2: XMC-G460 Power Dissipation Graph (600MHz engine clock) Specifications...
-
Page 22: Graphics Performance
2.5 Graphics Performance Futuremark 3DMark06 Professional Edition 1.1.0 was used to mea- sured the graphics performance of the XMC-G460 while installed on an ADLINK cPCI-6510 6U CompactPCI Processor Blade. The below table shows the test configuration and results at different engine clock speeds. -
Page 23: Board Interfaces
XMC-G460. 3.1 XMC-G460 Board Layout CNY1 SWY1 E4690 GPU DB-15 VGA connector XMC connector CNY1 DVI-I connector Jn4 Rear I/O connector SWY1 RGB output switch Figure 3-1: XMC-G460 Board Layout Board Interfaces... -
Page 24: Connector Pin Assignments
3.2 Connector Pin Assignments DB-15 VGA Connector (CN3) Signal Name Pin # Pin # Signal Name Green Blue N.C. +5V. N.C. CRTDATA HSYNC VSYNC CRTCLK Table 3-1: VGA Connector Pin Definition Board Interfaces... -
Page 25: Table 3-2: Dvi-I Connector Pin Definition
XMC-G460 DVI-I Connector (CNY1) Pin # Signal Pin # Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDS Data0+ TMDS Data5- DDC Clock [SCL] TMDS Data5+ DDC Data [SDA] TMDS Clock Shield Analog vertical sync TMDS Clock +... -
Page 26: Table 3-3: Xmc Connector Pin Definition
XMC Connector (CN1) Pin# PET0p0 PET0n0 3.3V PET0p1 PET0n1 VPWR Reserved MRSTI# PET0p2 PET0n2 3.3V PET0p3 PET0n3 VPWR Reserved Reserved PET0p4 PET0n4 3.3V PET0p5 PET0n5 VPWR Reserved +12V PET0p6 PET0n6 3.3V PET0p7 PET0n7 VPWR +12V VPWR Reserved PER0p0 PER0n0 Reserved PER0p1 PER0n1 VPWR... -
Page 27: Table 3-4: Jn4 Rear I/O Connector Pin Definition
XMC-G460 Jn4 Rear I/O Connector (CN2) Pin# Signal Pin# Signal Reserved BLU-2 RTN Reserved BLU-2 Reserved H-SYNC-2 Reserved Reserved Reserved V-SYNC-1 Reserved RED-2 RTN Reserved RED-2 Reserved V-SYNC-2 DDCHDMI-SDA DDC2-SDA DDCHDMI-SCL H-SYNC-1 HDMI HPD DDC2-SCL DDC1-SDA Reserved DDC1-SCL Reserved Reserved... -
Page 28: Switch Settings
3.3 Switch Settings RGB Output Switch (SWY1) The XMC-G460 has a switch to set the DAC channel outputs (RGB) to front or rear. The default setting is both channels to the front panel. Mode DAC1 to front DB-15 VGA DAC2 to front DVI-I... -
Page 29: Getting Started
XMC-G460 Getting Started 4.1 Installing the Module 1. Remove the XMC slot filler faceplate from the front panel of the host board. 2. Insert the faceplate of the XMC module into the XMC slot in the front panel of the host board. -
Page 30: Driver Installation
4.2 Driver Installation The XMC-G460 drivers can be found on the ADLINK All-In-One DVD at X:\XMC\XMC-G460\GPU, or at the ADLINK website (http://www.adlinktech.com). Driver installation procedures for Windows® XP are described below. 1. Install the Windows operating system before installing any driver. Most standard I/O device drivers are installed during Windows installation. -
Page 31: Vbios Update
XMC-G460 VBIOS Update For thermal considerations, the engine clock of the XMC-G460 can be changed by applying a VBIOS update. ADLINK provides four VBIOS options (200, 300, 400, 500MHz) for users to set the best performance and thermal combination for their application. - Page 32 This page intentionally left blank. VBIOS Update...
-
Page 33: Important Safety Instructions
XMC-G460 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. - Page 34 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...
-
Page 35: Getting Service
Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:... - Page 36 Address: 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross, JP Nagar Phase I, Bangalore - 560078, India Tel: +91-80-65605817 Fax: +91-80-22443548 Email: india@adlinktech.com...
