KSK 150 FC
Version 7.1
G-30-1158-en
• Remove the protective cover from the colposcope body. The protective
cover prevents dust from entering the colposcope while no binocular tube
is attached.

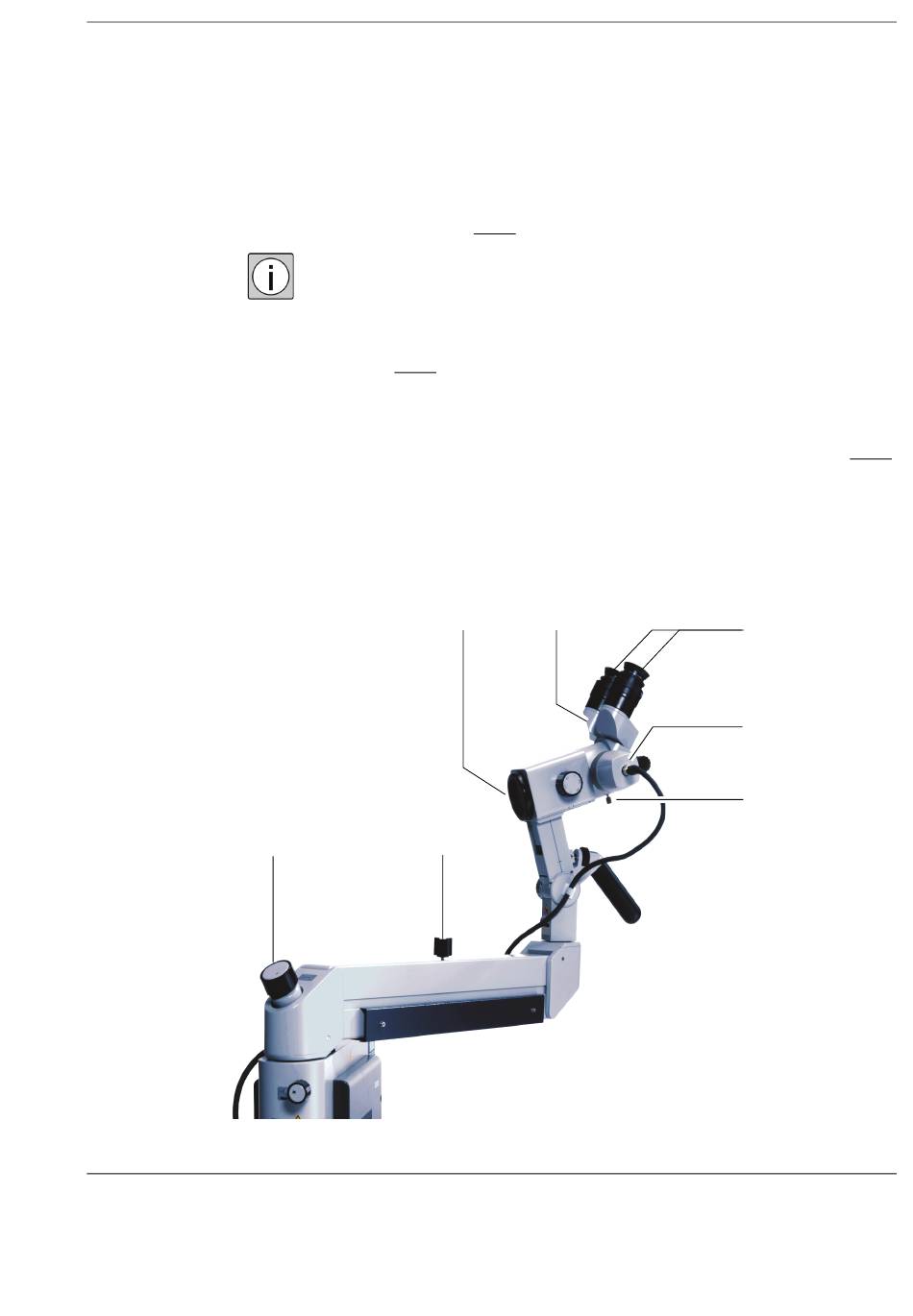

• Place the binocular tube (2) on the colposcope body and tighten the se-
curing screw (5) firmly.
ZEISS Service can install the video accessories between the microscope body
and the binocular tube for you: For example, the Splitter 20 can be installed
with the 1Chip HD Camera (4). The Splitter 20 is mounted on the microscope
body and secured with a securing screw the same way as the binocular tube.
Then place the binocular tube (2) on the Splitter 20 and tighten the securing
screw (5) firmly.
• Insert widefield eyepieces (3) as far as they will go in the mounts provided
on the binocular tube.
• Screw the objective lens (1) into the colposcope body and tighten it firmly.
• Loosen adjustment knob (6) again and adjust the degree of friction as re-
quired.
7 6
1 2
Preparations for use
3
4
5
Page 43
