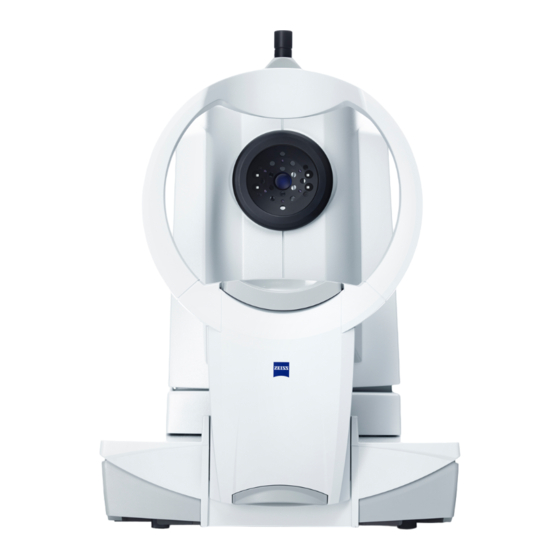

Zeiss IOLMaster 700 Service Manual

Hide thumbs Also See for IOLMaster 700:
Table of Contents

Advertisement

Quick Links

®

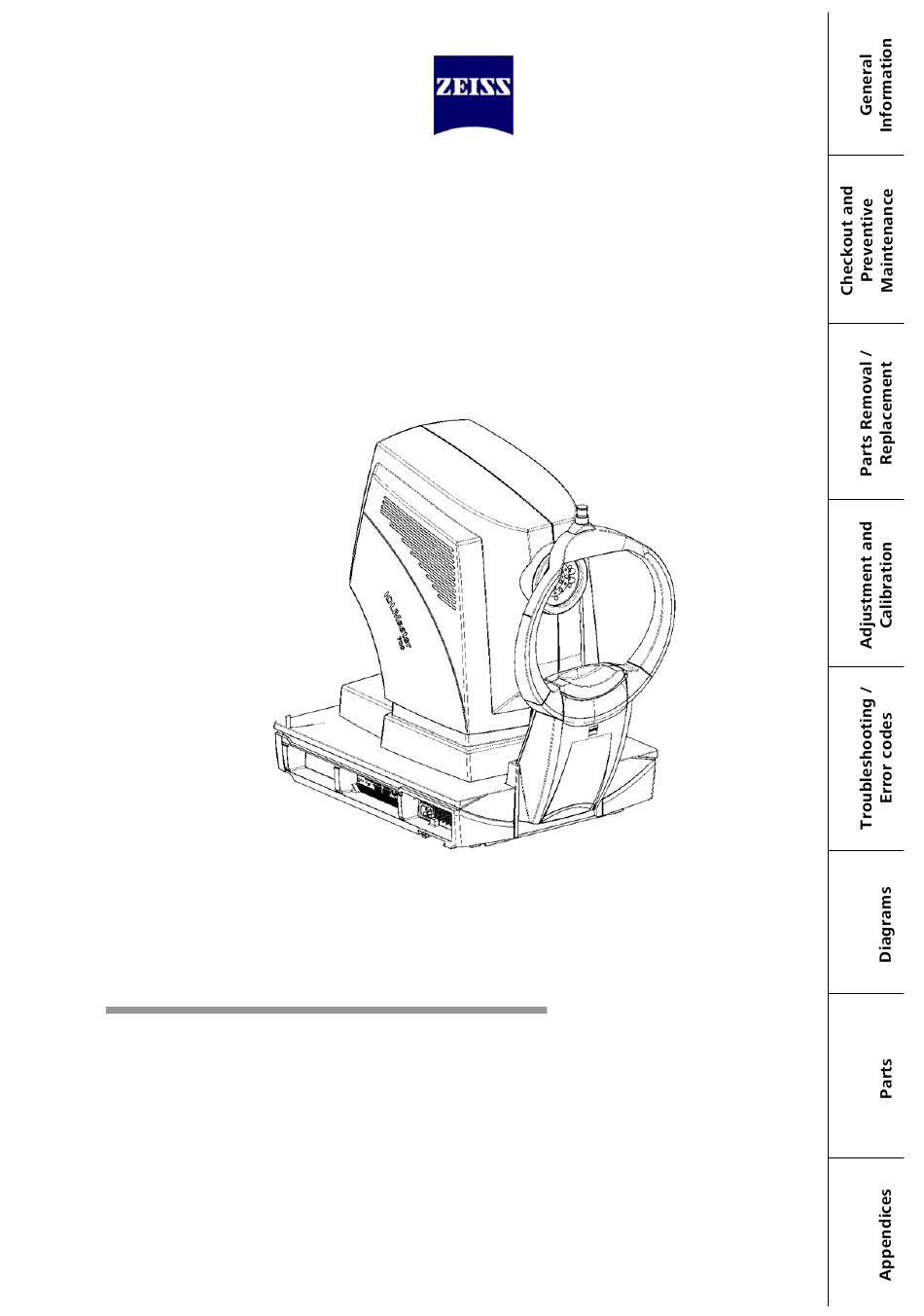

IOLMaster
700
Service Manual
Confidential and Proprietary
SM-30-4060
Version 03, 2014-10-13
Order No. 2075-325

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOLMaster 700 and is the answer not in the manual?

Questions and answers

Ernesto Cordero JR
July 23, 2025

hi my IOL master 700 is he is giving me this error1007 (0x250B) and it won't let me calibrate it

0
michelle
June 13, 2025

add new IOL

0

Related Manuals for Zeiss IOLMaster 700

Summary of Contents for Zeiss IOLMaster 700

  • Page 1 ® IOLMaster Service Manual Confidential and Proprietary SM-30-4060 Version 03, 2014-10-13 Order No. 2075-325...
  • Page 2 IOLMaster COPYRIGHT NOTE The information contained in this document is subject to the copyright of Carl Zeiss Meditec AG and must not be reproduced either in whole or in part without prior written consent by Carl Zeiss Meditec AG. The content of this document is intended to provide the user with detailed information required for the repair and maintenance of the delivered system and for spare part orders.
  • Page 3 ® IOLMaster REVISION CONTROL LIST ® Document: Service Manual „IOLMaster 700” Document No.: SM-30-4060 Order No.: 2075-325 Date of issue: Version 03, 2014-10-13 Section Version Date of issue 1 – General Information 2014-10-13 2 – Checkout and Preventive Maintenance 2014-10-13 3 –...
  • Page 4 ® IOLMaster Service Manual SM-30-4060 Confidential and Proprietary Order No. 2075-325 Version 03, 2014-10-13...

  • Page 5: Table Of Contents

    Section 1 – General Information 1.1 Update information ....................2 1.2 About This Manual....................3 1.2.1 General Notes ........................3 1.2.2 Conventions .......................... 4 1.3 Service bulletins ....................... 4 ® 1.4 IOLMaster 700 Service Strategy ................5 1.4.1 General Safety Instructions ....................5 1.4.2 Laser Class ..........................

  • Page 6: Update Information

    ® General Information IOLMaster 1.1 Update information Version Comments 2013-07-24 First issue 2014-08-15 Second issue (Gate 2) 2014-10-13 Third issue (Gate 3/4) Notes Service Manual SM-30-4060 Confidential and Proprietary Order No. 2075-325 1 - 2 Version 03, 2014-10-13...

  • Page 7: About This Manual

    This is the service strategy used in field service, and presented in ZEISS training classes. Level 2 (workshop repair) include procedures which are not possible on-site or where on-site repair was not successful.

  • Page 8: Conventions

    Service bulletins are confidential and proprietary documents for the sole use of personnel employed by ZEISS. As a ZEISS employee, subsidiary or distributor you are required to handle your service bulletins as appropriate for proprietary and confidential information. Service Manual...

  • Page 9: General Safety Instructions

    The service strategy for IOLMaster 700 envisages that field service must only be performed by appropriately trained technicians authorized by ZEISS. These activities are described in this service manual and are dealt with in detail during the service training for this product.

  • Page 10: Disposal Of The Product Within The Eu

    ® General Information IOLMaster 1.5 Disposal of the product within the EU EU directives and national regulations currently in force at the time of marketing prohibit the disposal of the product specified on the delivery note in domestic waste or by municipal waste disposal companies.
  • Page 11 1. Measuring protective ground resistance ................4 2. Measuring the leakage current ..................4 3. Measuring the insulation resistance ................... 4 2.3.3 Reading points ........................5 IOLMaster 700 Checklist & Maintenance Report ..........SM-30-4060-A01 SM-30-4060 Service Manual Confidential and Proprietary...
  • Page 12 ® Checkout and Preventive Maintenance IOLMaster Update information Version Comments 2013-07-24 First issue 2014-08-15 Second issue (Gate 2) 2014-10-13 Third issue (Gate 3/4) Notes Service Manual SM-30-4060 Confidential and Proprietary Order No.2075-325 2 - 2 Version 03, 2014-10-13...
  • Page 13 Service Manual SM-30-8005-116 (Medical Electrical Equipment in Field Service) This Manual is for all Carl Zeiss Meditec AG medical products applicable and equates the latest international rules for electrical safety. Additionally, this service manual also describes the most important procedures inclusive instrument specific procedures e.g.
  • Page 14 ® Checkout and Preventive Maintenance IOLMaster Procedure: 1. Measuring protective ground resistance A maximum test voltage of 24V and a test current of 10A AC are recommended for measurement. 1) Connect the device with its connecting cable to the power socket of the safety tester (e.g.
  • Page 15 ® IOLMaster Checkout and Preventive Maintenance 2.3.3 Reading points According to Service Manual SM-30-8005-116 following tests are necessary:  Measuring of protective earth impedance  Measuring of leakage currents  Measuring of insulation resistance For all measurements and tests during the electrical safety check please use the two points according Fig.
  • Page 17 Section 3 – Parts Removal Replacement 3.1 Update information ..................... 2 3.2 Measurement Head ....................3 3.2.1 Measurement Head Side Covers ..................3 3.2.2 Measurement Head (complete) ..................5 3.2.3 MH Cable ........................8 3.2.4 Measurement Head Cooling Fan ..................9 3.2.5 Dust Covers ........................

  • Page 18: Update Information

    Parts Removal Replacement IOLMaster 700 Update information Version Comments 2013-07-24 First issue 2014-05-15 Second issue (GATE 2) 2014-10-13 Third issue (Gate 3/4) Notes Service Manual SM-30-4060 Confidential and Proprietary Order No. 2075-325 3 - 2 Version 03, 2014-10-13...

  • Page 19: Measurement Head

    IOLMaster 700 Parts Removal Replacement 3.2 Measurement Head 3.2.1 Measurement Head Side Covers Precondition:  The instrument has been shut down and switched off. Procedure: 1) Remove the front cover retaining ring by turning in an anticlockwise direction. See Fig.
  • Page 20 Parts Removal Replacement IOLMaster 700 3) There are two variations of fasteners installed in the side cover. Old – only a quarter turn, anticlockwise See Fig. 3 New – several turns anticlockwise See Fig. 4 Open Closed Fig. 3 - Old fastener, quarter turn...
  • Page 21 IOLMaster 700 Parts Removal Replacement 3.2.2 Measurement Head (complete) Precondition: The cross stage covers have been removed. See section 3.4.2, page Procedure: 1) Disconnect the MH cables at main control Joystick Proximity Power PCB (USB, power) and at interferometer (PCIe) a slotted screwdriver is required.
  • Page 22 Parts Removal Replacement IOLMaster 700 10) Prepare a grippy, scratch free mat on the table (red ESD mat is suitable). 11) Remove the two screws (2.5 mm hex key with ball end) holding the spindle nut to measurement head frame.
  • Page 23 IOLMaster 700 Parts Removal Replacement 6) Using the two screws (2.5mm hex key with ball end) attach the spindle nut. To Parallel alignment tighten use a hex key angle (Fig. 15). Ensure that the joystick can be used to move the measurement head up and down without resistance.

  • Page 24: Mh Cable

    Parts Removal Replacement IOLMaster 700 3.2.3 MH Cable Precondition:  The computer module has been removed (it is not necessary to remove the cover). See section 3.3.2, page  The measurement head covers have been removed. See section 3.2.1, page Procedure: 1) Using the joystick raise the measurement head (clockwise) to provide enough working room.

  • Page 25: Measurement Head Cooling Fan

    IOLMaster 700 Parts Removal Replacement 3.2.4 Measurement Head Cooling Fan Precondition:  The measurement head side covers have been removed. See section 3.2.1, page Procedure: 1) Disconnect the power cable of the cooling fan and remove the side dust cover (Fig.

  • Page 26: Dust Covers

    Parts Removal Replacement IOLMaster 700 3.2.5 Dust Covers Precondition:  The measurement head side covers have been removed. See section 3.2.1, page Procedure: Screw 1) Remove the front dust cover 2) Disconnect the power cable of the cooling fan and remove the side dust cover (Fig.

  • Page 27: Lens Drive (Pcb & Cable)

    Precondition:  Shut down and switch off the instrument  The measurement head side covers have been removed from the IOLMaster 700. See section 3.2.1, page 3  The side or top dust cover has been removed. See section 3.2.5, page...

  • Page 28: Shutter (Pcb & Cable)

    3.2.7 Shutter (PCB & Cable) Precondition:  Shut down and switch off the instrument  The measurement head side covers have been removed from the IOLMaster 700. See section 3.2.1, page 3  The side dust cover has been removed. See section 3.2.5, page...

  • Page 29: Computer Base

    IOLMaster 700 Parts Removal Replacement 3.3 Computer Base 3.3.1 Computer Base Covers Precondition:  The instrument has been shut down and all cables have been removed. Procedure: 1) Remove the two screws (Torx 10) from the cover (operator side) of the computer base.

  • Page 30: Computer Module & Cover Removal

    Parts Removal Replacement IOLMaster 700 3.3.2 Computer Module & Cover Removal Precondition:  The computer base covers have been removed. See section 3.3.1, page Procedure: Screws 1) Remove the two screws (Torx 20) securing the computer module to the computer base.

  • Page 31: Computer Module Replacement

    3.3.2, page 2) It may be necessary to change the boot order. 3) Using the IOLMaster 700 service tool carry out standard use case S401. 4) Create a hard drive backup. See Backup. 5) Perform a system checkout in accordance with the instrument checklist.

  • Page 32: Power Supply

    Parts Removal Replacement IOLMaster 700 3.3.4 Power Supply Precondition:  The computer module and cover have been removed. See section 3.3.2, page Procedure: 1) Stand the computer module on its side and while holding the power supply remove the two screws (Torx 10) securing it.

  • Page 33: Cmos Battery

    IOLMaster 700 Parts Removal Replacement 3.3.5 CMOS Battery Note The CMOS battery (also referred to as BIOS battery) typically lasts between 2 – 10 years (dependent on operating conditions and usage). Therefore it is recommended that the CMOS battery be replaced every 5 years.

  • Page 34: Computer Module Cooling Fan

    Parts Removal Replacement IOLMaster 700 3.3.6 Computer Module Cooling Fan Precondition:  The computer module and cover have been removed. See section 3.3.2, page Procedure: Fans 1) Disconnect the appropriate cooling fan cable at CIF (cut zip tie as appropriate).

  • Page 35: Hard Drives (Hdd And/Or Ssd)

    IOLMaster 700 Parts Removal Replacement 3.3.8 Hard drives (HDD and/or SSD) Precondition:  If possible, a database backup has been performed. See database backup.  The computer module and cover have been removed. See section 3.3.2, page Procedure: SATA 1) Disconnect the SATA cable connector from Rubber mounting the appropriate drive.

  • Page 36: Cif (Central Interface)

    Parts Removal Replacement IOLMaster 700 3.3.10 CIF (Central Interface) Precondition:  The computer module and cover have been removed. See section 3.3.2, page  The PCIe Adapter PCB has been removed. See section 3.3.9, page Procedure: 1) Disconnect all cables excluding the two screwed into place (power supply cabling).

  • Page 37: Instrument Base / Cross Stage

    IOLMaster 700 Parts Removal Replacement 3.4 Instrument Base / Cross Stage 3.4.1 Brake Cap Precondition:  The measurement head covers have been removed. See section 3.2.1, page Small Plastic Cap Screw Procedure: 1) Using a fingernail or small slotted screwdriver remove the small plastic cap from the measurement head brake cap.

  • Page 38: Joystick

    Parts Removal Replacement IOLMaster 700 3.4.3 Joystick Precondition:  The cross stage covers have been removed. See section 3.4.2, page Procedure: 1) Loosen the two cable clips (Torx 10) and disconnect the joystick cable from the main Holding control PCB.

  • Page 39: Proximity Switch (Os/Od Detector)

    IOLMaster 700 Parts Removal Replacement 3.4.4 Proximity Switch (OS/OD detector) Precondition:  The cross stage covers have been removed. See section 3.4.2, page Procedure: 1) Loosen the two cable clips (Torx 10) and disconnect the proximity switch cable from the main control PCB.

  • Page 40: X-Y Guideway, Gear Rack And Gears With Rollers

    Parts Removal Replacement IOLMaster 700 3.4.5 X-Y Guideway, Gear Rack and Gears with Rollers Precondition:  The cross stage covers have been removed. See section 3.4.2, page Procedure: 1) Remove the four securing screws (Torx 15) by positioning the cross stage such that the screws can be accessed through the access aperture.

  • Page 41: Cross Stage Brake

    IOLMaster 700 Parts Removal Replacement 3.4.6 Cross Stage Brake Precondition:  The cross stage covers have been removed. See section 3.4.2, page Procedure: 1) Remove the two screws (Torx 10) holding the cross stage brake in place and remove it.

  • Page 42: Pi (Patient Interface)

    3.5 PI (Patient Interface) 3.5.1 PI Removal Precondition:  The IOLMaster 700 has been shut down and the power cable has been removed. Procedure: Set screws 1) Place the instrument so that the PI hangs over the edge of the table providing access to the two set screws.

  • Page 43: Pi Replacement

    IOLMaster 700 Parts Removal Replacement 3.5.2 PI Replacement Precondition:  The PI has been removed. See section 3.5.1, page Screws Note The test eye from the old PI must be installed on the new PI. Procedure: 1) Remove the four screws (Torx 10).

  • Page 44: Pi Cable

    Parts Removal Replacement IOLMaster 700 3.5.3 PI Cable Precondition:  The computer module has been removed (it is not necessary to remove the cover). See section 3.3.2, page  The PI has been removed. See section 3.5.1, page Procedure: 1) Remove the old PI cable (the cable holders must be opened –...
  • Page 45 Section 4 – Adjustment and Calibration 4.1 Update information ..................... 2 4.2 Service Mode ....................... 3 4.2.1 Entering Service Mode...................... 3 4.3 Service Tool ......................5 4.3.1 Running the Service Tool ....................5 4.3.2 Standard use-cases ......................5 S101 – Display device info ....................6 S105 –...

  • Page 46: Update Information

    Adjustment and Calibration IOLMaster 700 4.1 Update information Version Comments 2014-05-15 First issue 2014-08-15 Second issue (GATE 2) 2014-10-13 Third issue (GATE 3/4) Notes Service Manual SM-30-4060 Confidential and Proprietary Order No. 2075-325 4 - 2 Version 03, 2014-10-13...

  • Page 47: Service Mode

    Adjustment and Calibration 4.2 Service Mode The IOLMaster 700 has a service mode which can be accessed using the Windows user account: CZMService. The passwords must not be distributed to any non-authorised person. The usage of the service mode is restricted to certified field service engineers (FSEs), trained from an authorised ZEISS trainer.
  • Page 48 Adjustment and Calibration IOLMaster 700 Method 3 (keyboard required) During start-up (after BIOS initialisation) press and hold the keyboard “Shift”. The Windows user login will be displayed. Select user “CZMService”. Fig. 4 – Windows user CZMService Enter the related password.

  • Page 49: Service Tool

    IOLMaster 700 Adjustment and Calibration 4.3 Service Tool To carry out IOLMaster 700 service activities a separate service tool must be used. The service tool can only be executed from the service mode. The passwords must not be distributed to any non-authorised person.

  • Page 50: S101 - Display Device Info

    IOLMaster 700 S101 – Display device info Description: Retrieves and displays the following device information: – Serial number of IOLMaster 700 – Serial numbers of hardware components (Measurement head, Laser, PC) – Operating hours of measurement head and laser – Firmware version measurement head –...
  • Page 51 Back' to go back to the use case selection view. Instructions: (1) Wait, till the bootloader-program indicates that the firmware-update is complete and the IOLMaster 700 has completed the measurement head reboot. (2) Exit the bootloader-program. (3) Click 'Finish' button (Returns to the use-case selection view).

  • Page 52: S106 - Update Pi Firmware

    Fig. 12 – S106 – Update PI firmware (2) Instructions: (1) Wait, till the bootloader-program indicates that the firmware-update is complete and the IOLMaster 700 has completed the PI reboot. (2) Exit the bootloader-program. (3) Click 'Finish' button (Returns to the use-case selection view).

  • Page 53: S301 - Exchange Complete Measurement Head

    IOLMaster 700 Adjustment and Calibration S301 – Exchange complete measurement head Description: Use this function after replacement of the complete measurement head. The use-case covers the following tasks: (1) Retrieve device-settings from both measurement head and local files. (2) Join both sets of device-settings:...

  • Page 54: S401 - Exchange Complete Computer Base With Os & Application Pre-Installed

    The factory-adjusted device-settings must be verified against the local test eye. For this reason, it’s recommended to close the Service Tool, restart the device and complete a calibration check using the IOLMaster 700 application! S401 – Exchange complete computer base with OS & application pre-installed...
  • Page 55 IOLMaster 700 Adjustment and Calibration Instructions: (Step 1) Prerequisites: – The old PC has been replaced by a new one. – Either: the old hard drive has been installed in the new computer base the new hard drive must be properly prepared (Acronis-image installed, user- data restored, etc.)

  • Page 56: S705 - Adjust Hardware State From Control File

    Adjustment and Calibration IOLMaster 700 S705 – Adjust hardware state from control file Description: Use this function to put the measurement head and the PI into any desired state. The desired hardware state can be specified in a custom 'control-file'.

  • Page 57: Calibration Use-Cases

    IOLMaster 700 Adjustment and Calibration Currently only 5 pre-configured control-files are available, namely: clean_optics_part1.control - Sets lens position for cleaning clean_optics_part2.control - Sets lens position for cleaning testeye_show.control - Moves the Test eye out of the PI (eg. for cleaning) testeye_hide.control...

  • Page 58: Adjustments / Alignments Of The Measuring Head

    The device must be switched on for optics cleaning and the service tool is required to move the lenses and the test eye into cleaning position. Use Carl Zeiss cleaning mixture “L” for cleaning only. This cleaning agent is approved. Be careful while cleaning components near painted surfaces. Use small quantities at one time –...
  • Page 59 IOLMaster 700 Adjustment and Calibration Cleaning the Test Eye Move the Test eye out of the PI with the service tool. Refer to 4.3.2, page Clean the test eye. Return the Test eye into the PI with the service tool.
  • Page 60 Adjustment and Calibration IOLMaster 700 Overview Scanner mirrors (Fig. 32, page Duplet lens (Fig. 33, page Lens 1 (Fig. 34, page Lens 2 (Fig. 35, page Delay prism (Fig. 36, page Achromatic lens (Fig. 40, page Measuring lens (Fig. 42, page Beam splitter 2 (Fig.
  • Page 61 IOLMaster 700 Adjustment and Calibration  Scanner mirror horizontal and vertical  Duplet lens Fig. 33 - Duplet lens Fig. 32 - Scanner mirrors  Lens 1 Fig. 34 – Lens 1 a) front side b) back side  Lens 2 b) back side Fig.

  • Page 62: Laser Power Sensor

    Adjustment and Calibration IOLMaster 700  Delay prism Fig. 36 - Delay prism  Laser beam splitter Fig. 37 - Laser beam splitter a) Top side b) Bottom side   Laser power sensor Laser collimator Fig. 39 - Laser collimator Fig.
  • Page 63 IOLMaster 700 Adjustment and Calibration  Achromatic lens Fig. 40 - Achromatic lens a) Top side b) Bottom side  Beam splitter 2 Fig. 41 - Beam splitter 2 a) Top side b) Bottom side  Measuring lens  Fixation mirror Fig.
  • Page 64 Adjustment and Calibration IOLMaster 700 4.4.2 Paddle Polarisation The Paddle Polarisation procedure allows accurate adjustment of the paddle position to ensure maximum SNR during measurement. The paddle polarisation tool will be automatically removed after restarting the instrument, therefore it must be installed each time the procedure is performed.
  • Page 65 IOLMaster 700 Adjustment and Calibration Uncheck “Open Readme File” and press “Finish”. Fig. 47 – Open Readme File Run (double click) the LVRTE2010_64bitstd.exe. Fig. 48 – Run the LVRTE2010_64bitstd.exe Press “OK” (self-extracting archive). Press “Unzip”. Once successfully unzipped, press “OK”.
  • Page 66 Adjustment and Calibration IOLMaster 700 Using the Windows taskbar, click “NI LabVIEW Run-Time Engine 2010 (64-bit)”. Press “Next >>”, press “Next >>”, press “Next >>”. Fig. 50 – Click “NI LabVIEW Run-Time Engine 2010 (64-bit)” Uncheck “Request the installer to…” and press “Next >>”.
  • Page 67 IOLMaster 700 Adjustment and Calibration Run (double click) the StartPolarizationAdjustTool.bat. Be patient as the software is copied and started. Fig. 53 – Run the StartPolarizationAdjustTool.bat A new window will open, ensure the chinrest is free and press “Continue”. The software/hardware takes some time to prepare.
  • Page 68 As described above accurately centre the Do not bump/knock/disturb the middle reflection from the test eye within the IOLMaster 700 (or table) while the green circle (from cross hair) displayed within program is running – this can lead to the software.
  • Page 69 Fig. 58 – Run the StoreDeviceSettings.bat The new settings must be saved to the measurement head refer to appropriate service use case. Navigate to D:\RawCalibrationData\SNRdata Email the “.bin” file to support.ophthalmology@zeiss.com. Perform a system checkout in accordance with the instrument checklist. SM-30-4060...
  • Page 70 Adjustment and Calibration IOLMaster 700 4.4.3 Laser Power Sensor Precondition:  The left measurement head cover has been removed. See section 3.2.1.  The instrument is ON. Procedure: Enter the service mode See section 4.2.1, page Using the service tool, run standard use-case S705.

  • Page 71: Adjustments / Alignments Of The Computer Base

    IOLMaster 700 Adjustment and Calibration 4.5 Adjustments / Alignments of the Computer Base 4.5.1 HDD Structure (Databases, log files, OS etc.) Hardware Disk Label Location Connection BIOS Port SSD 32GB System (C:\) Computer Base SATA HDD 500GB Data (D:\) Computer Base SATA...
  • Page 72 Adjustment and Calibration IOLMaster 700 BACKUP (mSATA SSD 32 GB) Bootable drive containing the ‘Acronis True Image Personal’ application for disk backup/recovery. Paddle Polarisation tool files  Y:\PolasizationToolFiles\ (See section 4.4.2, page 20 for further details). Config files (backed up after using the Service Tool): ...

  • Page 73: File Based Write Filter (Fbwf)

    Refer to section 4.2.1, page 3. Click ‘WriteProtectionOff’ shortcut for disabling the write filter (Fig. 61). Reboot IOLMaster 700. After rebooting the write filter is permanently disabled. WriteProtectionOff Attention! After finishing the service case the write protection filter must be set Fig.

  • Page 74: Maintenance Function

    Adjustment and Calibration IOLMaster 700 4.5.3 Maintenance Function The maintenance function of the IOLMaster 700 application includes the following important features: Configuration Wizard Data backup Update Log files Fig. 64 - Maintenance Configuration Wizard The configuration wizard guides the user in a few steps through the device configuration process.
  • Page 75 IOLMaster 700 Adjustment and Calibration Update This wizard guides the user through the individual software update steps. Alternatively when removable media is connected and the instrument restarted, the updater automatically runs. Log files The Export button opens a window for selecting the folder for backing up log files. After selecting the desired folder the window must be closed by tapping the Select button and the files will be exported.

  • Page 76: Deleting Corrupt Databases

    IOLMaster 700 4.5.4 Deleting corrupt databases The IOLMaster 700 database management is handled by Microsoft SQL Server. Microsoft SQL Server has the ability to repair and restore damaged/corrupt databases. However, in some cases such as instrument power loss or incorrect shutdown, the database/s can become corrupted to a point that it can no longer be repaired or restored, resulting in data loss.
  • Page 77 IOLMaster 700 Adjustment and Calibration Procedure (user management):  This procedure will attempt to restore a backup of the user management database. Begin by running “DeleteUserManagementDatabaseFile.bat”. Restart the instrument and check whether the application software recovered from the error. Fig. 67 – Simple user management DB removal Procedure (user management complete): ...

  • Page 78: Teleservice Offline

    Adjustment and Calibration IOLMaster 700 4.5.5 Teleservice Offline The Teleservice offline function is used to create a ‘Service Package’ containing service-relevant data (log files, crash reports, configuration settings). It is possible for the user to create a service package without assistance from a field service engineer (FSE).
  • Page 79 IOLMaster 700 Adjustment and Calibration Once complete, click “Ready” Fig. 72 - Service Package creation complete SM-30-4060 Service Manual Confidential and Proprietary Version 03, 2014-10-13 4 - 35 Order No. 2075-325...

  • Page 80: Backup

    Adjustment and Calibration IOLMaster 700 4.5.6 Backup Procedure: Enter the BIOS using the BIOS password (this can be achieved by pressing the ‘Esc’ or ‘Del’ key during startup). Navigate to the ‘Save & Exit’ settings and select the service hard drive port ‘P2’ as boot partition (Fig.
  • Page 81 IOLMaster 700 Adjustment and Calibration Click ‘Browse’ (Fig. 76). Fig. 76 - Browse for backup location Navigate to the service hard drive (BACKUP) and click ‘Create new folder’ (Fig. 77). Fig. 77 - Create new folder on partition C: Specify the name for the new folder (e.g.
  • Page 82 Adjustment and Calibration IOLMaster 700 Click ‘Generate name’ and press ‘OK’ (Fig. Caution! The service hard drive (BACKUP) is limited to 32GB, therefore only 2-3 backup images can be created. To create a new backup image an older image may need deleting.
  • Page 83 IOLMaster 700 Adjustment and Calibration During the backup process select ‘Shut down the computer when backup is completed’ checkbox. This will ensure the instrument can be correctly restarted (Fig. 82). Fig. 82 – Shut down after backup is complete In some cases the service hard drive (BACKUP) is full (Fig.

  • Page 84: Recovery

    Adjustment and Calibration IOLMaster 700 4.5.7 Recovery Enter the BIOS using the BIOS password (this can be achieved by pressing the ‘Esc’ key during startup). Navigate to the ‘Save & Exit’ settings and select the service hard drive port ‘P2’ as boot partition (Fig.
  • Page 85 IOLMaster 700 Adjustment and Calibration Click ‘Disk Recovery’ (Fig. 87). Fig. 87 – Disk Recovery Select a backup and click ‘Next’ (Fig. 88). Fig. 88 – Archive Selection Select ‘Recover whole disk and partitions’ and click ‘Next’(Fig. 89). Fig. 89 – Recovery Method...
  • Page 86 Adjustment and Calibration IOLMaster 700 Items for Recovery - Select ‘Disk 1 (System)’ and press ‘Next’ (Fig. 90). Fig. 90 - Items For Recovery Destination for Recovery – Select the correct location based on which disks are being recovered and press Next. Example: Disk 1 ...
  • Page 87 IOLMaster 700 Adjustment and Calibration Click ‘Proceed’. Fig. 93 – Summary During the recover process click ‘Shut down the computer when recovery is completed’ checkbox. This will ensure the IOLMaster 700 can be correctly restarted (Fig. 94). Fig. 94 – Shut down after recovery...
  • Page 88 Adjustment and Calibration IOLMaster 700 4.5.8 Printer Installation Begin by ensuring that the IOLMaster 700 is set to the correct IP address range as the printer. Under ‘Settings’, navigate to the ‘Network’ page. Click ‘Configure…’ Fig. 95 – Navigate to the ‘Network If necessary ‘DHCP’...
  • Page 89 IOLMaster 700 Adjustment and Calibration Select ‘Add printer’. Fig. 98 – Select Add printer Set the ‘Printer name’ and ‘Description’. Note: This is not critical for the setup and is only for information purposes. Select ‘Next’. Fig. 99 – Fill the mask If peer-to-peer connection set the ‘Printer...
  • Page 90 Select ‘Test’ – a Green tick should be displayed. If a Red cross is displayed – something is wrong with either the IOLMaster 700 network configuration (refer to Steps 1) to 6)) OR the printer IP address. Select ‘Next’. Fig. 102 - Set the IP address Select the correct ‘Paper size’...
  • Page 91 IOLMaster 700 Adjustment and Calibration The ‘Summary’ should be correct, select ‘Finish’. Fig. 104 - Correct/confirm the Summary Select ‘Set as default’. Fig. 105 - Select the printer It is necessary to set the printer properties so that the orientation is ‘Portrait’.
  • Page 93 Section 5 – Troubleshooting Error Codes 5.1 Update information ..................... 2 5.2 Error codes ......................3 5.2.1 HAL Error Codes ....................... 3 5.2.2 Camera Error Codes ......................5 5.2.3 DAQ Board Error Codes ....................7 5.3 Troubleshooting ....................8 5.4 Tool List ....................... 9 SM-30-4060 Service Manual Confidential and Proprietary...

  • Page 94: Update Information

    Troubleshooting Error Codes IOLMaster 700 5.1 Update information Version Comments 2013-07-24 First issue - MOMENTARILY NO DOCUMENTATION AVAILABLE 2014-05-15 Second issue (GATE 2) 2014-10-13 Third issue (GATE 3/4) Notes Service Manual SM-30-4060 Confidential and Proprietary Order No. 2075-325 5 - 2...

  • Page 95: Error Codes

    InnerException of the HalExcep1tion. Differences between the local- and the Retrieve device information with use-case head- device settings. S101 of the IOLMaster 700 Service Tool. A error in the configuration-settings has Differences between the device settings of 1003 been detected, e.g. a mandatory...
  • Page 96 Troubleshooting Error Codes IOLMaster 700 An error occured during uploading a 1009 scanpattern-file into the device-head. A specific scanpattern expected to be loaded onto the device-head 1010 is either not present there or is out of date. A CsaPixyException has been catched and - Change the PI or repair the connection rethrown as HalException.

  • Page 97: Camera Error Codes

    IOLMaster 700 Troubleshooting Error Codes 5.2.2 Camera Error Codes Error Code Beschreibung 2000 An unexpected / unknown error occurred 2001 The device is not initialized The set camera timing method wasn't 2002 called (default camera parameter are set) 2003 The camera handle is invalid...
  • Page 98 Troubleshooting Error Codes IOLMaster 700 Invalid operation while getting a camera 2030 parameter A general timeout occurred. A process couldn't be terminated or succeded 2031 within the specfied period Device Not Available: The initialized 2032 device was disconnected A camera was removed. This is...

  • Page 99: Daq Board Error Codes

    IOLMaster 700 Troubleshooting Error Codes 5.2.3 DAQ Board Error Codes Error code Error description Error correction Live OCT scan background scan was 3000 aborted 3001 Measurement OCT scan was aborted 3002 An unexpected error was thrown. 3003 The DAQ board is not initialized.

  • Page 100: Troubleshooting

    Troubleshooting Error Codes IOLMaster 700 5.3 Troubleshooting Problem Description Troubleshooting Mapping from external hard drive causes See workaround batch file IOLMaster not to start PI travels up from alone The customer has a mouse attached – and right clicks. Service Manual...

  • Page 101: Tool List

    IOLMaster 700 Troubleshooting Error Codes 5.4 Tool List Tool description Order Number Use of Tool IOLMaster 700 Service Tool Service activities Torx Set (6, 8, 10, 15, 20) – Complete Minimum blade length: 100 mm Hex Set (2 mm) Measurement Head...
  • Page 102 Troubleshooting Error Codes IOLMaster 700 Tool description Order Number Use of Tool Alpha Swab 000000-0433-973 Optics Cleaning Cotton Swab 000000-0500-895 Cleaning Mixture “L” 000000-1526-414 Optics Cleaning Air blower with valve 000000-0027-690 Optics Cleaning Digital Voltmeter Laser power sensor USB Keyboard (mini touchpad...
  • Page 103 Section 6 – Diagrams MOMENTARILY NO DOCUMENTATION AVAILABLE SM-30-4060 Service Manual Confidential and Proprietary Version 03, 2014-10-13 6 - 1 Order No. 2075-325...
  • Page 105 Section 7 - Parts Basic device IOL Master700 ................Bond-cable operator interface .
  • Page 106 SM-30-4060 IOLMaster 700 IOLMaster 700 Item Order no. Designation Page Basic device IOL Master700 ~ 000000-2061-235 Bond-cable operator interface ~ 000000-2061-400 Monitor HKFTPM15P Service Manual Confidential and Proprietary SM-30-4060 Order No. 2075-325 Version 03, 2014-10-13...
  • Page 107 SM-30-4060 IOLMaster 700 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 Order No. 2075-325...
  • Page 108 Basic device IOL Master700 IOLMaster 700 Item Order no. Designation Page base IOLMaster 700 2 000000-1983-917 device head IOL Master 700 3 000000-1978-571 side panel left, compl. 4 000000-2118-125 Brake Cap 5 000000-2074-285 side cover 6 000000-2118-127 Cross Stage Covers 7 000000-1978-554 side panel right, compl.
  • Page 109 Basic device IOL Master700 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 Order No. 2075-325...
  • Page 110 IOLMaster 700 IOLMaster 700 Item Order no. Designation Page instrument base K-IBIS DIN 2093-A 8 GR1 disc spring ISO 14580-M 4 x 8-A2-70 4 000000-1834-562 CSA-PI with foreheadrest 5 000000-2035-808 computer IOL Master 700 6 000000-2118-126 Computer Base Covers...
  • Page 111 IOLMaster 700 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 Order No. 2075-325...
  • Page 112 K-IBIS IOLMaster 700 Item Order no. Designation Page 1 000000-1304-988 XY guideway, compl. 2 000000-1321-521 Break Non-Myd Camera CS ISO 14579 - M 3 x 8 -A2-70 Square Cone washer M3 5 000000-0531-117 proximity switch ind. NBN4-F29C-Y190844 ISO 10642-M 3x10-A2-70 with Torx 7 000000-2118-129 Gear Rack &...
  • Page 113 K-IBIS IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 Order No. 2075-325...
  • Page 114 IOL Master 700 000000-2035-808 IOLMaster 700 Item Order no. Designation Page 1 000000-2118-135 PC Cooling Fan 2 000000-2118-150 Power Supply like ISO 10642-M 3 x 4 -A2-70 Torx 4 000000-2049-724 Motherboard IOL Master 700 complete ISO 14580-M 3 x 6-A2-70 Dist Clip Pa_na H2xØ4.0 1xclipsen...
  • Page 115 IOL Master 700 000000-2035-808 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 7-11 Order No. 2075-325...
  • Page 116 Motherboard IOL Master 700 complete 000000-2049-724 IOLMaster 700 Item Order no. Designation Page 1 000000-0571-750 Battery Li 3V_230mAh Ø20x3.2mm Service Manual Confidential and Proprietary SM-30-4060 Order No. 2075-325 7-12 Version 03, 2014-10-13...
  • Page 117 Motherboard IOL Master 700 complete 000000-2049-724 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 7-13 Order No. 2075-325...
  • Page 118 PCBA IBIS-CIF 000000-2042-468 IOLMaster 700 NO PARTS LIST AVAILABLE Service Manual Confidential and Proprietary SM-30-4060 Order No. 2075-325 7-14 Version 03, 2014-10-13...
  • Page 119 PCBA IBIS-CIF 000000-2042-468 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 7-15 Order No. 2075-325...
  • Page 120 IOL Master 700 000000-1983-917 IOLMaster 700 Item Order no. Designation Page spacer bolt des.B L 40 M3 St_Zn Square Cone washer M3 ISO 14579 - M 3 x 8 -A2-70 4 000000-2118-139 Shutter 5 000000-2118-131 Lens Drive ISO 14579 - M 2,5 x 6 -A2-70...
  • Page 121 IOL Master 700 000000-1983-917 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 7-17 Order No. 2075-325...
  • Page 122 Bond-cable operator interface 000000-2061-235 IOLMaster 700 NO PARTS LIST AVAILABLE Service Manual Confidential and Proprietary SM-30-4060 Order No. 2075-325 7-18 Version 03, 2014-10-13...
  • Page 123 Bond-cable operator interface 000000-2061-235 IOLMaster 700 SM-30-4060 Confidential and Proprietary Service Manual Version 03, 2014-10-13 7-19 Order No. 2075-325...
  • Page 124 pé~êÉ=m~êíë=iáëí Order No. Designation Page 000000-0518-958 Axial flow fan 12Vdc 32m³_h 60x60x20mm 000000-0518-977 Hard disk 2.5_ SATA 500GB 000000-0531-117 proximity switch ind. NBN4-F29C-Y190844 000000-0549-663 SSD Drive 2,5_ 32GB SATA II 000000-0553-088 PCIe x1 Gen 2 Host Cable Adapter 000000-0556-177 U100 mSATA mini SSD 32GB 000000-0571-750 Battery Li 3V_230mAh Ø20x3.2mm 000000-1304-988...
  • Page 125 Section 8 – Appendices MOMENTARILY NO DOCUMENTATION AVAILABLE SM-30-4060 Service Manual Confidential and Proprietary Version 03, 2014-10-13 8 - 1 Order No. 2075-325...
