SC836 Chassis Manual
4-6

Installing the Air Shroud

Air shrouds concentrate airflow to maximize fan effectiveness. It does not require
screws for its installation. It is designed with removeable break-away tabs that allow
the air shroud to be adjusted to fit a variety of serverboards.
Installing the Air Shroud
1. Power down the system as described in Section 4-2 and remove the cover.
2. Place the air shroud in the chassis. The air shroud fits behind the fans and
beside to the power supply.
3. After checking the fit of the air shroud, remove any break-away tabs necessary
to ensure a proper fit with the serverboard.

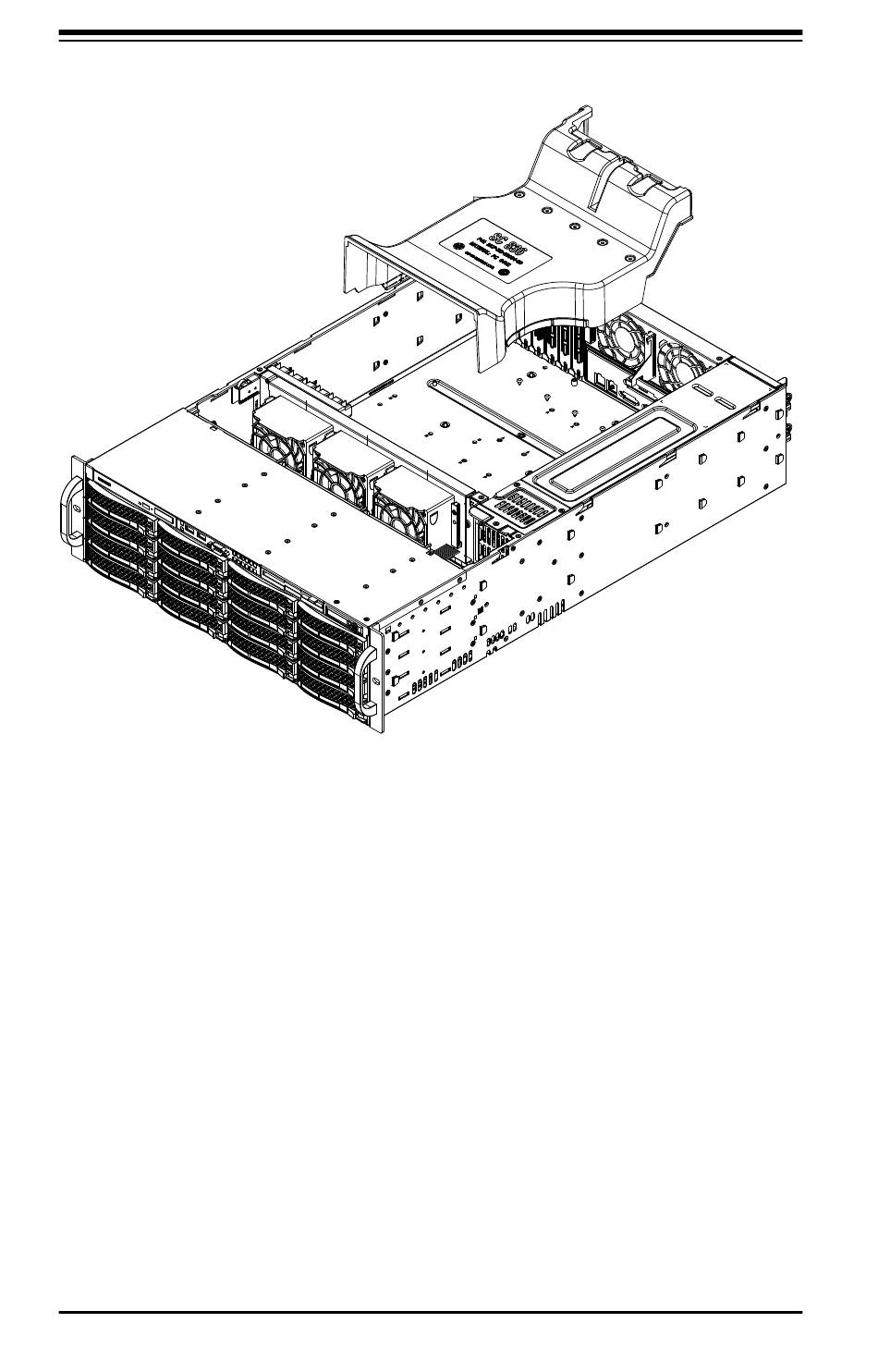

Figure 4-10. Air Shroud Installation
4-10
