SC836 Chassis Manual
Dual HBA Configuration Cables
Dual Port Cable
Assembly

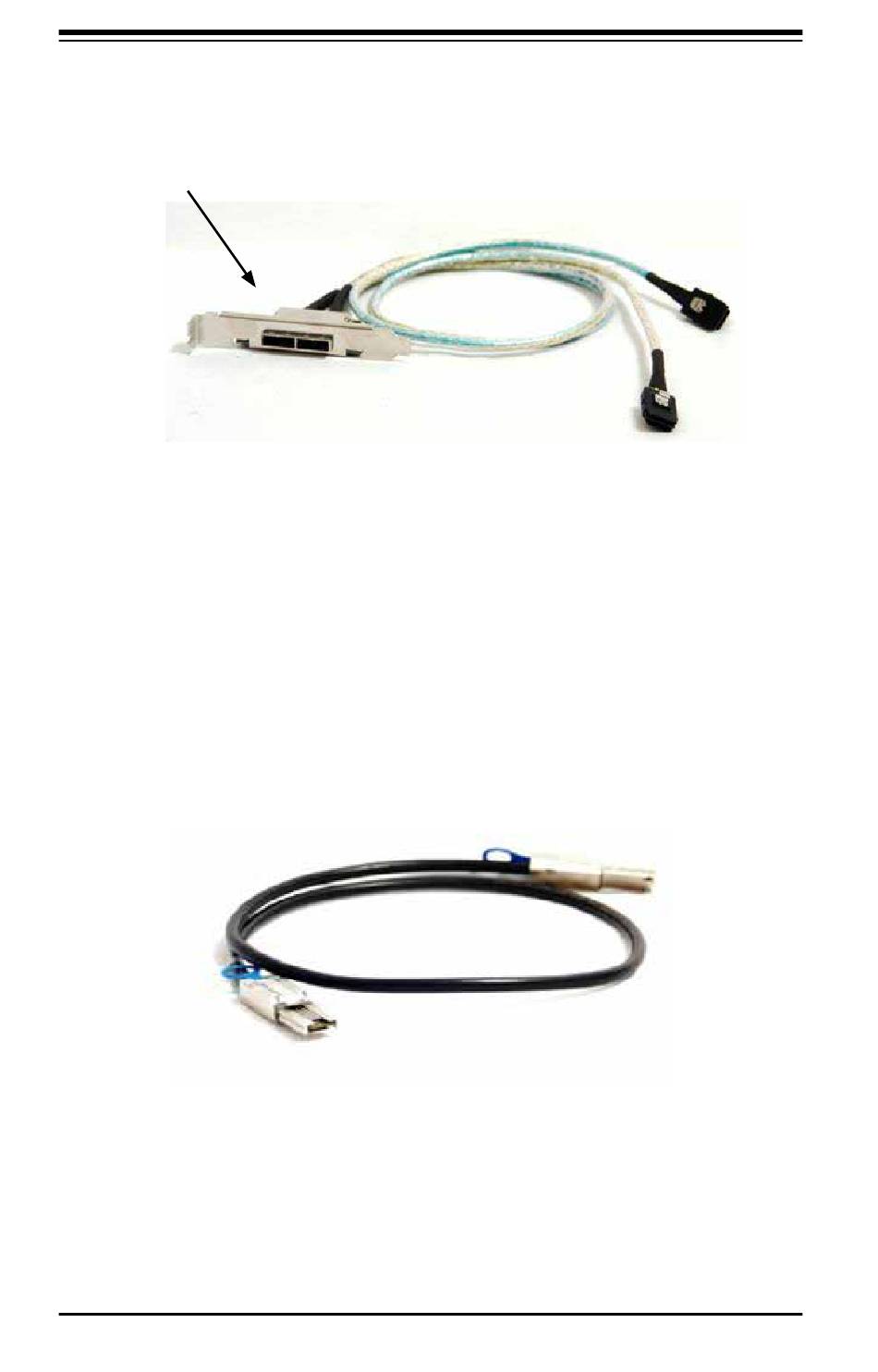

Figure 2EL-16. Dual Port Internal Cable (CBL-0168L)
Cable Name: SAS Dual-port Cable Assembly, 68/76 cm
Part #: CBL-0168L
Ports: Dual
Description: Internal cascading cable. Connects the backplane to the HBA or
external port. Used in dual port environments.
Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm
Part #: CBL-0166L
Ports: Single or Dual
Description: External cascading cable. Connects ports between servers. Use one
cable for single port connections and two cables for dual port connections.
Figure 2EL-17. External Cable (CBL-0166L)
Placement: Internal cable
Placement: External cable
