Supermicro SC823M Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SC823M Chassis Series
SC823MTQ-R700LPB
SC823MTQ-R700UB
SC823MTQC-R802LPB
SC823MTQC-R802WB
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SC823M Series

Summary of Contents for Supermicro SC823M Series

  • Page 1 SC823M Chassis Series SC823MTQ-R700LPB SC823MTQ-R700UB SC823MTQC-R802LPB SC823MTQC-R802WB USER’S MANUAL 1.0a...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 SC823M 2U chassis. Instal- lation and maintenance should be performed by experienced technicians only. Supermicro’s SC823M 2U chassis is a short-depth chassis with a unique and highly- optimized design. The chassis is equipped with three 3.5" hot-swappable hard drives and a redundant 700W or 800W high-efficiency power supply for superb power savings.
  • Page 4 SC823M Chassis Manual Manual Organization Chapter 1: Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC823M chassis. This chapter also includes contact information. Chapter 2: System Safety This chapter lists warnings, precautions, and system safety.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 Introduction Overview ......................1-1 Chassis Features .................... 1-1 Contacting Supermicro ..................1-2 Returning Merchandise for Service..............1-3 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............2-1 Warning Definition ................... 2-1 Installation Instructions ..................
  • Page 7 Preface Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Removing Power from the System ..............5-1 Removing the Chassis Cover ................. 5-2 Removing and Installing the Hard Drives ............5-3 Installing the Motherboard ................5-6 Component Removal ..................5-6 I/O Shield Installation (SC823MTQ-R700LPB Only) ........
  • Page 8 SC823M Chassis Manual Installing the System into a Rack ..............6-4 Identifying the Sections of the Rack Rails ............6-4 Locking Tabs ....................6-5 Releasing the Inner Rail ................. 6-5 Installing The Inner Rails on the Chassis ............6-6 Installing the Outer Rails on the Rack ............6-7 Standard Chassis Installation .................

  • Page 9: Chapter 1 Introduction

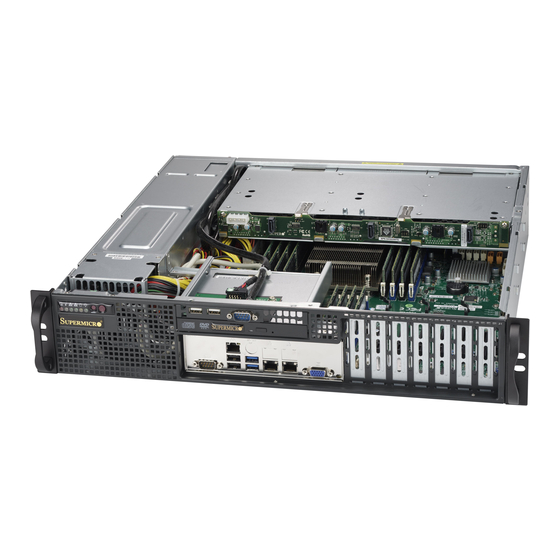

    Chapter 1 Introduction Overview Supermicro's SC823M chassis series offers a 17.7" short-depth 2U foot-print with advanced airflow thermal control. These chassis are designed for front-end serv- ers, database applications, Internet, e-business, server clustering and other server applications. The SC823M supports a wide range of dual/single processor-based motherboards (up to E.E.ATX 13.68"...

  • Page 10: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 11: Returning Merchandise For Service

    (http://www.super- micro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.
  • Page 12 SC823M Chassis Manual Notes...

  • Page 13: Chapter 2 Standardized Warning Statements For Ac Systems

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 14 SC823M Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 15 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 16: Installation Instructions

    SC823M Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 17: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 18: Power Disconnection Warning

    SC823M Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 19 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 20: Equipment Installation

    SC823M Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 21: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 22: Battery Handling

    SC823M Chassis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬ ‫محظورة‬...
  • Page 23 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 24: Redundant Power Supplies

    SC823M Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 25: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 26: Comply With Local And National Electrical Codes

    SC823M Chassis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 27: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 28: Hot Swap Fan Warning

    SC823M Chassis Manual Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫חוקי המדינה‬ ‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות ו‬ ‫القىانين...
  • Page 29 Chapter 2: Warning Statements for AC Systems Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Riesgo de piezas móviles.

  • Page 30: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 31 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 32 SC823M Chassis Manual Notes 2-20...

  • Page 33: Chapter 3 Chassis Components

    DVD-ROM and one slim COM port/ USB tray. For the latest chassis components, visit our website at: http://www. supermicro.com. Backplane Each SC823M chassis comes with a SAS(3)/SATA backplane. For more informa- tion regarding compatible backplanes, view the appendices found at the end of this manual.

  • Page 34: Mounting Rails

    Supermicro Authorized Distributors / System Integrators / Resellers. A list of Supermicro Authorized Distributors / Sys- tem Integrators /Resellers can be found at: http://www.supermicro.com. Click the...

  • Page 35: Chapter 4 System Interface

    Chapter 4: System Interface Chapter 4 System Interface Overview This chassis includes LEDs on the control panel and drive carriers that indicate the activity and health of specific components. The control panel is located on the front of the chassis in the upper left hand corner. The illustrations below are for reference only and do not indicate specific component placement.

  • Page 36: Control Panel Buttons

    SC823M Chassis Manual Control Panel Buttons There are two buttons located on the front of the chassis: a reset button and a power on/off button, located on the front of the chassis. Reset: The reset button is used to reboot the system. Power: The main power switch is used to activate or deactivate power to the server system.
  • Page 37 Chapter 4: System Interface Information LED Status Description An overheat condition has occurred. Solid red (This may be caused by cable congestion). Fan failure, check for an inoperative fan. Blinking red (1Hz) Power failure, check for a non-operational Blinking red (0.25Hz) power supply.

  • Page 38: Drive Carrier Leds

    SC823M Chassis Manual Drive Carrier LEDs Your chassis uses SAS(3)/SATA drives. SAS(3)/SATA Drives Each SAS(3)/SATA drive carrier has two LEDs. • Green: Each SAS(3)/SATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SAS(3)/SATA drive carrier) indicates drive activity.

  • Page 39: Chapter 5 Chassis Setup And Maintenance

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform main- tenance on the chassis. The only tools you will need to install components and perform maintenance is a Phillips screwdriver and under certain circumstances, a hex wrench.

  • Page 40: Removing The Chassis Cover

    SC823M Chassis Manual Removing the Chassis Cover Remove this Screw Remove this Screw Figure 5-1. Removing the Chassis Cover Removing the Chassis Cover 1. Power down the system and remove the power cords from the rear of the power supplies as described in Section 5-2. 2.

  • Page 41: Removing And Installing The Hard Drives

    Chapter 5: Chassis Setup and Maintenance Removing and Installing the Hard Drives Figure 5-2. Removing a Hard Drive Carrier The SC823M chassis features hard drives which are hot-swappable and can be removed from the chassis without powering down the system. Removing Hard Drive Carriers from the Chassis 1.
  • Page 42 SC823M Chassis Manual Dummy Drive Drive Carrier Figure 5-3. Hard Drive Carrier Hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. Warning: Except for short periods of time (while swapping hard drives), do not operate the server with the hard drives empty.
  • Page 43 Chapter 5: Chassis Setup and Maintenance SAS/SATA Hard Drive Figure 5-5. Installing a Hard Drive 3. Install a new drive into the carrier with the printed circuit board side facing down so that the mounting holes in the drive align with those in the carrier. 4.

  • Page 44: Installing The Motherboard

    SC823M Chassis Manual Installing the Motherboard This section describes how to install the motherboard into the chassis. Only the SC823MTQ-R700LPB model requires that you first remove the DVD-ROM drive and USB COM port unit. With all SC823 models, it is required that you first remove the hard drive tray.
  • Page 45 Chapter 5: Chassis Setup and Maintenance DVD-ROM/ USB COM port Bracket USB COM port DVD-ROM/USB DVD-ROM Drive COM port Bracket Figure 5-7. DVD-ROM Drive and USB/COM Port (SC823MTQ-R700LPB only) The DVD-ROM is connected to a USB COM port tray. Both must be removed as a unit when installing the motherboard.

  • Page 46: I/O Shield Installation (Sc823Mtq-R700Lpb Only)

    SC823M Chassis Manual I/O Shield Figure 5-9. I/O Shield Placement I/O Shield Installation (SC823MTQ-R700LPB and SC823MTQC-R802LPB) The I/O shield holds the motherboard ports in place. Install the I/O shield before installing the motherboard. For WIO chassis, the I/O location is a fixed design (part of the chassis) and does not need to be installed separately.

  • Page 47: Permanent And Optional Standoffs

    Flat head Round head Round head Pan head 6-32 x 5 mm 2.6 x 5 mm 3 x 5 mm 6-32 x 5 mm Chapter 5: Chassis Setup and Maintenance [0.197] [0.197] [0.197] [0.197] RAIL Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface.
  • Page 48 SC823M Chassis Manual Figure 5-10. Installing the Motherboard 7. Connect the cables between the motherboard, backplane, chassis, front pan- el, and power supply, as needed. Also, the fans may be temporarily removed to allow access to the backplane ports. 5-10...

  • Page 49: Removing And Reinstalling The Backplane

    Chapter 5: Chassis Setup and Maintenance Removing and Reinstalling the Backplane The backplane is located on the rear of the hard drive tray. To remove and reinstall the backplane, follow the instructions below. Figure 5-11. Removing the Backplane Removing the Backplane 1.

  • Page 50: Expansion Card Setup

    SC823M Chassis Manual Expansion Card Setup SC823M chassis include slots for expansion cards. The number of slots varies depending upon the chassis model and the configuration of the system. See below for information specific to each chassis model. Expansion Card Setup in Low-Profile Model Chassis In SC823M low-profile chassis models, up to seven expansion cards may be used.

  • Page 51: Expansion Card Setup In Uio/Wio Model Chassis

    Chapter 5: Chassis Setup and Maintenance Expansion Card Setup in UIO/WIO Model Chassis The configuration of the expansion cards in UIO/WIO models will vary, depending upon if a Universal I/O card or WIO card is used: With a UIO card: Up to three full-height, half-length I/O may be used Up to three low-profile PCI slots may be used.
  • Page 52 SC823M Chassis Manual Figure 5-13. Installing Riser Cards - UIO/WIO Chassis Figure 5-14. Installing Expansion Cards in a UIO/WIO Chassis 9. Secure the riser card bracket using the two screws previously set aside. 10. Plug the power cords into the rear of the power supplies, replace the chassis cover and power up the system.

  • Page 53: Installing The Air Shroud

    Chapter 5: Chassis Setup and Maintenance Installing the Air Shroud Air Shroud Perforations Figure 5-15. Air Shroud for SC823M Chassis The air shroud concentrates airflow to maximize fan efficiency. The SC823M chassis air shroud does not require screws to set up. Installing the Air Shroud 1.

  • Page 54: Checking The System Airflow

    SC823M Chassis Manual Checking the System Airflow Proper airflow allows the chassis to keep the server components cooled and prevent damage. Use the following steps to check the airflow after setup and in the unlikely event the chassis needs to be serviced. Checking the Server's Airflow 1.

  • Page 55: Completing The Installation

    Chapter 5: Chassis Setup and Maintenance Completing the Installation Once the air shroud is properly installed, do the following to complete the instal- lation procedure. Completing the Installation 1. If your chassis is equipped with a DVD-ROM drive, install the DVD-ROM drive unit and connect the DVD-ROM drive to the motherboard.

  • Page 56: 5-10 System Fans

    SC823M Chassis Manual 5-10 System Fans The SC823M chassis includes four fans for cooling and air circulation. Two dummy fans are included as a place holder. System Fans Included Optional Fans Not Included Figure 5-16. System Fans and Optional Fans in Fan Tray Replacing a System Fan 1.
  • Page 57 Chapter 5: Chassis Setup and Maintenance Figure 5-17. Placing the System Fan Note: The SC823M chassis includes four pre-installed fans. Two extra slots are included for an optional fifth and sixth fan. 5. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direc- tion as the arrows on the other fans.

  • Page 58: 5-11 Power Supply

    Power Supply Replacement The SC823M chassis models include a redundant power supply. Power supplies can be replaced without powering down the system. Replacement units can be ordered directly from Supermicro at http://www.supermicro.com. Release Tab Figure 5-18. Removing the Power Supply The SC823M chassis includes a redundant power supply.

  • Page 59: 5-12 Power Distributor

    Chapter 5: Chassis Setup and Maintenance 5-12 Power Distributor Replacing the Power Distributor The power distributor provides failover and power supply redundancy. In the unlikely event you must replace the power distributor, do following Replacing the Power Distributor 1. Power down the system and remove the power cords from the rear of the power supplies as described in Section 5-2.
  • Page 60 SC823M Chassis Manual Notes 5-22...

  • Page 61: Chapter 6 Rack Installation

    Chapter 6: Rack Installation Chapter 6 Rack Installation This chapter provides instructions for preparing and mounting your chassis in a rack. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 62: Warnings And Precautions

    SC823M Chassis Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installations, stabilizers should be attached to the rack. •...

  • Page 63: Rack Mounting Considerations

    Chapter 6: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (TMRA).

  • Page 64: Installing The System Into A Rack

    SC823M Chassis Manual Installing the System into a Rack This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 65: Locking Tabs

    Chapter 6: Rack Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when the chassis is pulled out for servicing.

  • Page 66: Installing The Inner Rails On The Chassis

    SC823M Chassis Manual Installing The Inner Rails on the Chassis Installing the Inner Rails 1. Confirm that the left and right inner rails have been correctly identified. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 67: Installing The Outer Rails On The Rack

    Chapter 6: Rack Installation L-min=676.00(26.61")(outer rail) 21D01 Figure 6-5. Extending and Releasing the Outer Rails Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2.

  • Page 68: Standard Chassis Installation

    SC823M Chassis Manual Standard Chassis Installation Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Installing the Chassis into a Rack 1.
  • Page 69 Chapter 6: Rack Installation Figure 6-7. Installing the Chassis into a Rack Figure 6-8. Completed Chassis Installation...
  • Page 70 SC823M Chassis Manual Notes 6-10...

  • Page 71: Appendix A Sc823M Power Supply Specifications

    Appendix A: Power Supply Specifications Appendix A SC823M Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC823MTQ-R700LPB and SC823MTQ-R700UB 700W (Redundant) MFR Part # PWS-702A-1R 100 - 240 Vac Rated AC Voltage 50 - 60 Hz 10 - 4 Amp +5 V Standby Current +12 V Current...
  • Page 72 SC823M Chassis Manual Notes...

  • Page 73: Appendix B Bpn-Sas-825Mtq Backplane Specifications

    The BPN-SAS-825MTQ backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects BPN-SAS-825MTQ revision 1.10, the most current release available at the time of publication. Refer to www.supermicro.com for the latest updates, compatible parts and supported configurations.
  • Page 74 SC825M Chassis Manual B-4 Rear Connector Locations The following connectors are on the side of the backplane that faces the rear of the chassis. They are marked by silk screen labels. JP51 SIDEBAND LED TEST JP46 +12V +12V UPGRADE +12V RESET J29 UPER BPN-SAS-825MTQ...
  • Page 75 Appendix B: BPN-SAS-825MTQ Backplane Specifications B-5 Rear Connector and Pin Definitions Backplane 1. Main Power Connector Main Power 4-Pin Connector The 4-pin connector, designated JP10, pro- Pin# Definition vides power to the backplane. +12V 2 and 3 Ground 2. Sideband Connector Sideband Connector The sideband connector is designated JP51.
  • Page 76 SC825M Chassis Manual B-6 Rear Jumper Locations and Pin Definitions JP51 SIDEBAND LED TEST JP46 +12V +12V UPGRADE +12V RESET J29 UPER BPN-SAS-825MTQ REV 1.02 Figure B-2. BPN-SAS-825MTQ Rear Jumpers Explanation of Jumpers Connector Pins To modify the operation of the backplane, jumpers can be used to choose between optional settings.
  • Page 77 Appendix B: BPN-SAS-825MTQ Backplane Specifications B-7 Front Connectors and LED Indicators BAR CODE SAS #0 SAS #1 SAS #2 SAS#1 SAS#0 SAS#2 Figure B-3. BPN-SAS-825MTQ Front View Front Connector/LED Indicator Descriptions Front SAS Connectors Rear Connector SAS Drive Number SAS#0 SAS/SATA HHD #0 SAS#1 SAS/SATA HHD #1...
  • Page 78 SC825M Chassis Manual Notes...

  • Page 79: Appendix C Bpn-Sas3-825Mtq Backplane Specifications

    The BPN-SAS3-825MTQ has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects BPN-SAS3-825MTQ revision 1.10, the most current release available at the time of publication. Refer to www.supermicro.com for the latest updates, compatible parts and supported configurations.
  • Page 80 SC823M Chassis Manual C-4 Rear Connector Locations The following connectors are on the side of the backplane that faces the rear of the chassis. They are marked by silkscreen labels. JP51 SIDEBAND LED TEST JP46 +12V UPGRADE +12V +12V RESET J29 UPER BPN-SAS-825MTQ REV 1.02...
  • Page 81 Appendix C: BPN-SAS3-825MTQ Backplane Specifications C-5 Rear Connector and Pin Definitions 1. Main Power Connector Backplane Main Power The 4-pin connector, designated JP10, pro- 4-Pin Connector vides power to the backplane. Pin# Definition +12V 2 and 3 Ground Sideband Connector Pin # Definition Pin # Definition...
  • Page 82 SC823M Chassis Manual C-6 Rear Jumper Locations and Pin Definitions JP51 SIDEBAND LED TEST JP46 +12V +12V UPGRADE +12V RESET J29 UPER BPN-SAS-825MTQ REV 1.02 Figure C-2. BPN-SAS3-825MTQ Rear Jumpers Explanation of Jumpers Connector Pins To modify the operation of the backplane, jumpers can be used to choose between optional settings.
  • Page 83 Appendix C: BPN-SAS3-825MTQ Backplane Specifications C-7 Front Connectors and LED Indicators BAR CODE SAS #0 SAS #1 SAS #2 SAS#1 SAS#0 SAS#2 Figure C-3. BPN-SAS3-825MTQ Front View Front Connector/LED Indicator Descriptions Front SAS Connectors Rear Connector SAS Drive Number SAS#0 SAS/SATA HHD #0 SAS#1 SAS/SATA HHD #1...
  • Page 84 SC823M Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
