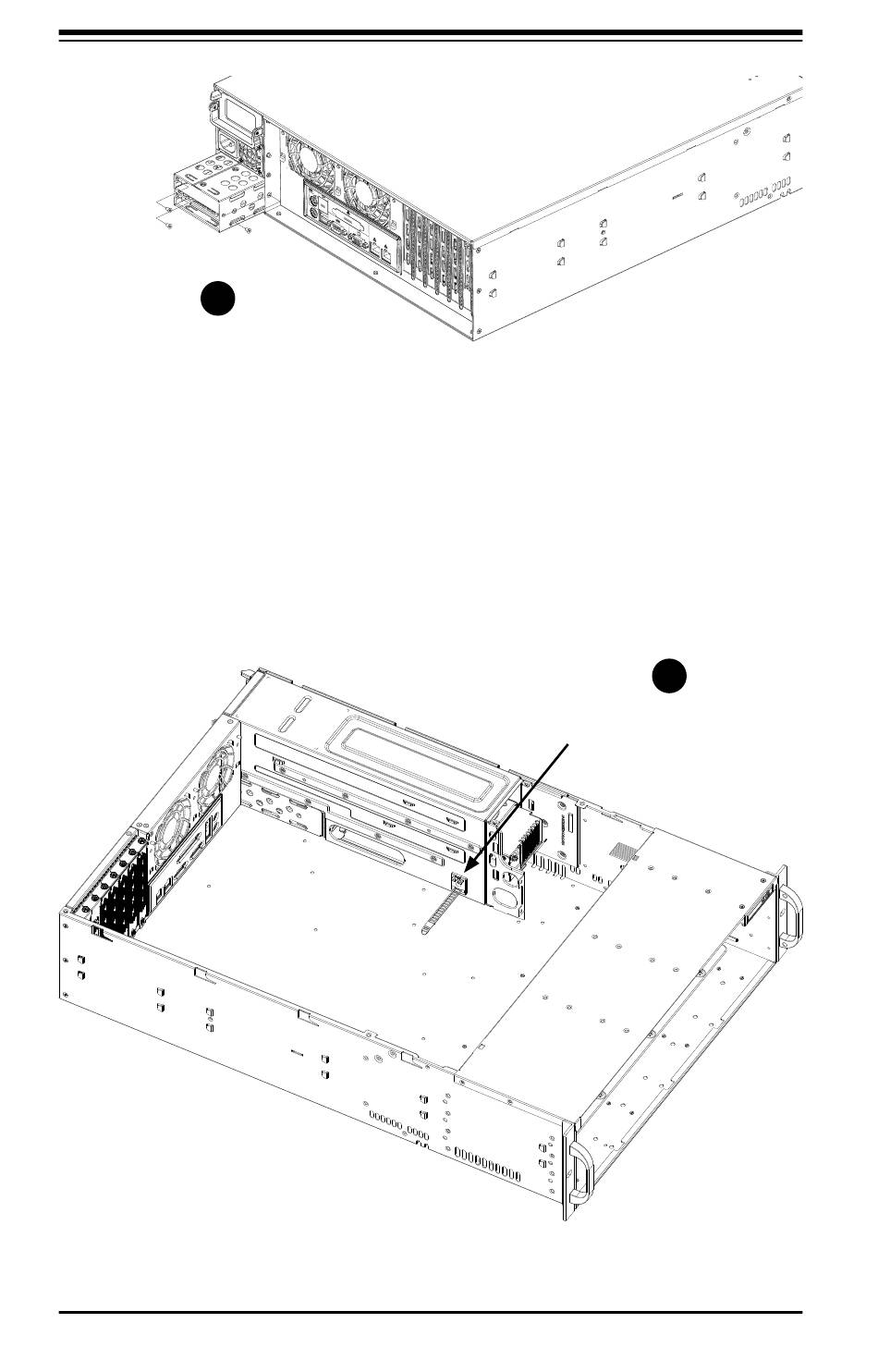

Figure D-6. Securing Drive Assembly to the Chassis
10. Secure the hard drive cage to the chassis with three screws as shown.
11. Secure the drive bay cables with the tie wrap.
12. Connect the 4-pin power supply Y-cable to the power distribution board (PDB)
to supply power. Connect the two SATA cables to the motherboard SATA
ports.
Figure D-7. Securing the Tie Wrap
D-4
1
11
Tie Wrap Placement
