Appendix C Backplane Specifications
Single HBA Configuration Cables

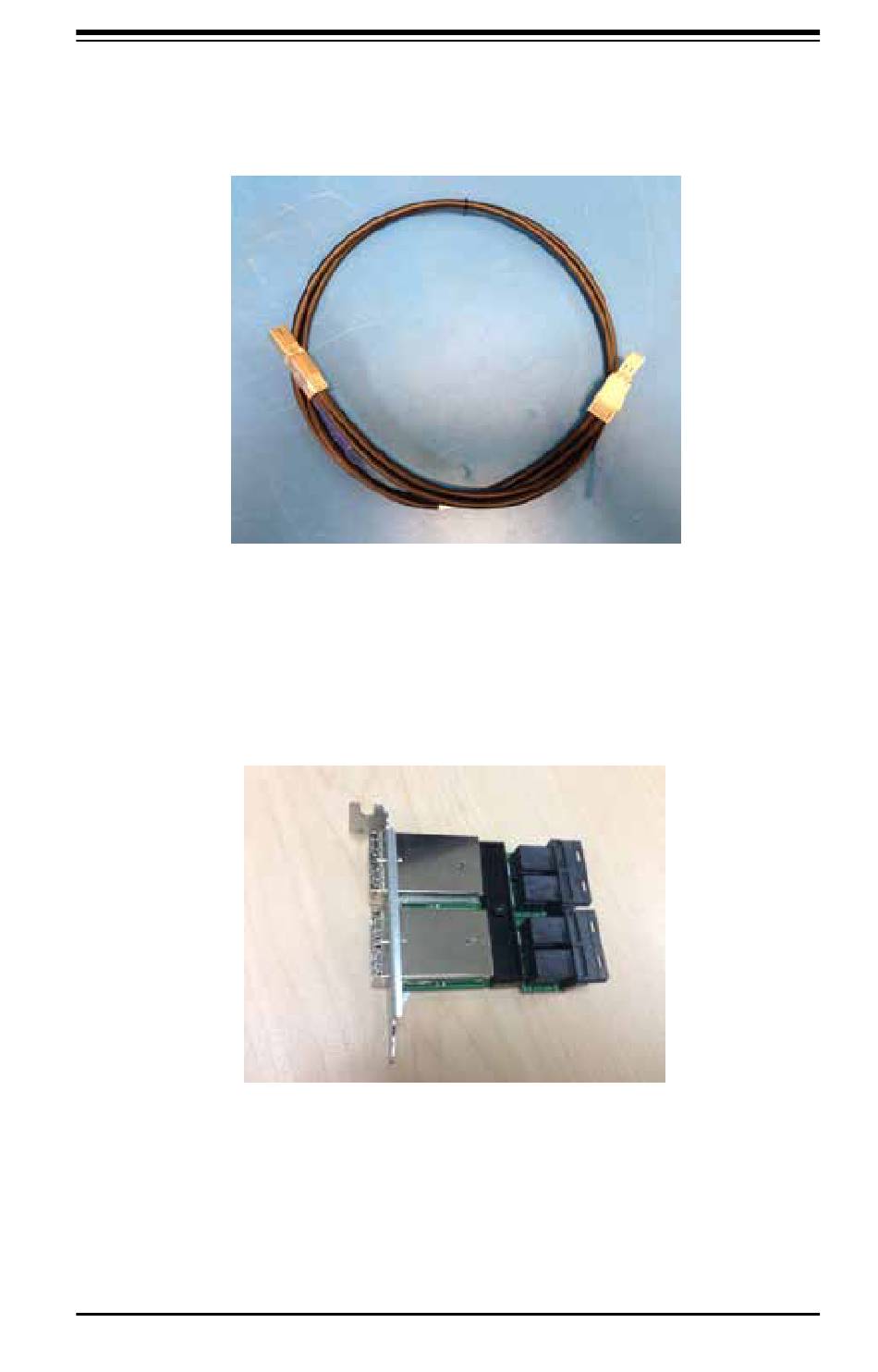

Figure 3EL-16. External Mini-SAS HD to External Mini-SAS HD Cable
Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable
Part #: CBL-SAST-0573
Ports: Single
Placement: External Cable
Description: External cascading cable, connects ports between servers and JBODs.
Figure 3EL-17. Mini-SAS HD Internal to External Adapter
Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP
Bracket
Part #: AOM-SAS3-16I16E-ADP-LP
Ports: Four wide-ports (sixteen ports total)
Placement: Internal cable with adapter
Description: Internal cable, connects the SAS3 backplane to external ports.
C-57
