SC836 Chassis Manual
3. Attach cables to the small PCB backplane. Route the cables into the chassis
and through the chassis opening under the power supplies.
4. Insert the drive cage assembly into the chassis carefully following the cables.
Secure the cage with screws through the bottom of the chassis.
4
5. Attach power and data cables to the power distributor and the serverboard.
6. Slide two 2.5" hard drives mounted in hard drive carriers into the tray.

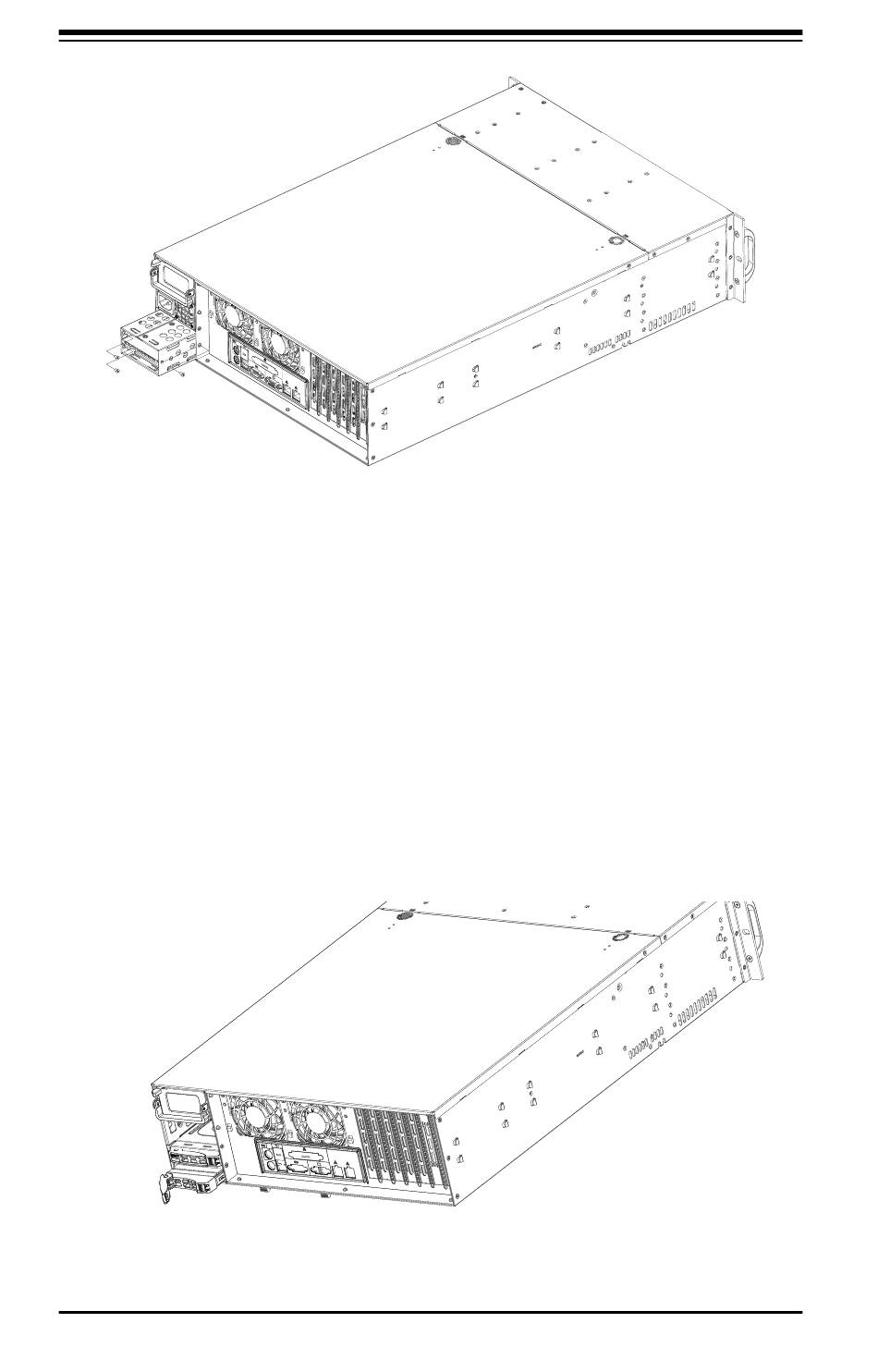

Figure 4-8. Installing Rear Hot-Swap Drives
Figure 4-9. Inserting the Rear Drives
4-8
