Optional HDDs in the Rear of the Chassis
Chassis models SC836Bxx... offer the option of adding two hot-swap 2.5" hard
disk drives accessable from the rear of the chassis. It requires the kit, MCP-220-
83605-0N.
Installing the Hot-Swap Drive Kit
4
(A more detailed procedure can be found in Appendix D.)
1. Remove the small external cover plate from the rear of the chassis by removing
the screws under the chassis.
2. From the kit, on the mounting cage at the end opposite where the drives will be
inserted, mount the small PCB backplane using three screws.

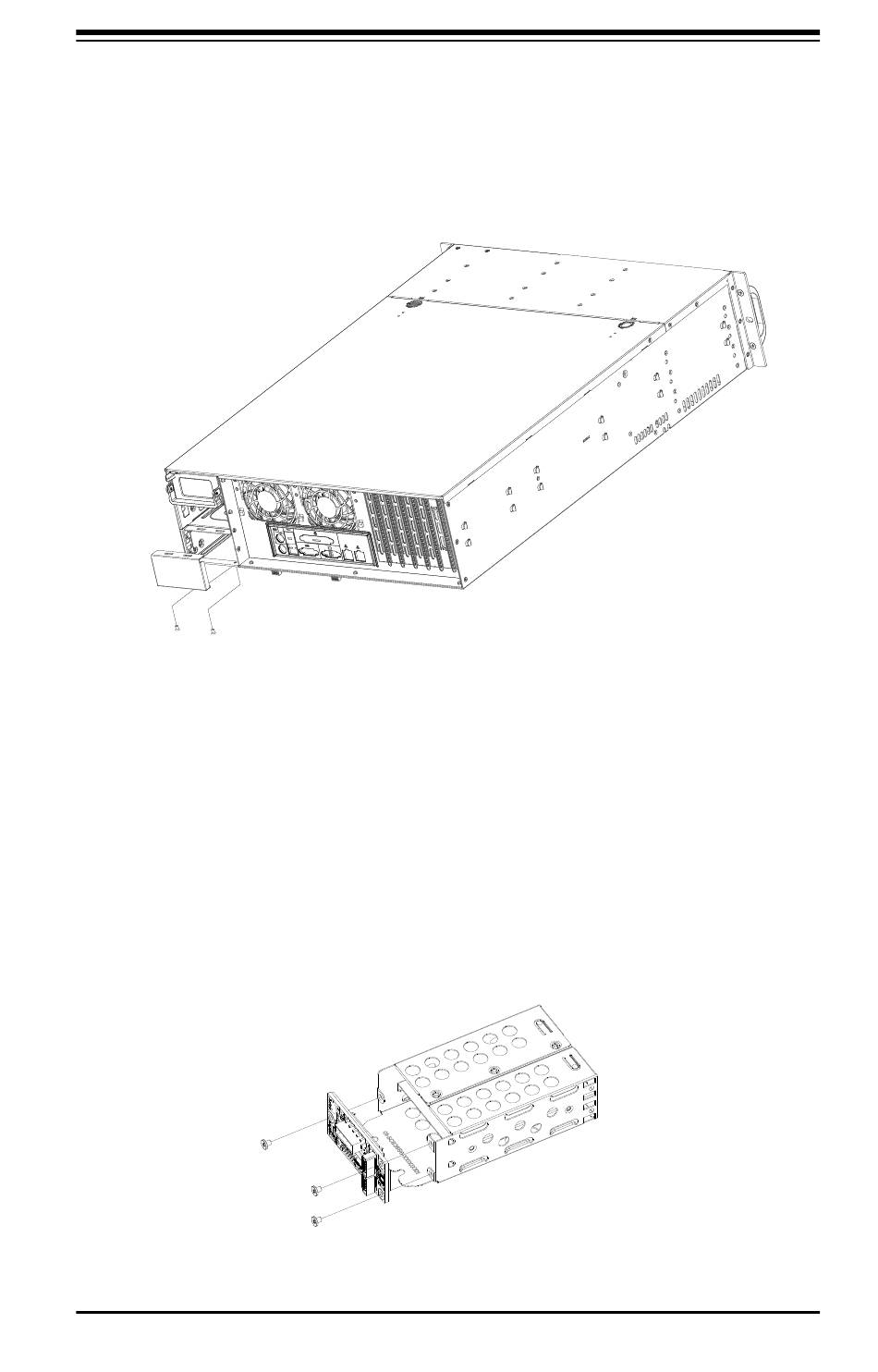

Figure 4-7. Attaching the PCB Backplane to the Hot-Swap HDD Cage
Figure 4-6. Removing the Cover Plate
4-7
Chapter 4: Chassis Setup and Maintenance
