6. Connect the 4-pin power supply Y-cable to the cage backplane.
7. Connect the two SATA cables to the SATA ports on the cage backplane.
8. Route the cables into the chassis bay and out through the rounded opening in
the side of the hard drive bay on the inside of the chassis.
9. Insert the hard drive cage into the rear hard drive bay of the chassis and slide
it all the way back, aligning the grooves in the bottom plate of the cage with
the upright posts inside the bay.
9

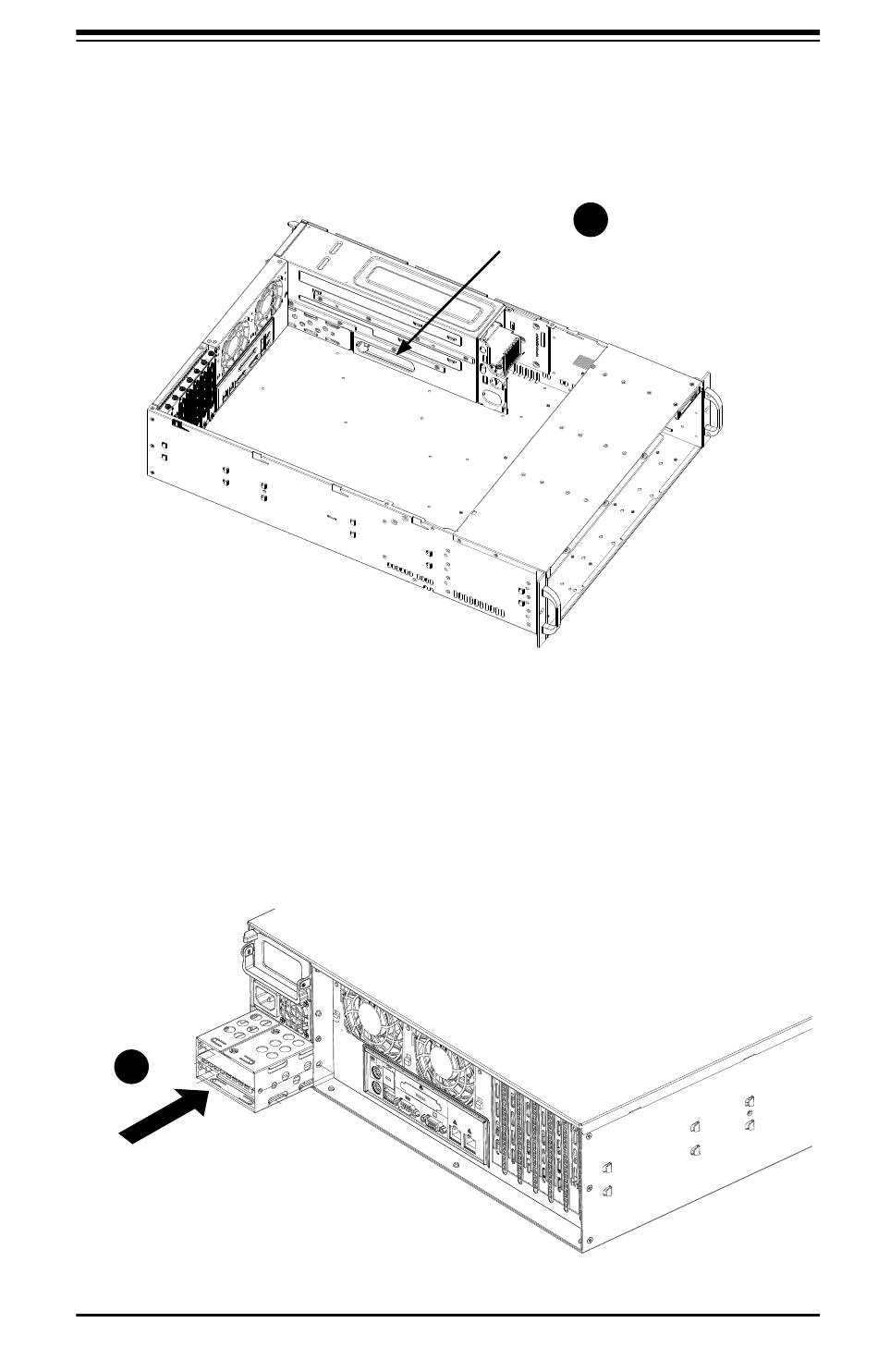

Figure D-5. Installing the Drive Cage into the Rear Bay
Figure D-4. Routing the Cables
D-3
Appendix D: SC836B Added Features
1
8
Route Cables Here
