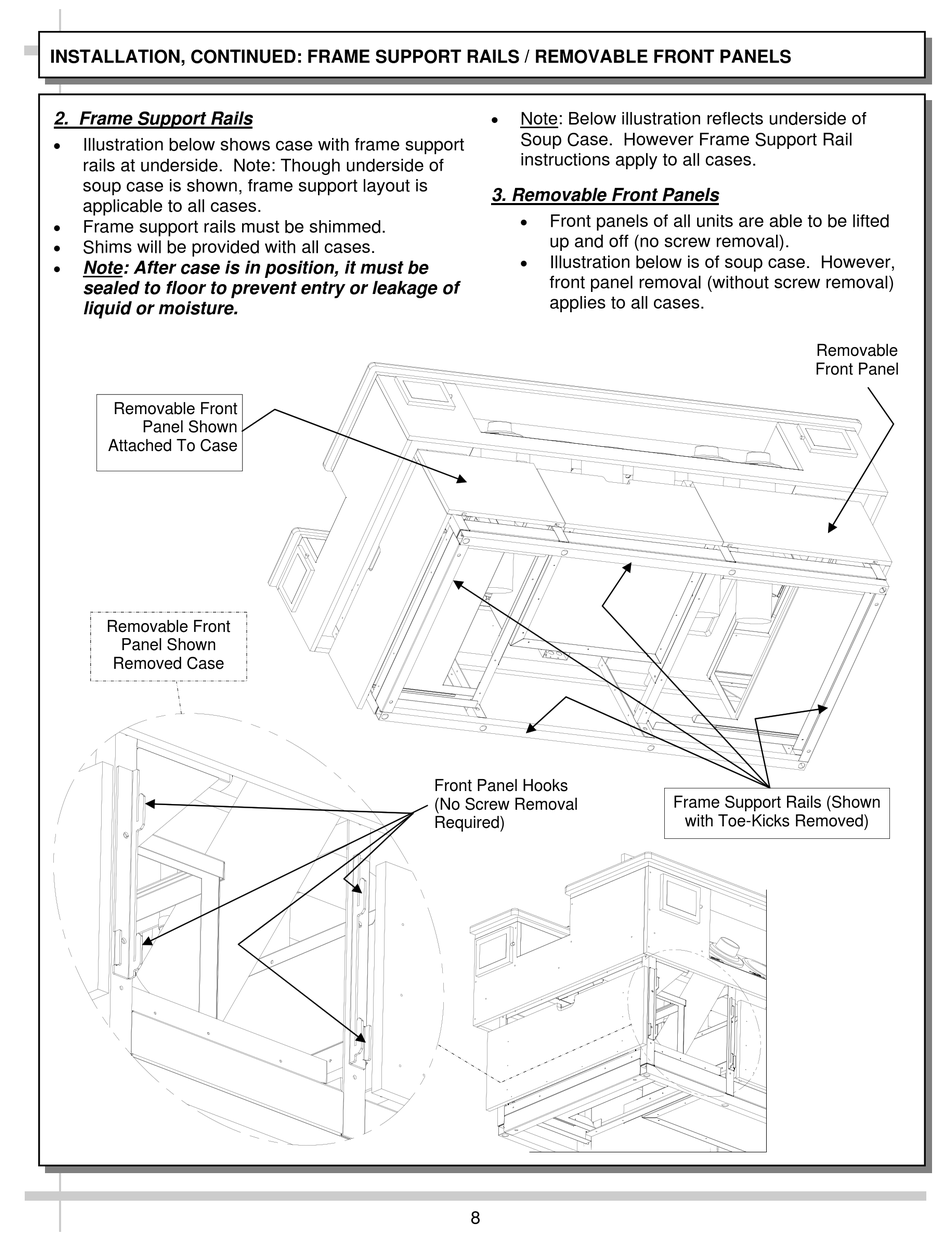

INSTALLATION, CONTINUED: FRAME SUPPORT RAILS / REMOVABLE FRONT PANELS

2. Frame Support Rails

Illustration below shows case with frame support
rails at underside. Note: Though underside of
soup case is shown, frame support layout is
applicable to all cases.

Frame support rails must be shimmed.

Shims will be provided with all cases.

Note: After case is in position, it must be
sealed to floor to prevent entry or leakage of
liquid or moisture.
Removable Front
Panel Shown
Attached To Case
Removable Front
Panel Shown
Removed Case

Note: Below illustration reflects underside of
Soup Case. However Frame Support Rail
instructions apply to all cases.
3. Removable Front Panels

Front panels of all units are able to be lifted
up and off (no screw removal).

Illustration below is of soup case. However,
front panel removal (without screw removal)
applies to all cases.
Front Panel Hooks
(No Screw Removal
Required)
8
Removable
Front Panel
Frame Support Rails (Shown
with Toe-Kicks Removed)
