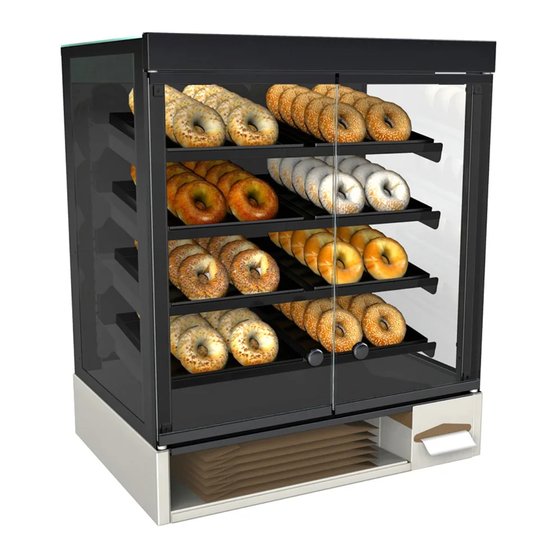

  • Page 1 CAREFULLY FOLLOW THESE INSTRUCTIONS IMPULSE USER SCC P/N MANUAL 99425 SELF-SERVICE AMBIENT COUNTERTOP UNITS >> MODELS CSC3223 / CSC3223.4254 / CSC3223.4817 Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com USER MANUALS\99425_IMPULSE_USER MANUAL_CSC3223_AMBIENT_SLF-SVC_C'TOP CASE REV L DATE: 09/25/2023...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OVERVIEW AND WARNINGS ……………….……………..…………………..…….…………..……… INSTALLATION ……….………………………………………………………………………………………… START-UP AND OPERATION …….. …..….…………………...……………..…..……………………… MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLY REMOVAL / DECKING REMOVAL ……….. MAINTENANCE FUNDAMENTALS: STD. DOOR MECHANISM / RYOBI DOOR MECHANISM …….. LIGHT FIXTURES - LED …………………………………………………………………………...…………. TROUBLESHOOTING / CLEANING SCHEDULE …………..………………………….………….……….. ILLUSTRATED PARTS BREAKDOWN……………………………………………………….………………...

  • Page 3: Overview And Warnings

    This unit is designed for the display of products in ambient store conditions where temperatures and • The Structural Concepts non-refrigerated service humidity are maintained at a maximum of 75° F cases are designed to merchandise unpackaged and 55% relative humidity.

  • Page 4: Installation

    INSTALLATION 1. Remove Unit From Skid • Position the unit near a suitable electrical outlet. • Caution: Case must always remain supported or center of gravity will allow case to fall. • Slide unit to rear of skid and tip backward off skid. 2.

  • Page 5: Start-Up And Operation

    START-UP AND OPERATION For your safety, equipment is furnished with a properly grounded cord connector. Do not attempt to defeat the grounded connector. Light Switch 1. Set-up Counter Top Unit • Remove case from skid and place on counter in the position at which the case will reside.

  • Page 6: Maintenance Fundamentals: Shelf Assembly Removal / Decking Removal

    MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLY REMOVAL / DECKING REMOVAL 1. Shelf Assembly Removal • Remove brackets. Note: It may be necessary to remove the nylon shipping bracket retainers. • Shelves can be removed for repositioning, Pliers will be required to accomplish this task. removal (for individual merchandising requirements) and cleaning.

  • Page 7: Maintenance Fundamentals: Std. Door Mechanism / Ryobi Door Mechanism

    MAINTENANCE FUNDAMENTALS: STANDARD DOOR MECHANISM / RYOBI DOOR MECHANISM 1. Door “Hold Open” Feature To reposition the shelving or restock the shelves, it is first helpful to use the door ‘hold open” feature. • Open the door all the way (See light fixture). •...

  • Page 8: Light Fixtures - Led

    Adjust magnetic mounting clips so they are equally • LED lights rarely require change-out. spaced on LED light. • Contact Structural Concepts’ Technical Service • Reattach LED light assembly to its shelf/header. Department for replacement LED lights. • Position properly in shelf/header.

  • Page 9: Troubleshooting / Cleaning Schedule

    TROUBLESHOOTING / CLEANING SCHEDULE Troubleshooting Issue Resolution Case Lights Not Working Check LED lights for proper installation and connection. See LIGHT FIXTURES - LED section in manual for illustrations. Check for burned out LED lights. System is not Operating Confirm the utility power is on. Check the circuit breaker box for tripped circuits.

  • Page 10: Illustrated Parts Breakdown

    ILLUSTRATED PARTS BREAKDOWN Note: Depending Upon Features And Options Chosen, Illustration Shown May Not Exactly Reflect Your Particular Case. Header_Sign_Upper_End Exterior_Glass_End_Right Deck_Base_Wood Header_Sign_Upper_Left Door_Glass_Frt_Right Door_Glass_Frt_Left Header_Sign_Upper_Right Knob_Door_Plastic_Right Frame_Base Bin_Tray_Shelf_Fiberglas Knob_Door_Plastic_Left Exterior_Glass_End_Left...
  • Page 11 ILLUSTRATED PARTS BREAKDOWN, CONT’D Note: Depending Upon Features And Options Chosen, Illustration Shown May Not Exactly Reflect Your Particular Case. Panel_Back_Lower_Base Knob_Door_Rear_Right Door_Glass_Rear_Left Door_Glass_Rear_Right Knob_Door_Rear_Left Cord_Power...
  • Page 12 ILLUSTRATED PARTS BREAKDOWN, CONT’D Note: Depending Upon Features And Options Chosen, Illustration Shown May Not Exactly Reflect Your Particular Case. Channel_Price (Typ.) Switch_Light Magnet_Tissue Dispenser (Typ.) Shelf (Typ.) Driver_VCD Dispenser_Tissue...
  • Page 13 ILLUSTRATED PARTS BREAKDOWN, CONT’D Light Assembly Light_LED (Typ.) Clip_Retaining_LED (Typ.)

  • Page 14: Serial Label Location & Information Listed / Tech Info & Service

    For additional technical information and service, see (on the header, at case rear, behind panels or the TECHNICAL SERVICE page in this manual for toe-kicks, on electrical boxes, etc.). instructions on contacting Structural Concepts’ • Serial labels contain electrical information as well Technical Service Department.

  • Page 15: Technical Service Contact Information & Warranty Information

    STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY YOU MUST HAVE THE FOLLOWING INFO AVAILABLE TECH SERVICE/WARRANTY CONTACT INFO: 1 (800) 433-9490 / EXTENSION 1 BEFORE CONTACTING STRUCTURAL CONCEPTS: SERIAL NO. / MODEL NO. / STORE NO. / STORE...
  • Page 16 99425 USER MANUAL / APPROVALS, ROUTINGS, REVISIONS DATE DUE / COMMENTS: ROUTINGS / SIGNOFF ROUTED TO: DEPARTMENT INITIALS SIGNOFF DATE COMMENTS LINDA KARR REG. COMPLIANCE JASON PAQUETTE REFRIG. ENGINEERING BILL KANGAS REFRIG. ENGINEERING RUSS STONE PROD. ENGINEERING CHRIS GORT TECHNICAL WRITER BILL VANDERLINDE PROJ.
