CONDENSATION FANS - ACCESS, REMOVAL & REPLACEMENT OF FANS
Access, Remove & Replace Fans

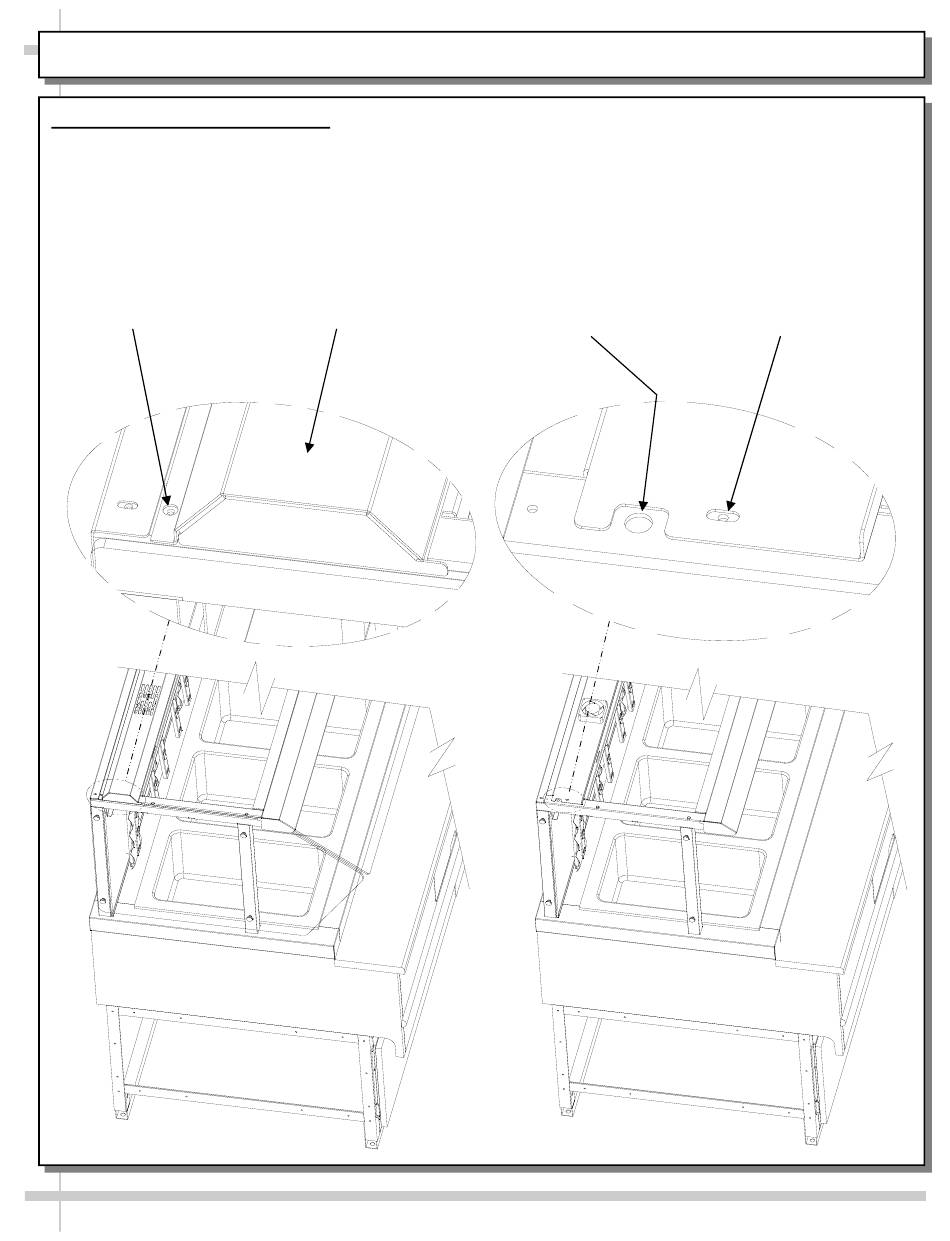

1. Remove fan cover screws (one screw at each
end of fan cover).
2. Roll fan cover forward and lift fan cover up and
off case.
1. Remove (2)
screws (one at each
end of Fan Cover)
2. Roll Fan
Cover Forward
and Off Case
3. Disconnect plug from hole at customer left side
of case to free up fans.
4. Remove fan panel screws (one at each end of
fan panel.
3. Disconnect plug
(so fans are free to
be lifted up and off).
32
4. Remove (2)
screws (one at each
end of fan panel).
