Structural Concepts Impulse 62486 Operating Manual page 34

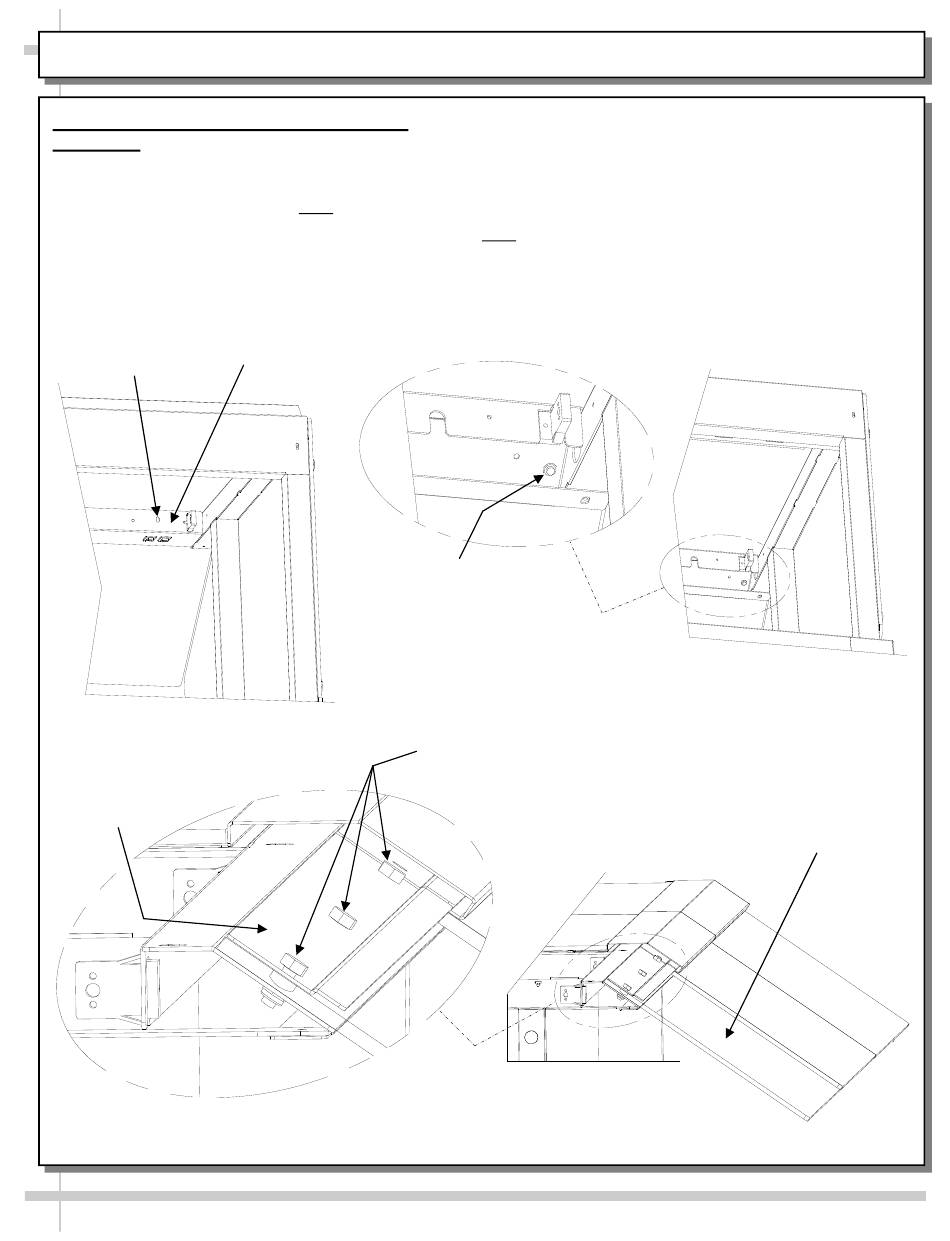

SIDE GLASS / SNEEZE GUARD REMOVAL & REPLACEMENT (PAGE #2 of 2)
2. Sneeze Guard Removal & Replacement,
Continued
E. Remove (2) screws (in obrounds) from inner light
housing.
F. Drop inner light housing down. Note: Adequate switch
wire length will allow inner light housing to be dropped
down to complete process without disconnecting wires.
2.E. Remove (2)
screws (at 2.F. Drop inner
obrounds) from
inner light housing.
Base Flange
Bracket
Enlarged View From Customer-
Left Side of Case
light housing
down
2.G. View of nut from inner
case after inner light
housing has been removed
G. View shown of nut (1 of 3) now accessible after inner
light housing has been dropped down.
H. Bolts (viewable after light shield has been removed)
are to be removed along with base flange bracket.
I. Sneeze guard may now be removed and replaced
(as required).
Note: After new sneeze guard has been installed,
reassemble in reverse order it was disassembled.
2.H. Bolts (viewable after light shield
has been removed) are to be removed
along with base flange bracket.
View From Customer-
Left Side of Case
34
I. Sneeze guard may
now be removed and
replaced (as required).
