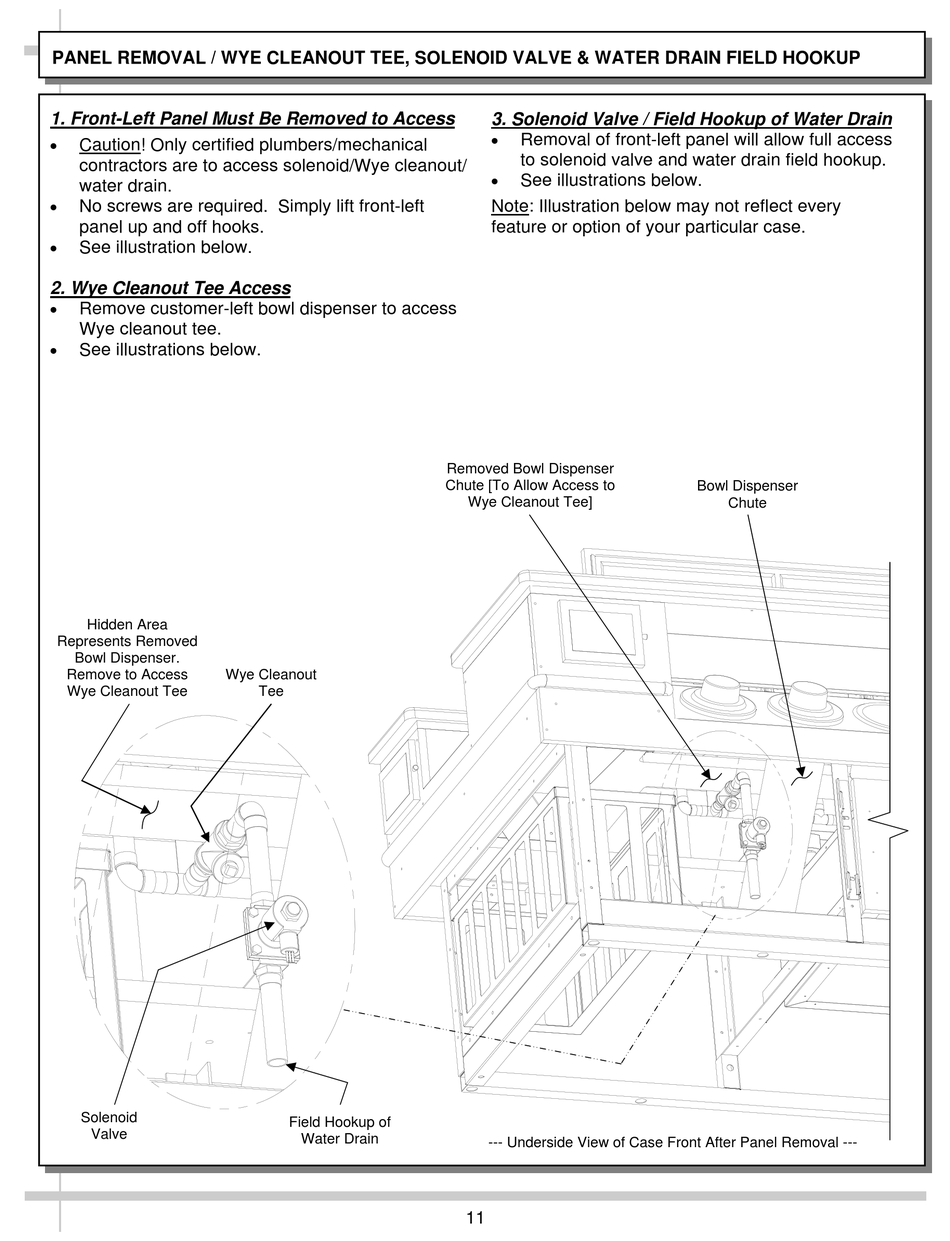

PANEL REMOVAL / WYE CLEANOUT TEE, SOLENOID VALVE & WATER DRAIN FIELD HOOKUP
1. Front-Left Panel Must Be Removed to Access

Caution! Only certified plumbers/mechanical
contractors are to access solenoid/Wye cleanout/
water drain.

No screws are required. Simply lift front-left
panel up and off hooks.

See illustration below.
2. Wye Cleanout Tee Access

Remove customer-left bowl dispenser to access
Wye cleanout tee.

See illustrations below.
Hidden Area
Represents Removed
Bowl Dispenser.
Remove to Access
Wye Cleanout
Wye Cleanout Tee
Solenoid
Valve
Tee
Field Hookup of
Water Drain
3. Solenoid Valve / Field Hookup of Water Drain

Removal of front-left panel will allow full access
to solenoid valve and water drain field hookup.

See illustrations below.
Note: Illustration below may not reflect every
feature or option of your particular case.
Removed Bowl Dispenser
Chute [To Allow Access to
Wye Cleanout Tee]
--- Underside View of Case Front After Panel Removal ---
11
Bowl Dispenser
Chute
