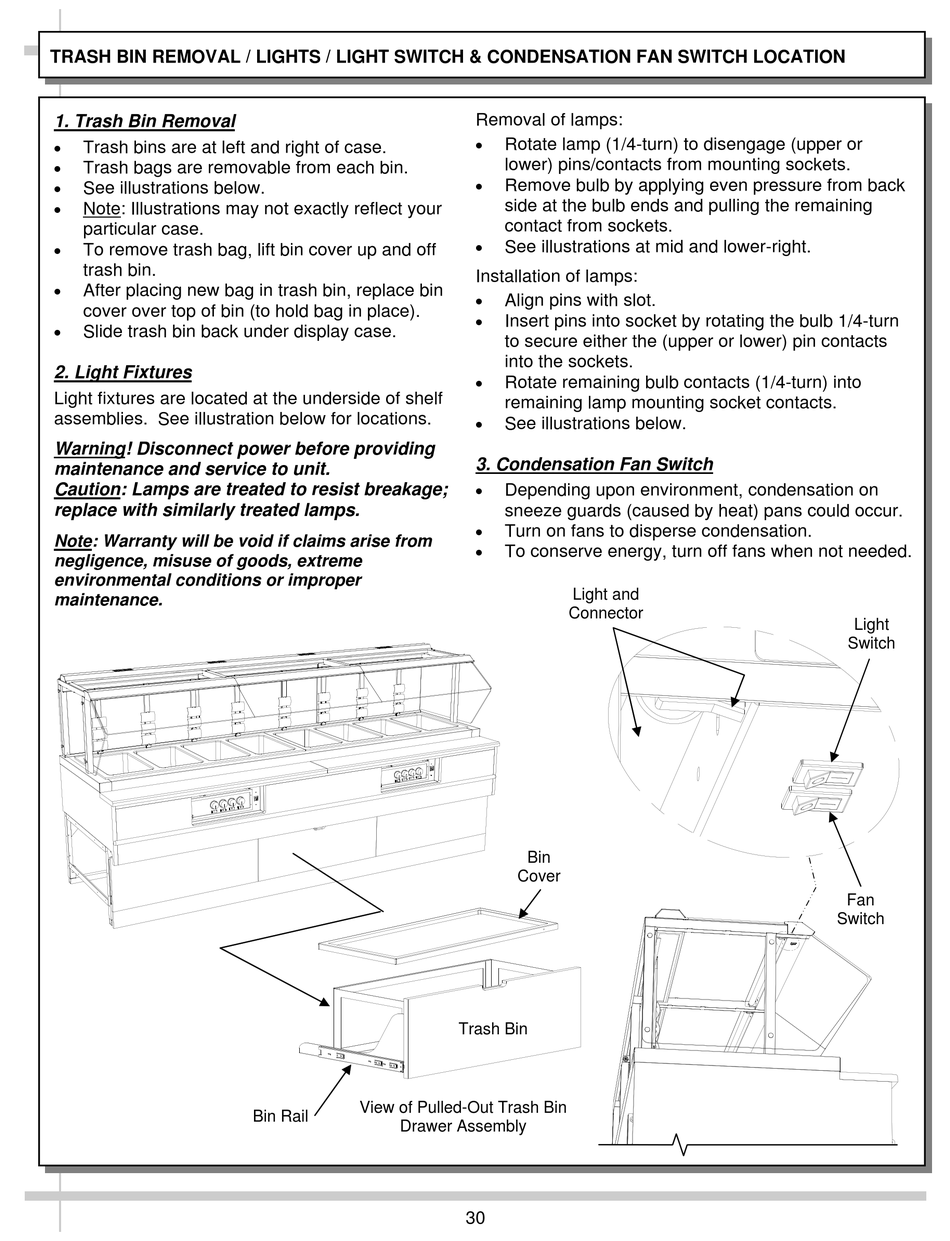

TRASH BIN REMOVAL / LIGHTS / LIGHT SWITCH & CONDENSATION FAN SWITCH LOCATION
1. Trash Bin Removal

Trash bins are at left and right of case.

Trash bags are removable from each bin.

See illustrations below.

Note: Illustrations may not exactly reflect your
particular case.

To remove trash bag, lift bin cover up and off
trash bin.

After placing new bag in trash bin, replace bin
cover over top of bin (to hold bag in place).

Slide trash bin back under display case.
2. Light Fixtures
Light fixtures are located at the underside of shelf
assemblies. See illustration below for locations.
Warning! Disconnect power before providing
maintenance and service to unit.
Caution: Lamps are treated to resist breakage;
replace with similarly treated lamps.
Note: Warranty will be void if claims arise from
negligence, misuse of goods, extreme
environmental conditions or improper
maintenance.
View of Pulled-Out Trash Bin
Bin Rail
Drawer Assembly
Removal of lamps:

Rotate lamp (1/4-turn) to disengage (upper or
lower) pins/contacts from mounting sockets.

Remove bulb by applying even pressure from back
side at the bulb ends and pulling the remaining
contact from sockets.

See illustrations at mid and lower-right.
Installation of lamps:

Align pins with slot.

Insert pins into socket by rotating the bulb 1/4-turn
to secure either the (upper or lower) pin contacts
into the sockets.

Rotate remaining bulb contacts (1/4-turn) into
remaining lamp mounting socket contacts.

See illustrations below.
3. Condensation Fan Switch

Depending upon environment, condensation on
sneeze guards (caused by heat) pans could occur.

Turn on fans to disperse condensation.

To conserve energy, turn off fans when not needed.
Light and
Connector
Bin
Cover
Trash Bin
30
Light
Switch
Fan
Switch
