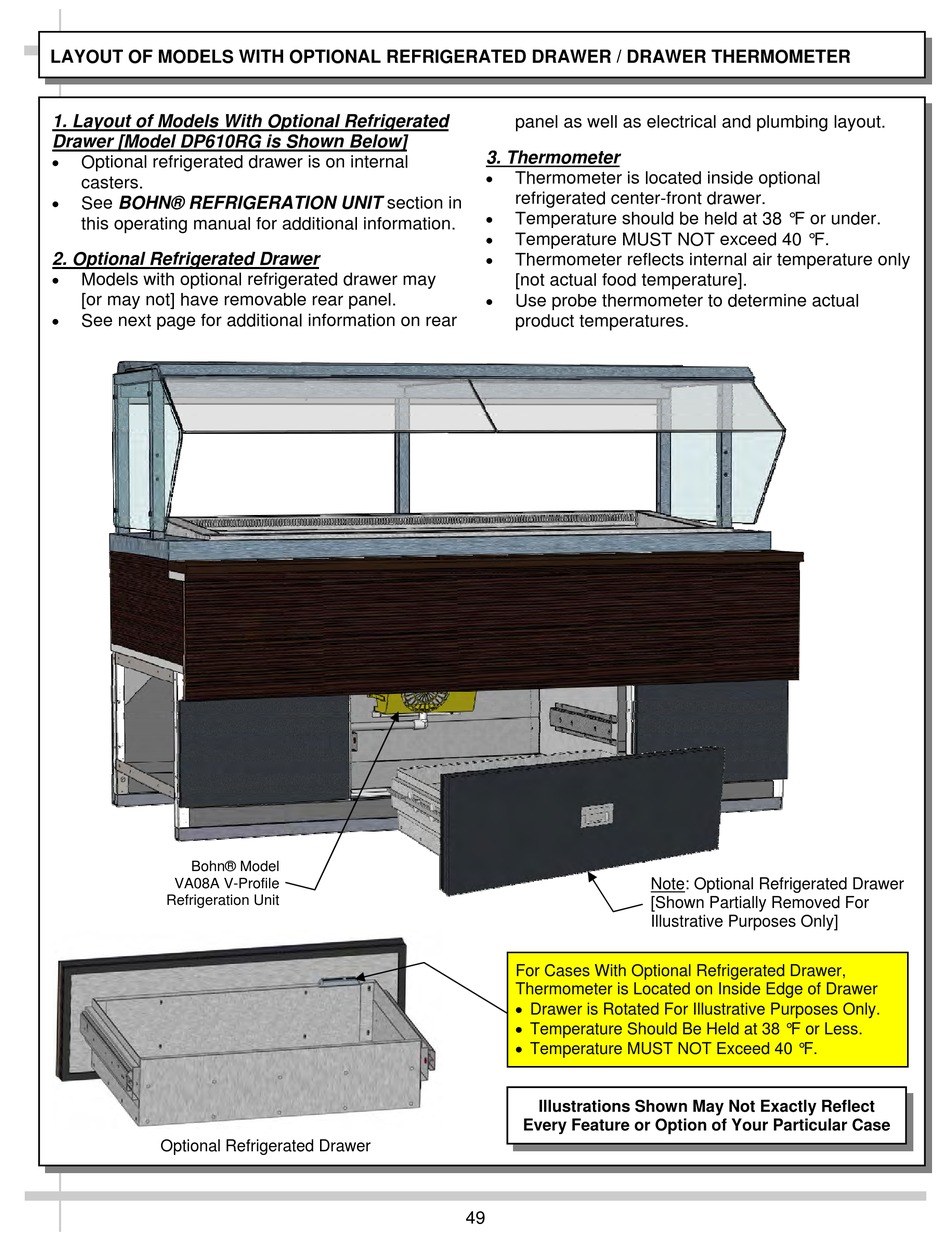

LAYOUT OF MODELS WITH OPTIONAL REFRIGERATED DRAWER / DRAWER THERMOMETER

1. Layout of Models With Optional Refrigerated
Drawer [Model DP610RG is Shown Below]

Optional refrigerated drawer is on internal
casters.

See BOHN® REFRIGERATION UNIT section in
this operating manual for additional information.
2. Optional Refrigerated Drawer

Models with optional refrigerated drawer may
[or may not] have removable rear panel.

See next page for additional information on rear
Bohn® Model
VA08A V-Profile
Refrigeration Unit
Optional Refrigerated Drawer
panel as well as electrical and plumbing layout.
3. Thermometer

Thermometer is located inside optional
refrigerated center-front drawer.

Temperature should be held at 38 °F or under.

Temperature MUST NOT exceed 40 °F.

Thermometer reflects internal air temperature only
[not actual food temperature].

Use probe thermometer to determine actual
product temperatures.
For Cases With Optional Refrigerated Drawer,
Thermometer is Located on Inside Edge of Drawer
 Drawer is Rotated For Illustrative Purposes Only.
 Temperature Should Be Held at 38 °F or Less.
 Temperature MUST NOT Exceed 40 °F.
Illustrations Shown May Not Exactly Reflect
Every Feature or Option of Your Particular Case
49
Note: Optional Refrigerated Drawer
[Shown Partially Removed For
Illustrative Purposes Only]
