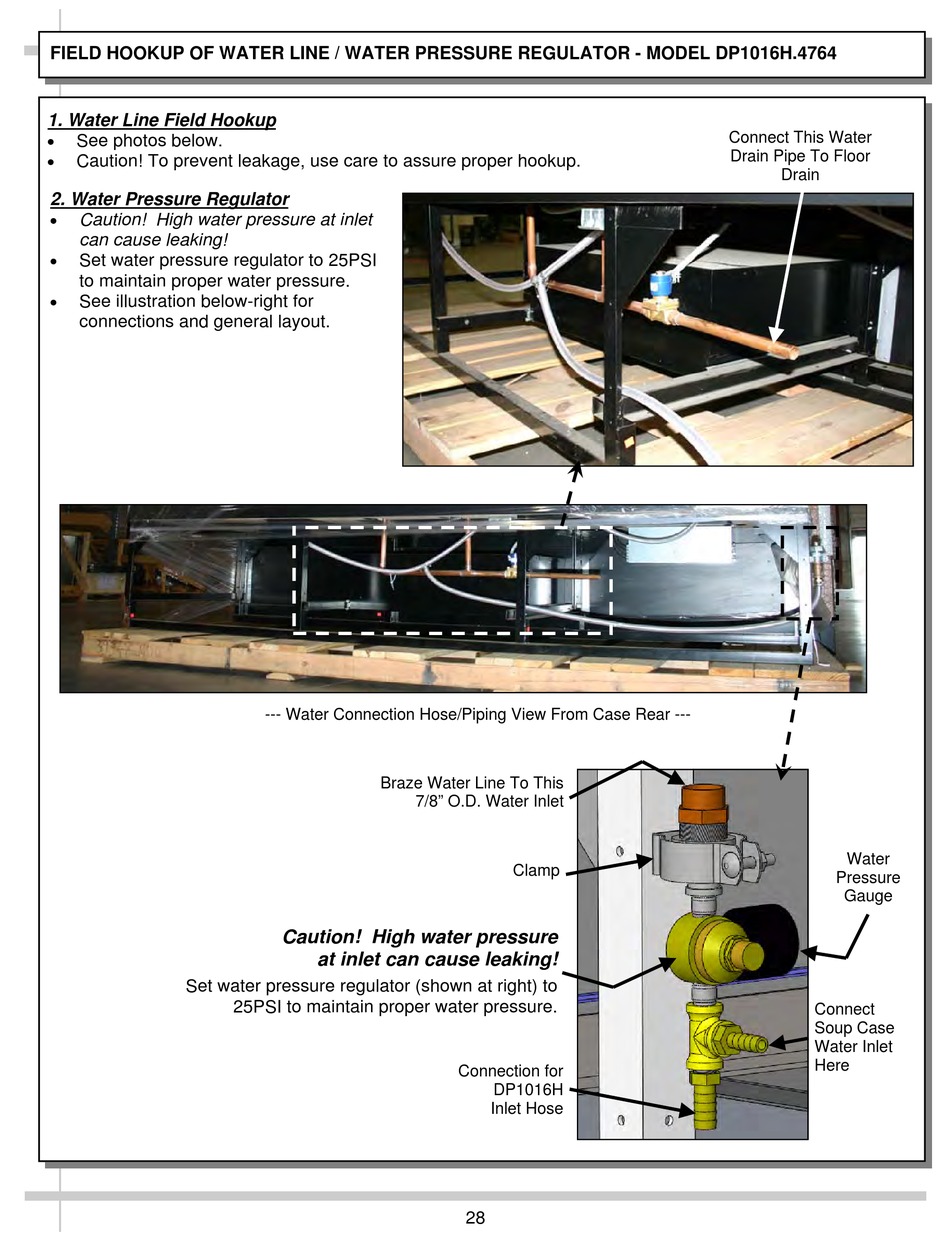

FIELD HOOKUP OF WATER LINE / WATER PRESSURE REGULATOR - MODEL DP1016H.4764
1. Water Line Field Hookup

See photos below.

Caution! To prevent leakage, use care to assure proper hookup.
2. Water Pressure Regulator

Caution! High water pressure at inlet
can cause leaking!

Set water pressure regulator to 25PSI
to maintain proper water pressure.

See illustration below-right for
connections and general layout.
Set water pressure regulator (shown at right) to
--- Water Connection Hose/Piping View From Case Rear ---
Braze Water Line To This
Caution! High water pressure
at inlet can cause leaking!
25PSI to maintain proper water pressure.
7/8" O.D. Water Inlet
Clamp
Connection for
DP1016H
Inlet Hose
28
Connect This Water
Drain Pipe To Floor
Drain
Water
Pressure
Gauge
Connect
Soup Case
Water Inlet
Here
