TRASH BIN REMOVAL / TRASH CHUTE REMOVAL (FOR CLEANING PURPOSES)
1. Trash Bin Removal

Trash bins are at left and right of case.

Trash bags are removable from each
trash bin.


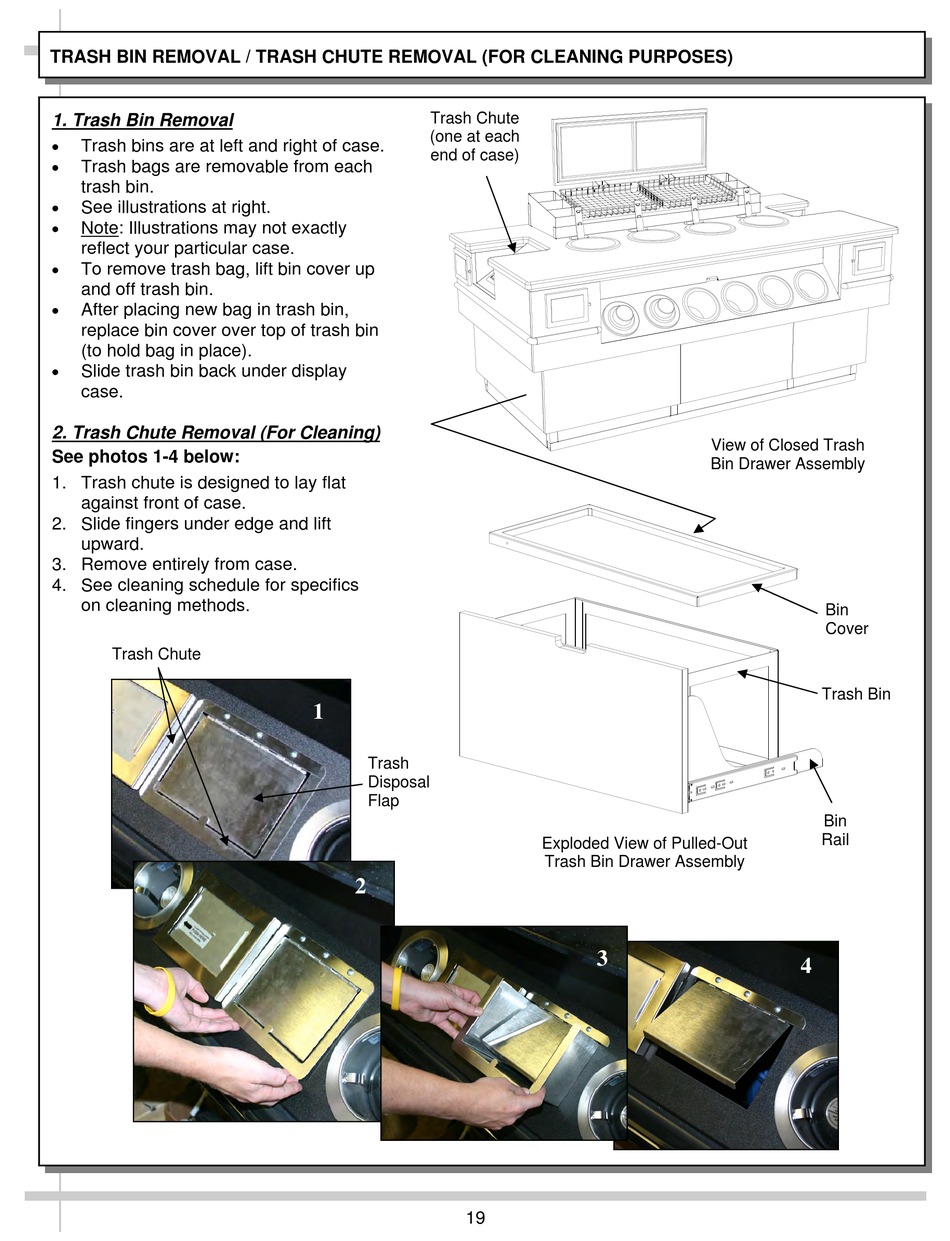

See illustrations at right.

Note: Illustrations may not exactly
reflect your particular case.

To remove trash bag, lift bin cover up
and off trash bin.

After placing new bag in trash bin,
replace bin cover over top of trash bin
(to hold bag in place).

Slide trash bin back under display
case.
2. Trash Chute Removal (For Cleaning)
See photos 1-4 below:
1. Trash chute is designed to lay flat
against front of case.
2. Slide fingers under edge and lift
upward.
3. Remove entirely from case.
4. See cleaning schedule for specifics
on cleaning methods.
Trash Chute
Trash Chute
(one at each
end of case)
1
Trash
Disposal
Flap
2
19
View of Closed Trash
Bin Drawer Assembly
Exploded View of Pulled-Out
Trash Bin Drawer Assembly
3
Bin
Cover
Trash Bin
Bin
Rail
