IMPULSE
SERVICE / SELF-SERVICE AMBIENT COUNTERTOP DISPLAY MERCHANDISERS
Model CGC2830 in Service
USER MANUALS/54151_IMPULSE_USER MANUAL_CGC(L)30_CGS(L)30_AMBIENT_SVC_SELF-SVC_CASE
CAREFULLY FOLLOW THESE INSTRUCTIONS
Position and Downward
Angled Shelves
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
USER
MANUAL

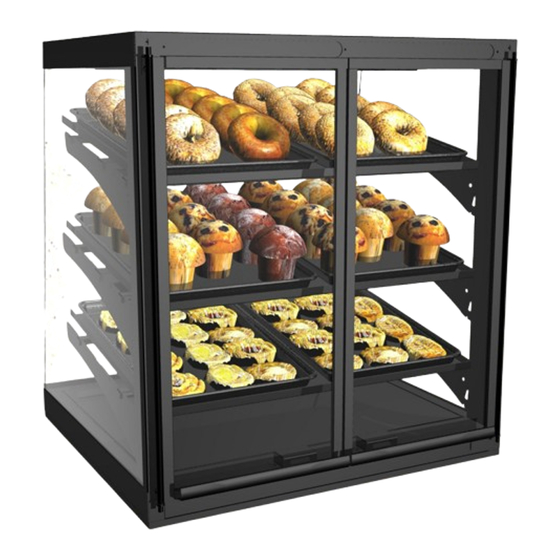

Model CGC2830 in Self-Service
Position and Upward Angled
Shelves
Model CGC2830
Dimensions: 28 "L x 25"D x 30 1/2"H
Model CGC3830
Dimensions: 38 "L x 25"D x 30 1/2"H
Model CGS2830
Dimensions: 28 "L x 25"D x 30 1/2"H
Model CGS3830
Dimensions: 38 "L x 25"D x 30 1/2"H
SCC P/N
54151
REV H DATE: 11/22/2022
Advertisement
Table of Contents
Related Manuals for Structural Concepts IMPULSE CGC2830
Summary of Contents for Structural Concepts IMPULSE CGC2830
- Page 1 Dimensions: 28 ”L x 25”D x 30 1/2”H Model CGS3830 Dimensions: 38 ”L x 25”D x 30 1/2”H Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com USER MANUALS/54151_IMPULSE_USER MANUAL_CGC(L)30_CGS(L)30_AMBIENT_SVC_SELF-SVC_CASE REV H DATE: 11/22/2022...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS ..…..….. START-UP AND OPERATION: CASE PLACEMENT / SERVICE vs. SELF-SERVICE SHELF SET-UP …………………………………………………………………………………………………... START-UP AND OPERATION, CONTINUED: BASE SPACER / POWER CORD LENGTH / CORD CLAMP …………………………………………………………………………………………………... -
Page 3: Overview / Type / Compliance / Warnings / Precautions / Wiring / Plugs
OVERVIEW / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM / CORDS & PLUGS PRECAUTIONS OVERVIEW • • These Structural Concepts cases should be installed and Following are important precautions to prevent damage to unit or merchandise. Read carefully! operated according to these instructions to ensure proper performance. Improper use will void warranty. -
Page 4: Set-Up
START-UP AND OPERATION: CASE PLACEMENT / SERVICE VS. SELF-SERVICE SHELF SET-UP 1. Case Placement No Open Slots • Remove case from skid. • Before placing case on counter, determine if the case will merchandize as a front or rear-mounted case. 1 Open Slot •... -
Page 5: Clamp
START-UP AND OPERATION, CONTINUED: BASE SPACER / POWER CORD LENGTH / CORD CLAMP 4. Base Spacer / Power Cord Length / Clamp • Note: The National Sanitation Foundation (NSF®) requires the following two steps be done before Locate base spacer in location to put case (cord notch this case can be used. -
Page 6: Led Lighting (Standard)
To remove faulty LED light, simply grasp light near retaining spring and carefully pull away from its spring. Disconnect plug from LED’s socket. • Contact Structural Concepts’ Technical Service Department for replacement parts (see Technical Service section of this manual for information). Replacement of LED light: •... -
Page 7: Fluorescent Lighting (Optional)
FLUORESCENT LIGHTING (OPTIONAL) Lighting Installation of lamp: • Align pins with slot. Warning! Disconnect power before providing • Insert pins into socket by rotating the bulb maintenance and service to unit. 1/4-turn to secure either the (upper or lower) Caution: Lamps have been treated to resist pin contacts into the sockets. -
Page 8: Troubleshooting
TROUBLESHOOTING Case Lights Not Working Check bulbs for proper installation and connection. Check for burned out bulbs. Clean dirt and dust from the bulbs to prevent flickering. System is not Operating Confirm the utility power is on (authorized personnel only). Check the circuit breaker box for tripped circuits (authorized personnel only). - Page 9 CLEANING SCHEDULE Cleaning Daily Weekly Task Clean all glass surfaces with a household or commercial glass Interior/Exterior cleaner and a soft cloth. Clean the deck and shelving surfaces with damp cloth. For stubborn stains or hardened residue, use hot, soapy water and soft-bristled brush.
-
Page 10: Serial Label Location & Information Listed / Tech Info & Service
TECHNICAL SERVICE page in this manual for • Serial labels are affixed at a wide range of places instructions on contacting Structural Concepts’ (on the header, at case rear, behind panels or Technical Service Department. toe-kicks, on electrical boxes, etc.). -
Page 11: Technical Service Contact Information / Warranty Information
STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY YOU MUST HAVE THE FOLLOWING INFO AVAILABLE TECH SERVICE/WARRANTY CONTACT INFO: BEFORE CONTACTING STRUCTURAL CONCEPTS: 1 (800) 433-9490 / EXTENSION 1 SERIAL NO. / MODEL NO. / STORE NO. / STORE...
