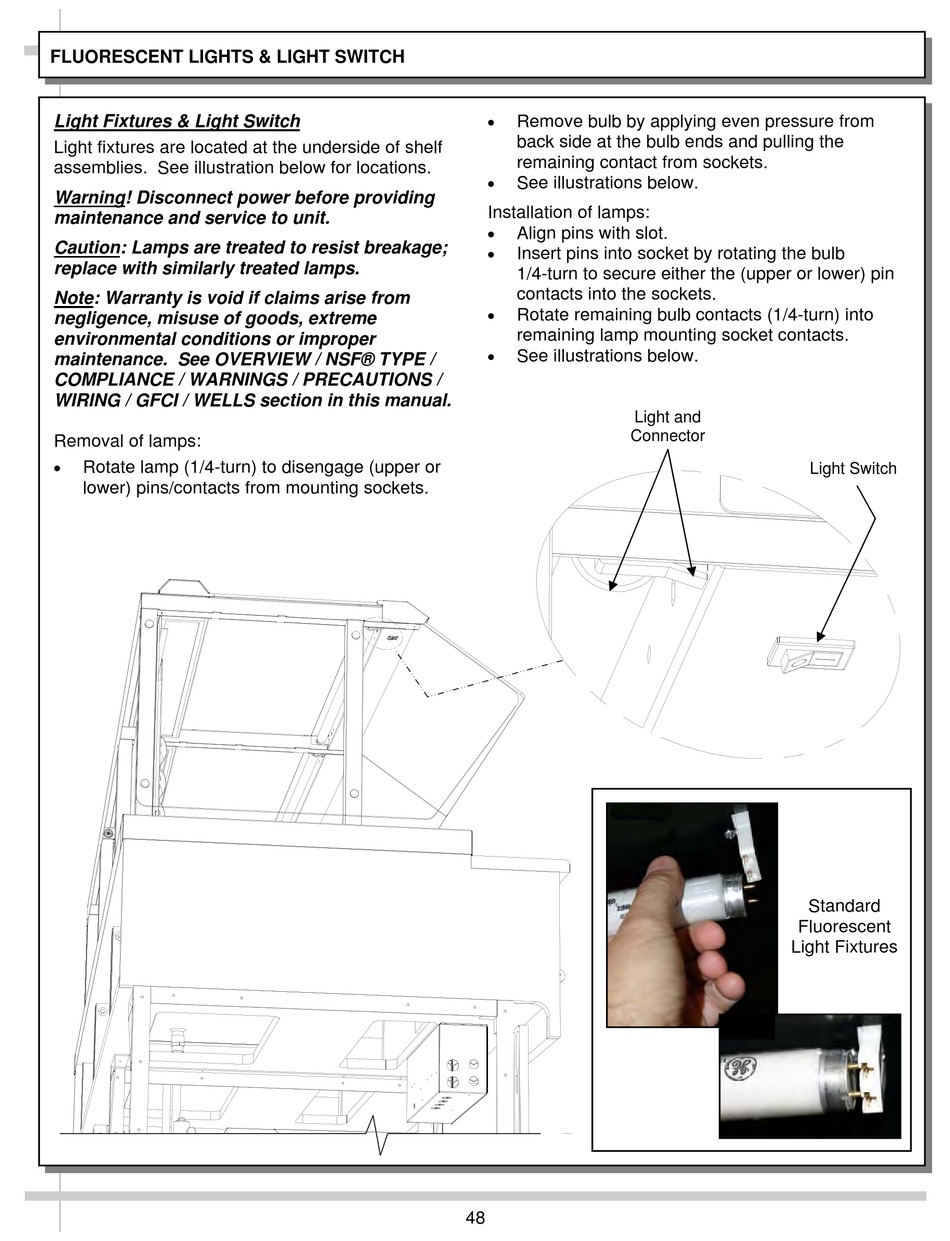

FLUORESCENT LIGHTS & LIGHT SWITCH
Light Fixtures & Light Switch
Light fixtures are located at the underside of shelf
assemblies. See illustration below for locations.
Warning! Disconnect power before providing
maintenance and service to unit.
Caution: Lamps are treated to resist breakage;
replace with similarly treated lamps.
Note: Warranty is void if claims arise from
negligence, misuse of goods, extreme
environmental conditions or improper
maintenance. See OVERVIEW / NSF® TYPE /
COMPLIANCE / WARNINGS / PRECAUTIONS /
WIRING / GFCI / WELLS section in this manual.
Removal of lamps:

Rotate lamp (1/4-turn) to disengage (upper or
lower) pins/contacts from mounting sockets.

Remove bulb by applying even pressure from
back side at the bulb ends and pulling the
remaining contact from sockets.

See illustrations below.
Installation of lamps:

Align pins with slot.

Insert pins into socket by rotating the bulb
1/4-turn to secure either the (upper or lower) pin
contacts into the sockets.

Rotate remaining bulb contacts (1/4-turn) into
remaining lamp mounting socket contacts.

See illustrations below.
Light and
Connector
48
Light Switch
Standard
Fluorescent
Light Fixtures
