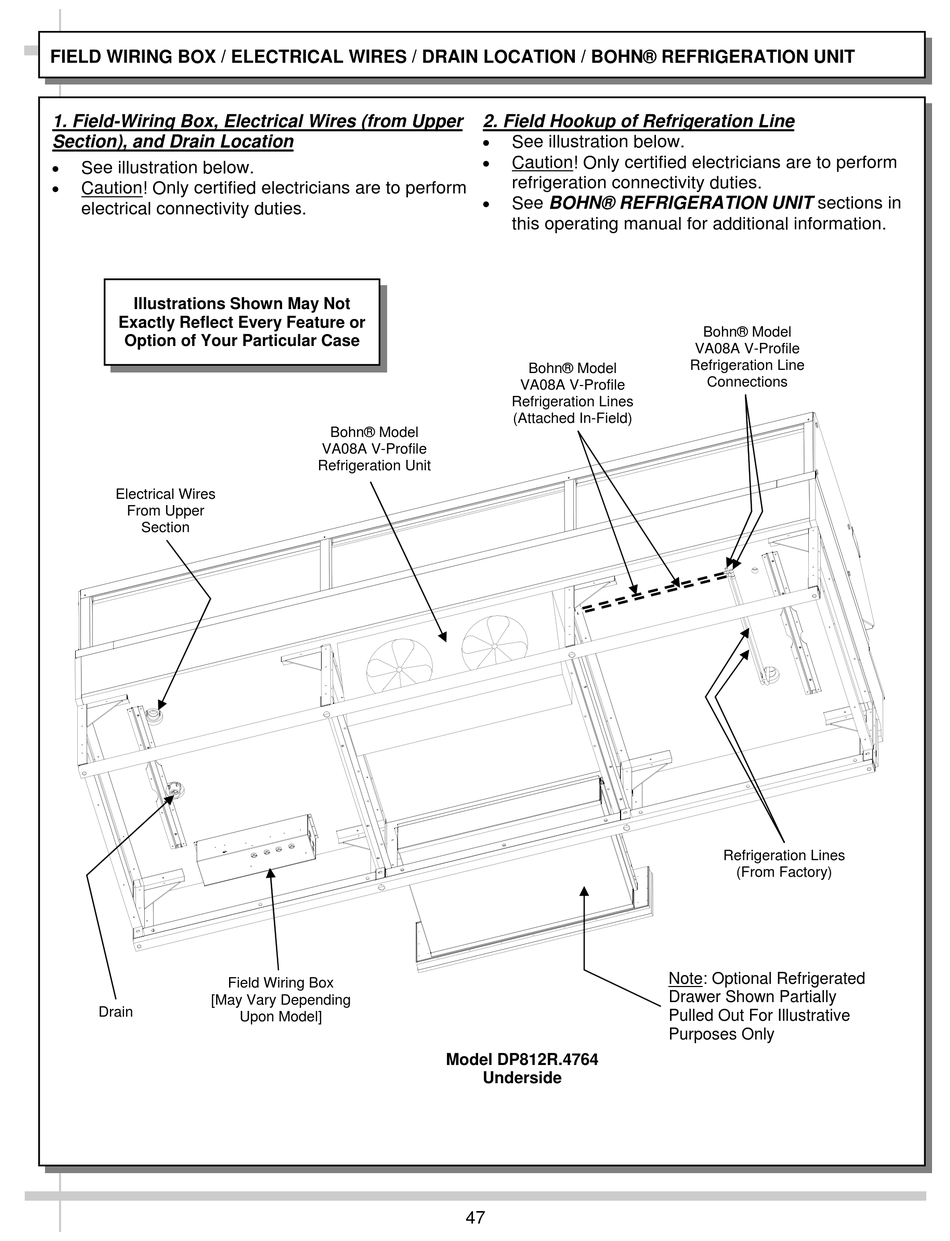

FIELD WIRING BOX / ELECTRICAL WIRES / DRAIN LOCATION / BOHN® REFRIGERATION UNIT
1. Field-Wiring Box, Electrical Wires (from Upper
Section), and Drain Location

See illustration below.

Caution! Only certified electricians are to perform
electrical connectivity duties.
Illustrations Shown May Not
Exactly Reflect Every Feature or
Option of Your Particular Case
Electrical Wires
From Upper
Section
Field Wiring Box
[May Vary Depending
Drain
Bohn® Model
VA08A V-Profile
Refrigeration Unit
Upon Model]
2. Field Hookup of Refrigeration Line

See illustration below.

Caution! Only certified electricians are to perform
refrigeration connectivity duties.

See BOHN® REFRIGERATION UNIT sections in
this operating manual for additional information.
Bohn® Model
VA08A V-Profile
Refrigeration Lines
(Attached In-Field)
Model DP812R.4764
Underside
47
Bohn® Model
VA08A V-Profile
Refrigeration Line
Connections
Refrigeration Lines
(From Factory)
Note: Optional Refrigerated
Drawer Shown Partially
Pulled Out For Illustrative
Purposes Only
