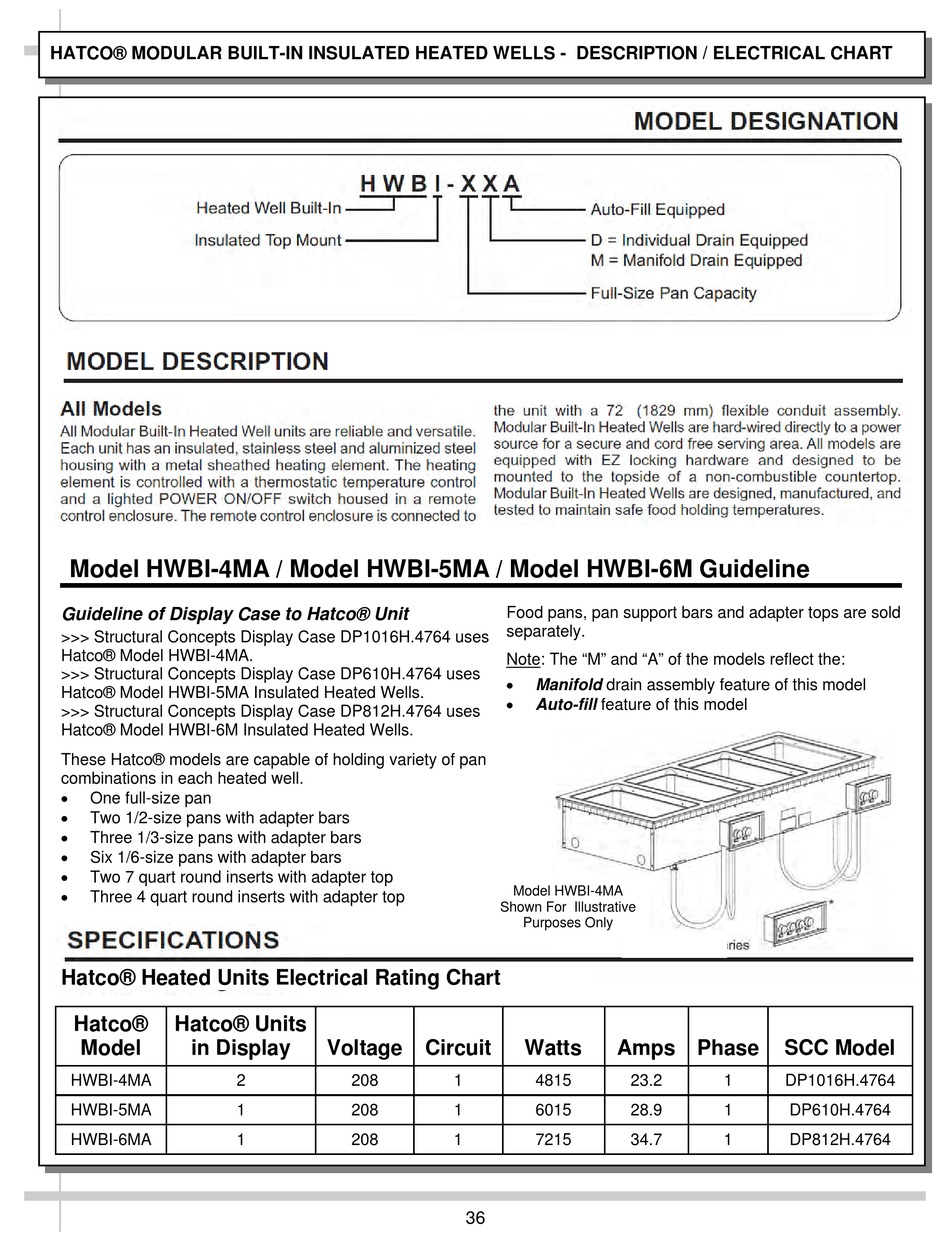

HATCO® MODULAR BUILT-IN INSULATED HEATED WELLS - DESCRIPTION / ELECTRICAL CHART
Model HWBI-4MA / Model HWBI-5MA / Model HWBI-6M Guideline
Guideline of Display Case to Hatco® Unit
>>> Structural Concepts Display Case DP1016H.4764 uses
Hatco® Model HWBI-4MA.
>>> Structural Concepts Display Case DP610H.4764 uses
Hatco® Model HWBI-5MA Insulated Heated Wells.
>>> Structural Concepts Display Case DP812H.4764 uses
Hatco® Model HWBI-6M Insulated Heated Wells.
These Hatco® models are capable of holding variety of pan
combinations in each heated well.

One full-size pan

Two 1/2-size pans with adapter bars

Three 1/3-size pans with adapter bars

Six 1/6-size pans with adapter bars

Two 7 quart round inserts with adapter top

Three 4 quart round inserts with adapter top
Hatco® Heated Units Electrical Rating Chart
Hatco® Hatco® Units
Model in Display
HWBI-4MA
HWBI-5MA
HWBI-6MA
Voltage
2 208
1 208
1 208
Food pans, pan support bars and adapter tops are sold
separately.
Note: The "M" and "A" of the models reflect the:

Manifold drain assembly feature of this model

Auto-fill feature of this model
Model HWBI-4MA
Shown For Illustrative
Purposes Only
Circuit Watts
1 4815
1 6015
1 7215
36
Amps Phase SCC Model
23.2 1 DP1016H.4764
28.9 1 DP610H.4764
34.7 1 DP812H.4764
