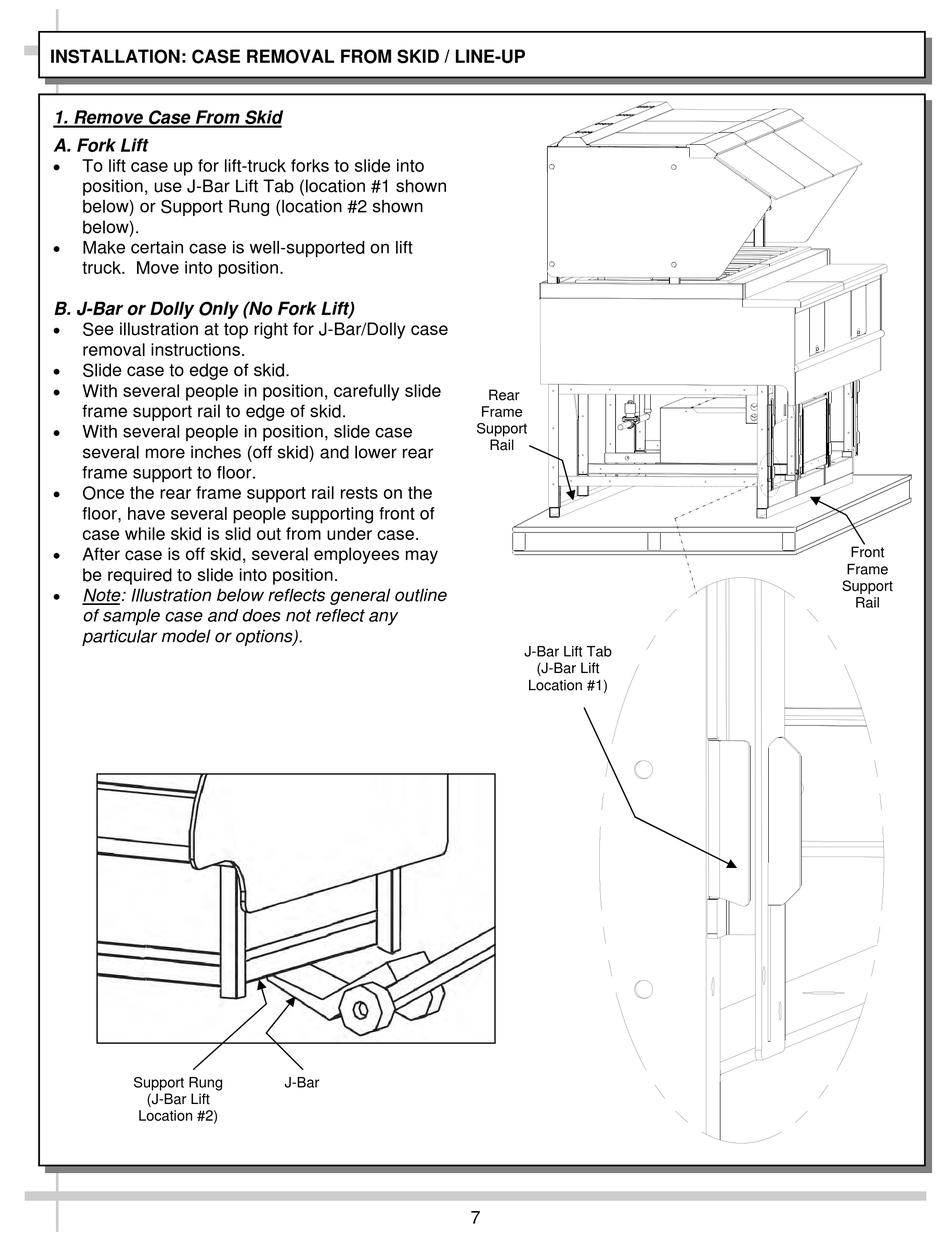

INSTALLATION: CASE REMOVAL FROM SKID / LINE-UP

1. Remove Case From Skid
A. Fork Lift

To lift case up for lift-truck forks to slide into
position, use J-Bar Lift Tab (location #1 shown
below) or Support Rung (location #2 shown
below).

Make certain case is well-supported on lift
truck. Move into position.
B. J-Bar or Dolly Only (No Fork Lift)

See illustration at top right for J-Bar/Dolly case
removal instructions.

Slide case to edge of skid.

With several people in position, carefully slide
frame support rail to edge of skid.

With several people in position, slide case
several more inches (off skid) and lower rear
frame support to floor.

Once the rear frame support rail rests on the
floor, have several people supporting front of
case while skid is slid out from under case.

After case is off skid, several employees may
be required to slide into position.

Note: Illustration below reflects general outline
of sample case and does not reflect any
particular model or options).
Support Rung
(J-Bar Lift
Location #2)
J-Bar
Rear
Frame
Support
Rail
J-Bar Lift Tab
(J-Bar Lift
Location #1)
7
Front
Frame
Support
Rail
