CONDENSATION FANS / CONDENSATION FAN FILTER

1. Condensation Fans

Depending upon environment, condensation on
sneeze guards (caused by heat) pans could
occur.

See previous sheet for location of switch that
turns on all condensation fans.

To conserve energy, turn off fans when not
needed.
Condensation fan (for
defogging sneeze guard)
shown hidden.
Four fans (4) per case.
2. Condensation Fan Filter

Each section of case (three total) has its own
condensation fan filter.

Filter is magnetically held in place.

Filter may be removed for cleaning purposes.

See CLEANING SCHEDULE - GENERAL for
method and frequency of cleaning condensation
fan filters.
Magnetic Fan Filter.
Three (3) per case.
31

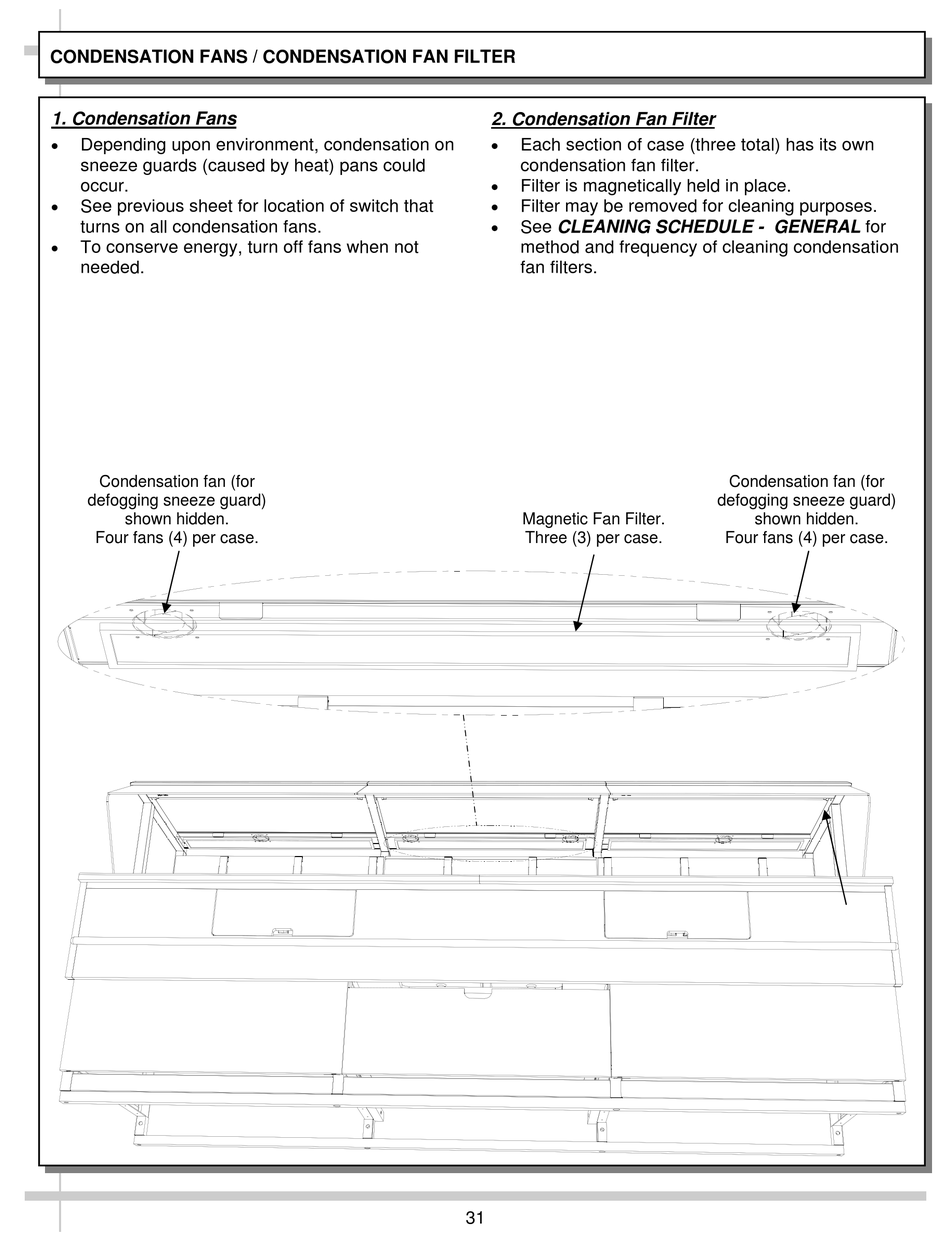

Condensation fan (for
defogging sneeze guard)
shown hidden.
Four fans (4) per case.
