Structural Concepts Impulse 62486 Operating Manual page 54

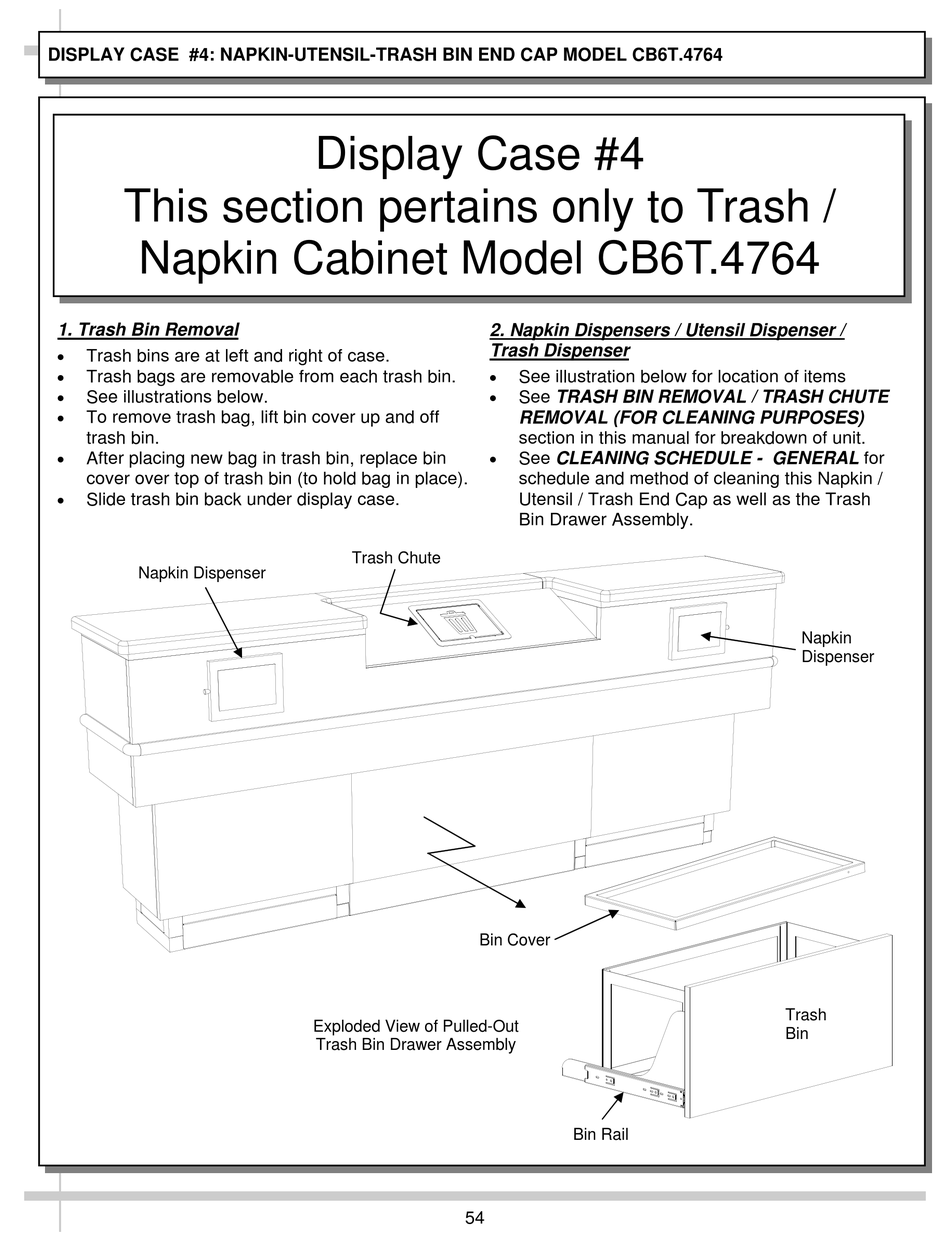

DISPLAY CASE #4: NAPKIN-UTENSIL-TRASH BIN END CAP MODEL CB6T.4764
This section pertains only to Trash /
Napkin Cabinet Model CB6T.4764
1. Trash Bin Removal

Trash bins are at left and right of case.

Trash bags are removable from each trash bin.

See illustrations below.

To remove trash bag, lift bin cover up and off
trash bin.

After placing new bag in trash bin, replace bin
cover over top of trash bin (to hold bag in place).

Slide trash bin back under display case.
Napkin Dispenser
Display Case #4
2. Napkin Dispensers / Utensil Dispenser /
Trash Dispenser



Trash Chute
Bin Cover
Exploded View of Pulled-Out
Trash Bin Drawer Assembly
54
See illustration below for location of items
See TRASH BIN REMOVAL / TRASH CHUTE
REMOVAL (FOR CLEANING PURPOSES)
section in this manual for breakdown of unit.
See CLEANING SCHEDULE - GENERAL for
schedule and method of cleaning this Napkin /
Utensil / Trash End Cap as well as the Trash
Bin Drawer Assembly.
Bin Rail
Napkin
Dispenser
Trash
Bin
