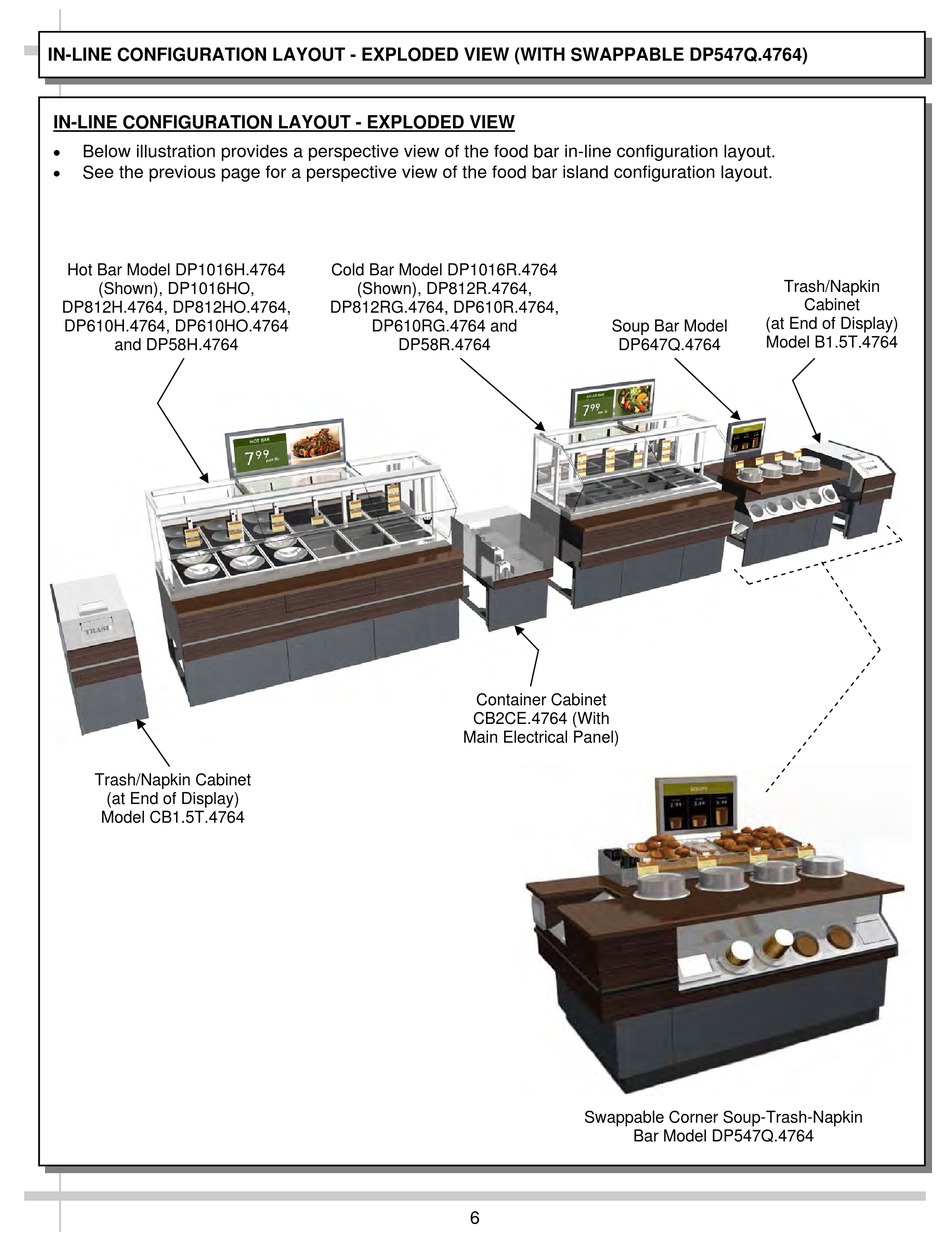

IN-LINE CONFIGURATION LAYOUT - EXPLODED VIEW (WITH SWAPPABLE DP547Q.4764)

IN-LINE CONFIGURATION LAYOUT - EXPLODED VIEW

Below illustration provides a perspective view of the food bar in-line configuration layout.

See the previous page for a perspective view of the food bar island configuration layout.
Hot Bar Model DP1016H.4764
(Shown), DP1016HO,
DP812H.4764, DP812HO.4764,
DP610H.4764, DP610HO.4764
and DP58H.4764
Trash/Napkin Cabinet
(at End of Display)
Model CB1.5T.4764
Cold Bar Model DP1016R.4764
(Shown), DP812R.4764,
DP812RG.4764, DP610R.4764,
DP610RG.4764 and
DP58R.4764
Container Cabinet
CB2CE.4764 (With
Main Electrical Panel)
6
Soup Bar Model
DP647Q.4764
Swappable Corner Soup-Trash-Napkin
Bar Model DP547Q.4764
Trash/Napkin
Cabinet
(at End of Display)
Model B1.5T.4764
