ACCESSING:

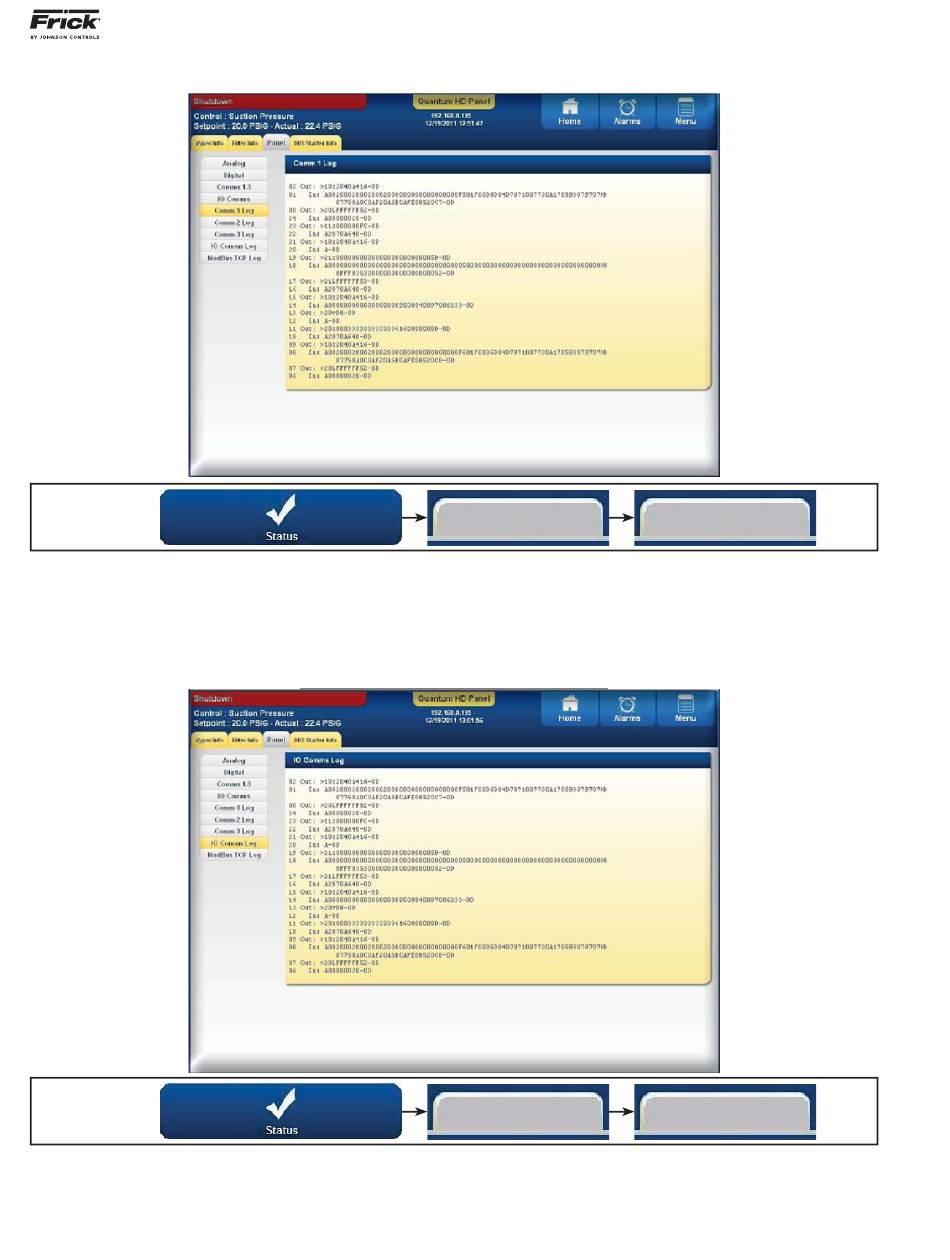

DESCRIPTION: The screen shown above represents the
Comm 1 communications log, however, the same style
screen will appear for Comm 2 and Comm 3 also, with the
title being replaced to refl ect the Comm log that is being
ACCESSING:
DESCRIPTION: The screen shown above represents the
combined activity of all serial communications, viewable
at one time. This is an informational screen only, and pro-
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
STATUS - Panel (Comm 1-3 Log)
STATUS - Panel (IO Comms Log)

Panel

viewed. This is an informational screen only, and provides
a listing of the most recent data that has been sent or
received from the port being viewed.
g g g g g g g
Panel
vides a listing of the most recent data that has been sent
or received through all serial communications.
