090.040-M (MAR 12)
Page 94
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE

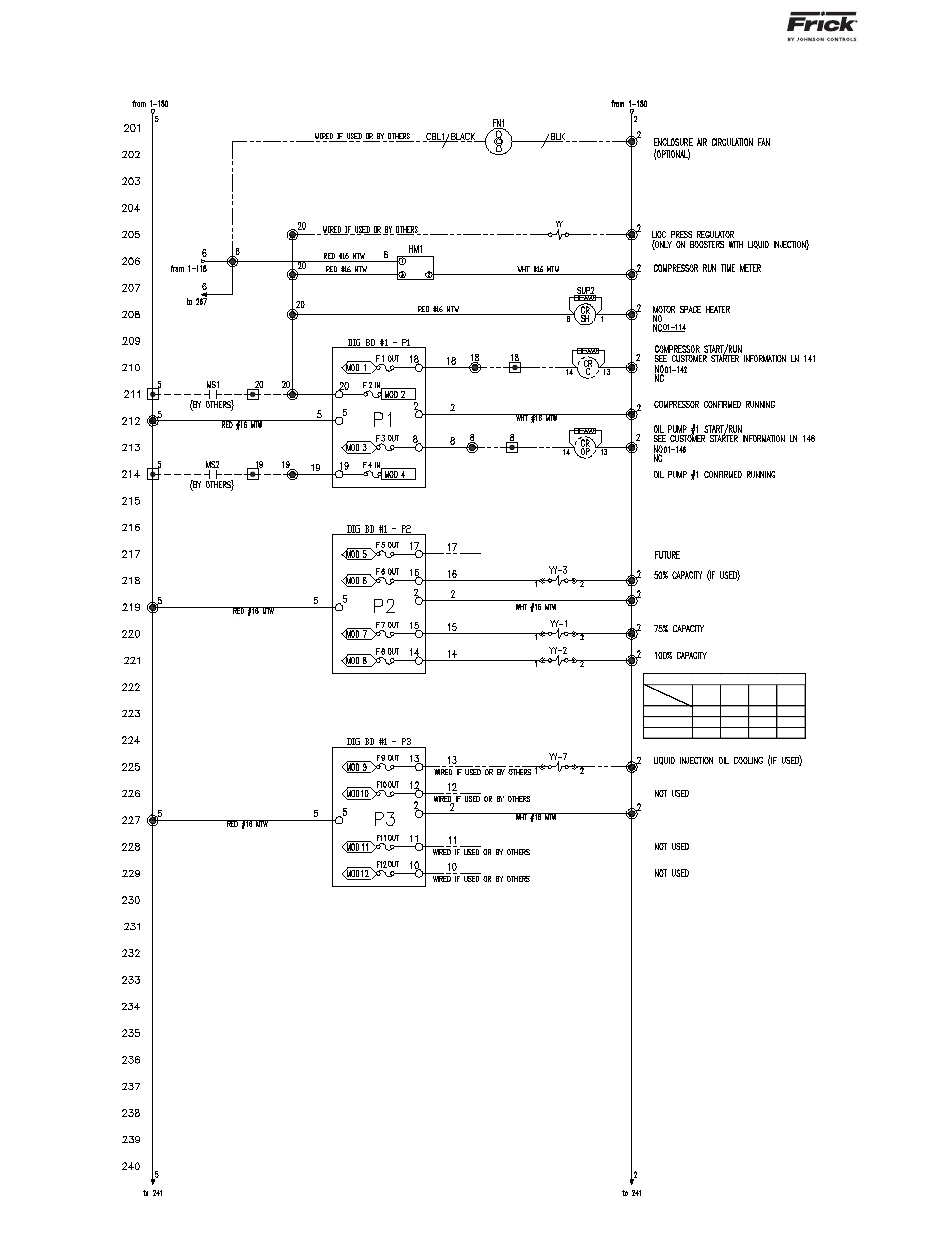

WIRING DIAGRAM – RDB (Sheet 3 of 6)
CAPACITY OUTPUTS
% CAP.
*
SOL
25
50
75
100
* 50%
OFF
ON
ON
ON
75%
OFF
OFF
ON
ON
100%
OFF
OFF
OFF
ON
