ACCESSING:

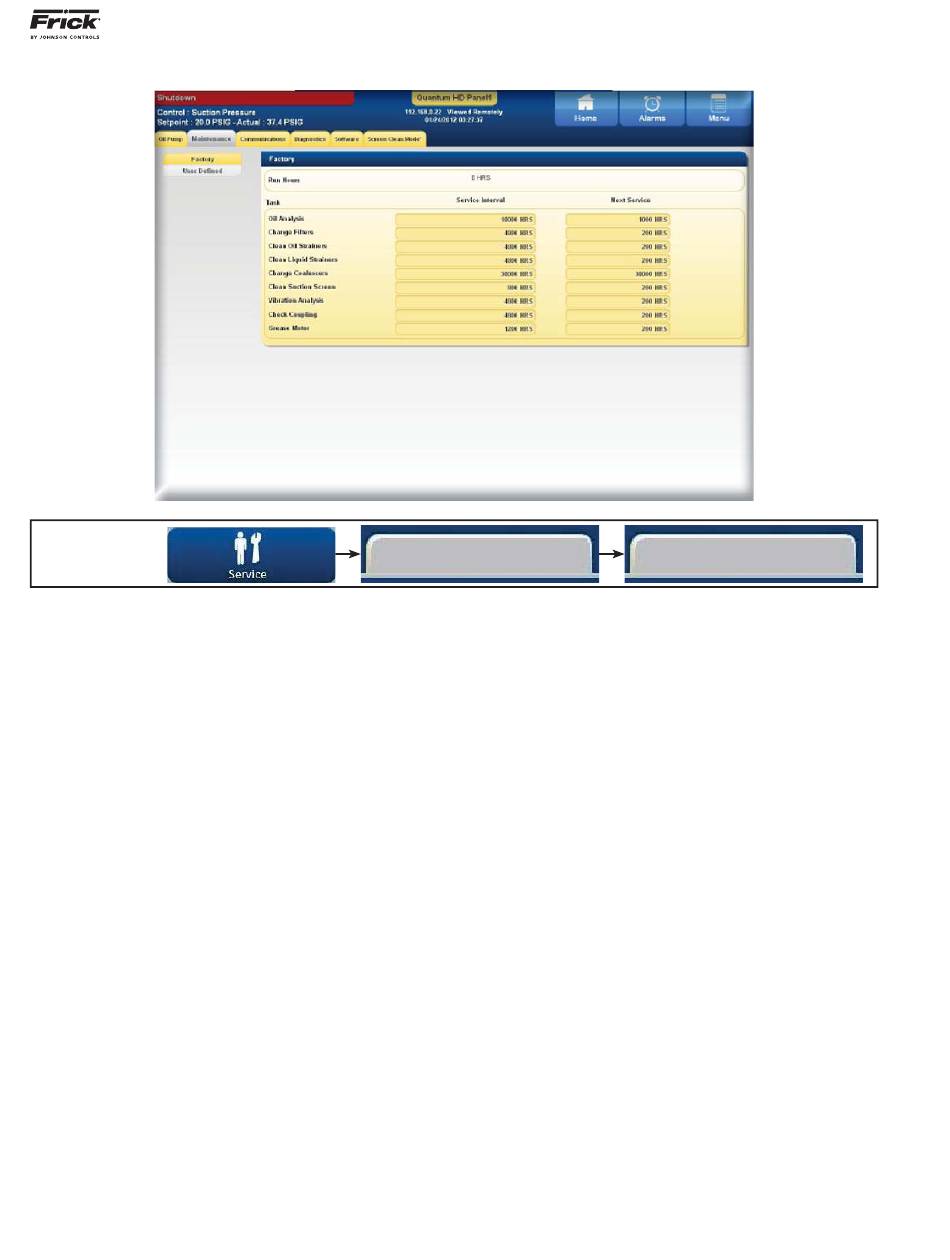

DESCRIPTION: This screen has been provided to aid the
service technician with keeping track of system mainte-
nance, and can be accessed from the main Menu. The
Tasks will appear on the Events screen after the Next Ser-
vice values has been reached.
The following additional information is provided on this
screen:
Run Hours - The value shown here is the total num-
ber of hours that the compressor motor has actually
been in the running state. This value can be reset
(or changed to any value from 0 to 1,000,000 Hours)
from the Confi guration > Package screen.
Task - This column shows a list of nine pre-defi ned
maintenance items that may be tracked (an additional
7 custom items may be tracked on the User Defi ned
screen, see the next page):
• Oil Analysis
• Change Filters
• Clean Oil Strainers
• Change Coalescers
• Clean Suction Screen
• Vibration Analysis
• Check Coupling
• Grease Motor
Service Interval - This column defi nes a period of
time (in hours) that will cause messages from the
Task column to be logged into the Event Log. Set this
column to the number of hours between the main-
tenance check that is defi ned as the Task. Once this
time has been achieved, a message will be logged in
the Event Log, and the value that is currently shown
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
SERVICE - Maintenance (Factory)
Maintenance
y y y y y
in the Next Service column will have the value from
the Service Interval added to it.
Next Service - This column is initially is set to a
default value, which the user may change. Once
changed, this value will become the number of hours
that the compressor must run before the particu-
lar Task will be logged into the Event Log. Once the
event has occurred, this value will then be updated by
the value from the Service Interval column.
EXAMPLE: We will use Oil Analysis for instance. When
the compressor is running, the value in the Next Service
column is being clocked. After 1000 hours of compres-
sor run time, a message will be generated and placed on
the Event Log screen. This particular message will read
Oil Analysis, with a date/time stamp. This message will
remain in the Event Log until cleared. This message is to
notify the operator that it is time to have the Oil checked.
At this point, the operator should notify the proper main-
tenance personnel that the appropriate maintenance be
performed. The user should access the Event Screen on
a regular basis (perhaps once per week) to review the
information provided there.
Once the message has been entered in the Event Log,
the values for the row will be automatically updated, with
new values as predetermined by an internal programmed
maintenance schedule. The values for the Next Service
column are based upon the Compressor Run Time hours.
From here, the service technician can view nine mainte-
nance schedules. This screen is based upon the Mainte-
nance Schedule that is provided in the IOM manual for the
specifi c compressor package.
