090.040-M (MAR 12)
QUANTUM™ HD COMPRESSOR CONTROL PANEL
Page 86
MAINTENANCE

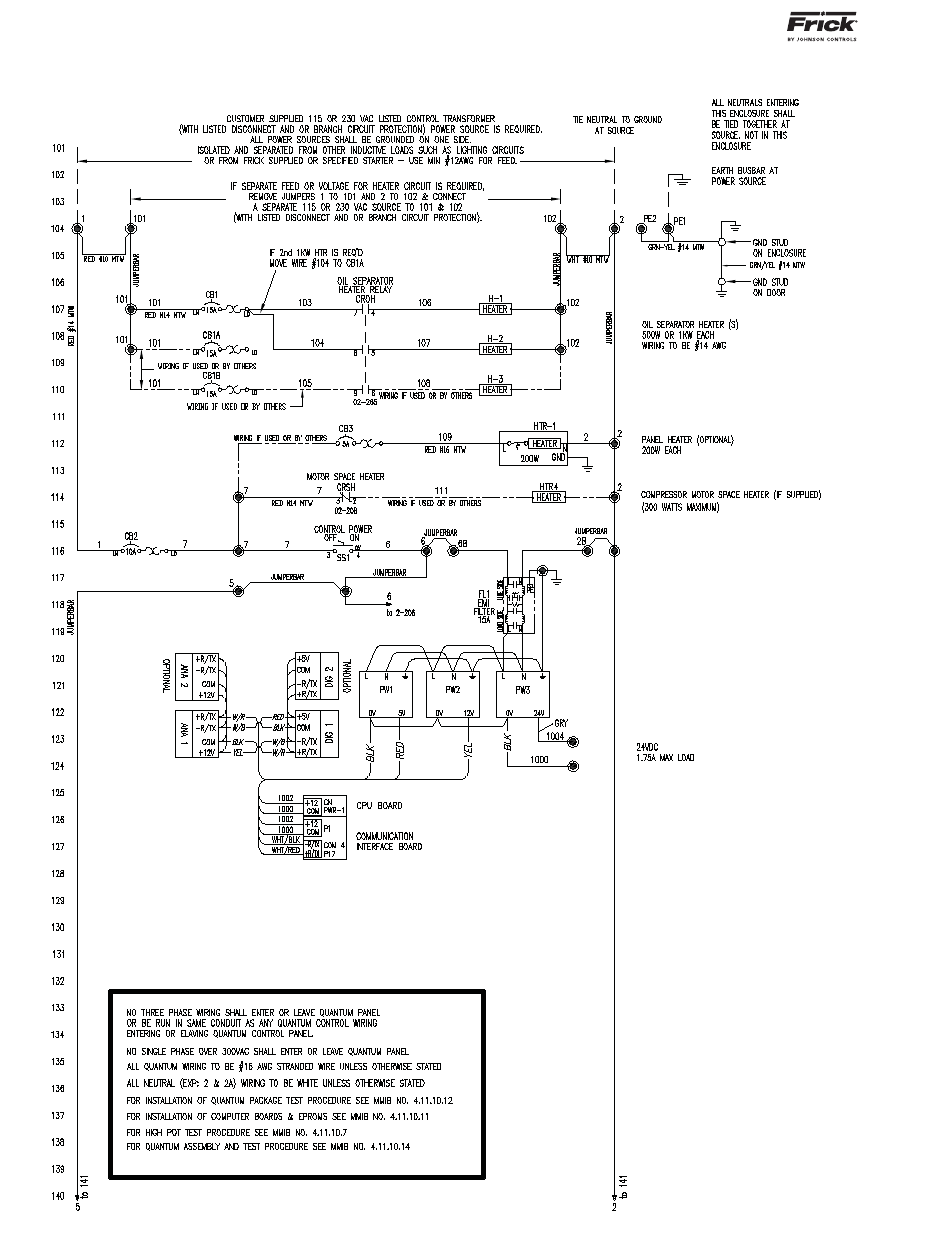

WIRING DIAGRAM – RWBII WITH CAPACITY SLIDE POTENTIOMETER (Sheet 1 of 6)
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
