ACCESSING:

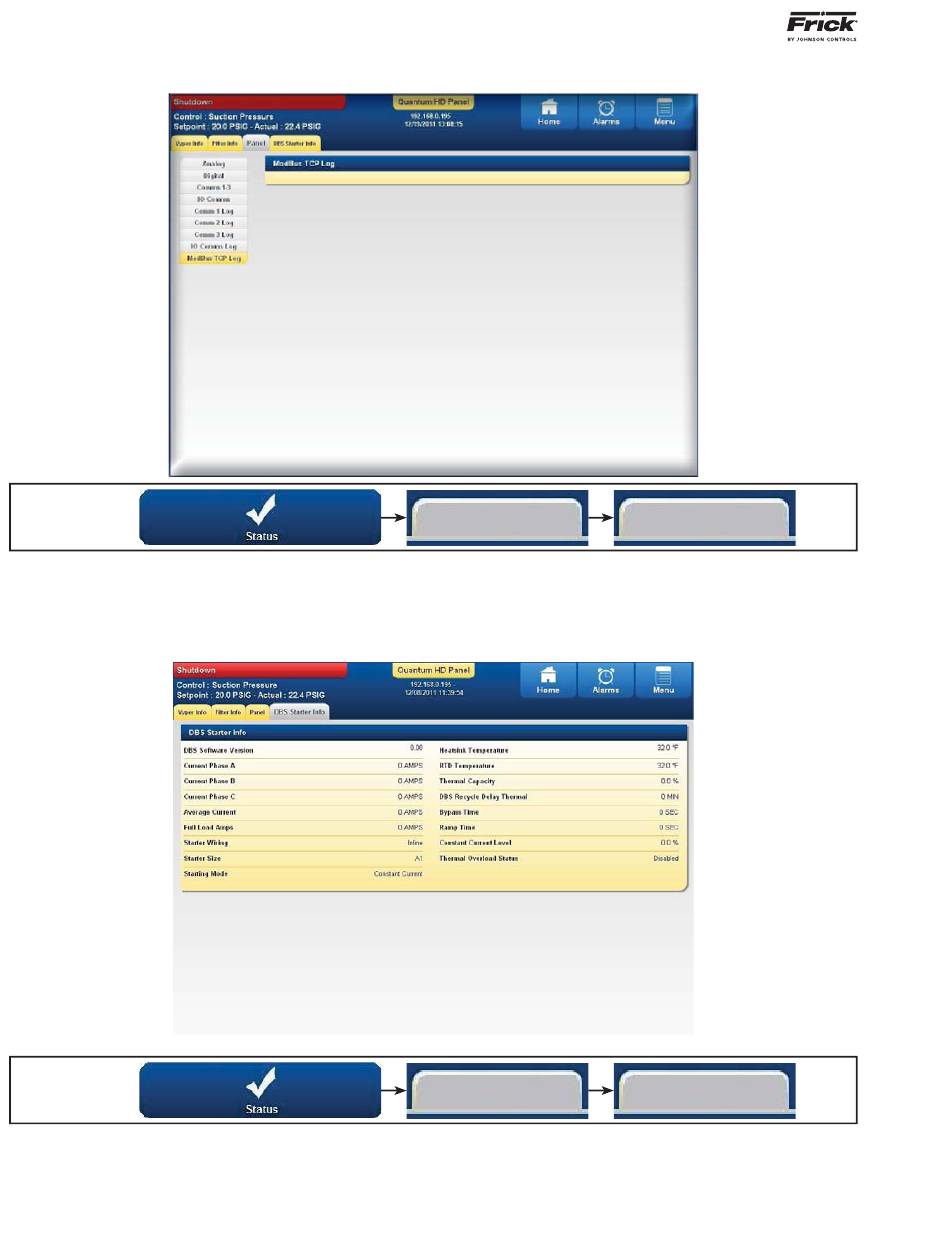

DESCRIPTION: The screen shown above represents the
ModBus communications packages that have been sent or
ACCESSING:
DESCRIPTION: This screen is for informational purposes
only, as there is nothing that can be changed. The data
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
STATUS - Panel (ModBus TCP Log)
STATUS - DBS Starter Info
Panel
received from all serial communications, viewable at one
time. This is an informational screen only.
Panel
that is populated here is received via serial communica-
tions from an optional DBS Solid State drive unit.
(If

ModBus TCP Log

Used)
(If

DBS Starter

Used)
