24 VDC Power LED (D5)
Vibration Jumpers
Gain
LK3
LK4
Ration
Out
Out
1 : 1
Out *
In *
11 : 1
LK3
In
Out
21 : 1
In
In
31 : 1
* Default
SW1
Active LED (D9)
Tx LED (D8)
Rx LED (D7)
LK1
(Defaulted with jumper out)
LK5
(For Q4 - Must be removed
For Q5 - Must be installed)
LK6
(For Q4 - Pins 1 to 2 jumpered
For Q5 - Pins 2 to 3 jumpered)
12 VDC Power LED (D1)
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE

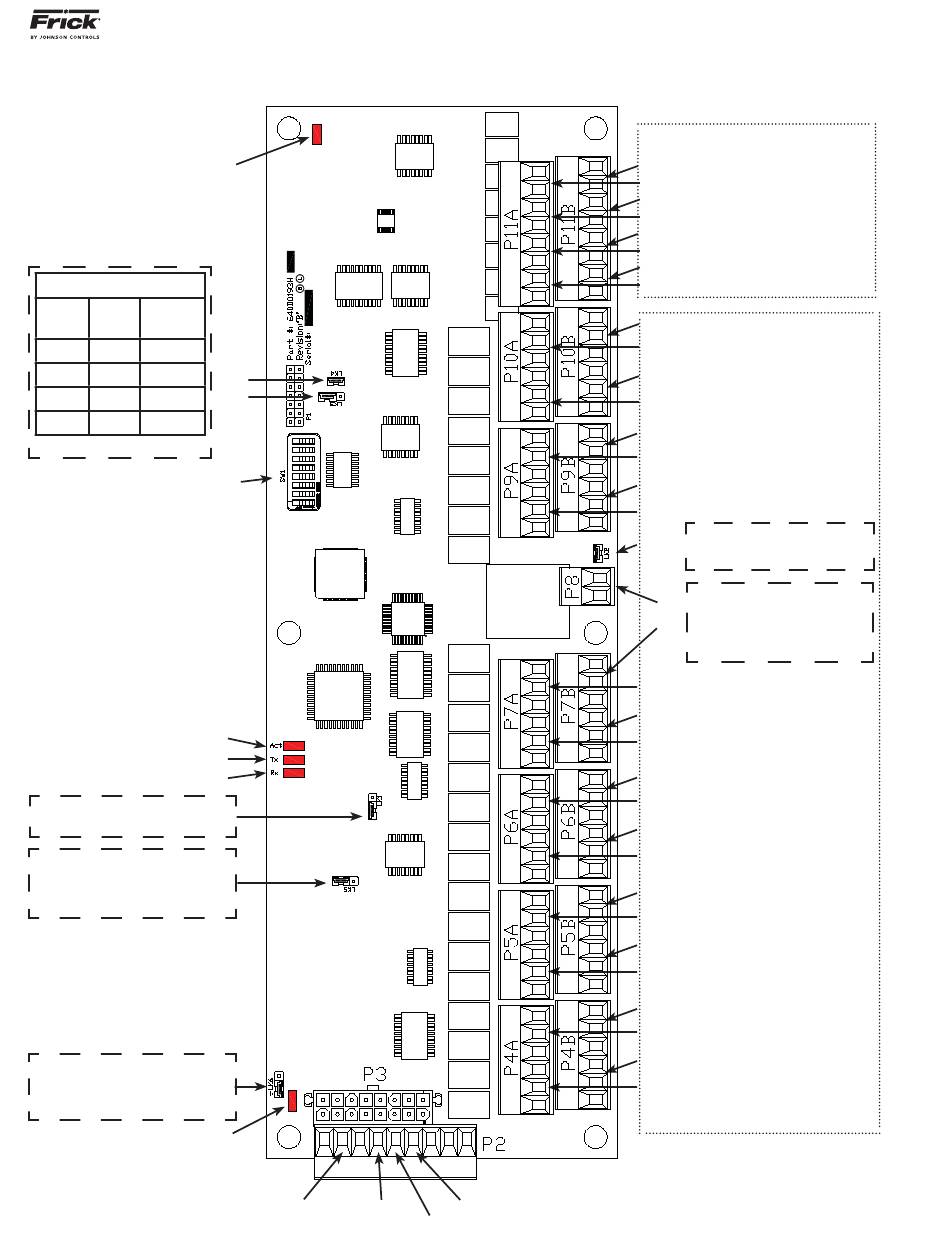

ANALOG BOARD #1 PICTORIAL
LK4
+12 VDC
COM
-Tx/-Rx
+Tx/+RX
090.040-M (MAR 12)
Page 39
OUTPUTS
CH8
CH4
CH7
CH3
CH6
CH2
CH5
CH1
CH24
CH23
CH22
CH21
CH20
CH18
CH19
CH17
Install for CT, Remove for
LK2
Standard Motor Amps.
Use P8 for
Current Transformer (CT).
CH16
Use P7B (CH16) for
Standard Motor Current.
CH14 - Slide Valve
CH15 - Slide Stop
CH13 - Economizer Pressure
CH12 - Drive Speed RPM
CH10 - Entering Process Temperature
CH11 - Sys. Discharge Pressure
CH9 - Suction Pressure
CH8 - Discharge Pressure
CH6 - Oil Pressure
CH7 - Filter Pressure
CH5 - Leaving Process Temp.
CH4 - Separator Temperature
CH2 - Discharge Temperature
CH3 - Oil Temperature
CH1 - Suction Temperature
INPUTS
