OVERVIEW

The Quantum™ HD panel features numerous Service re-
lated screens, which will facilitate troubleshooting and
general maintenance. Some of these screens are located
ACCESSING:

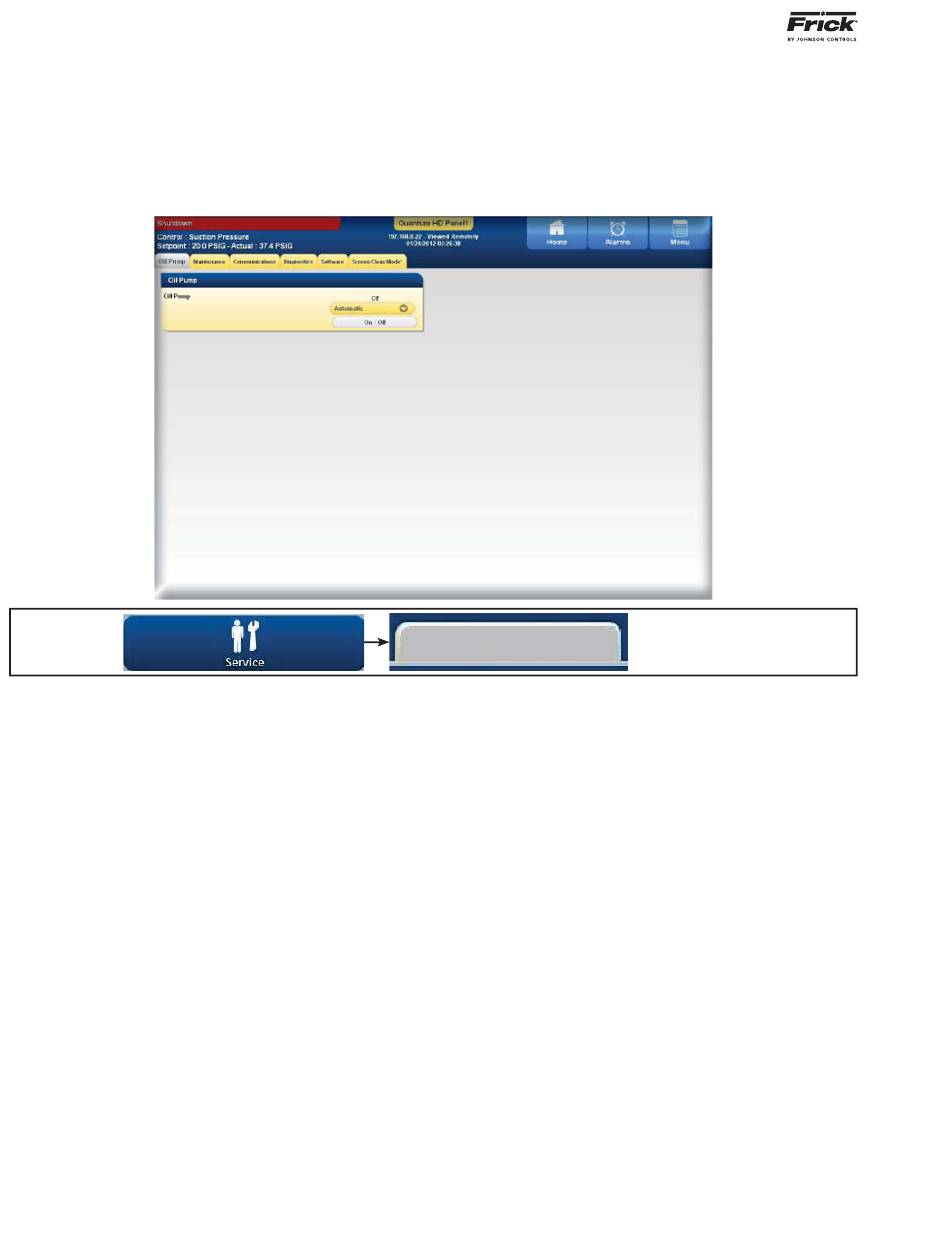

DESCRIPTION: This screen allows for setting and check-
ing the status of the Oil Pump (option). The current condi-
tion of the Oil Pump is shown as being either ON or OFF.
The following additional information is provided on this
screen:
A toggle button is provided to select between:
• Manual - The user has control over the
running of the pump. To run the pump,
simply observe the gray button below the
Automatic/Manual button to ensure that
the pump is not already running, and if not,
then press the [On/Off] toggle button. The
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
SERVICE - Oil Pump
in the main Menu under Service, and others are located
in Status, Confi guration and About screens. The follow-
ing pages describe these screens, and can be accessed by
selecting the SERVICE, STATUS, CONFIGURATION or the
ABOUT icons from the main MENU.
Oil Pump
Oil Pump status text indicator will change
from Off to On. To stop the pump, press the
toggle button again, and the pump indicator
will change to Off. If the Oil Pump toggle
button is set for Automatic, it will change
to Manual if the [On/Off] button is pressed.
• Automatic - If the pump is set to Automatic
mode, the Quantum™ HD software program
is controlling the pump operation. In this
mode, if the toggle key is pressed, the mode
will be changed from Automatic to Manual
Mode, and the current state of the pump
(digital output 3) will also toggle to ON.
