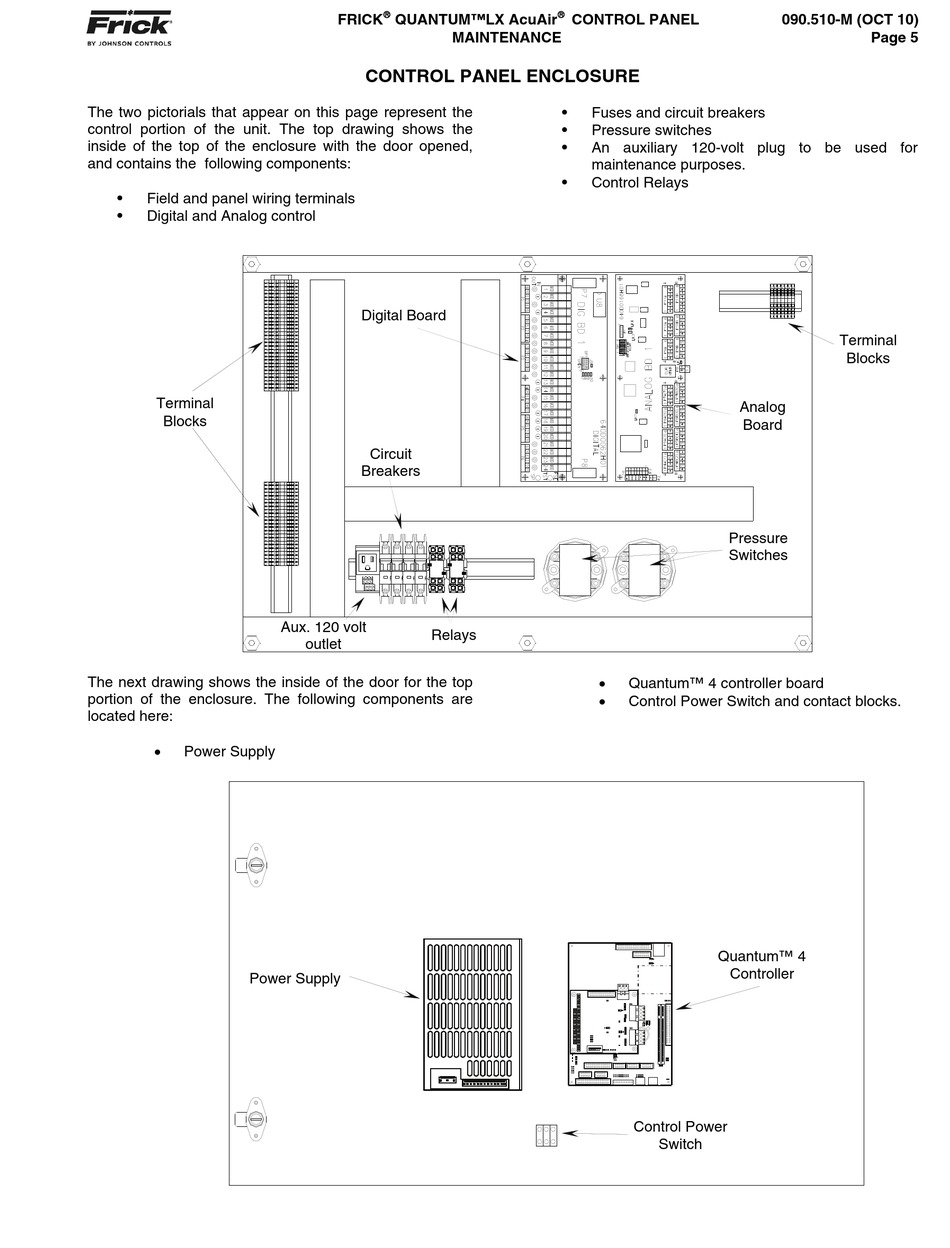

The two pictorials that appear on this page represent the
control portion of the unit. The top drawing shows the
inside of the top of the enclosure with the door opened,
and contains the following components:
•
Field and panel wiring terminals
•
Digital and Analog control
Terminal
Blocks
The next drawing shows the inside of the door for the top
portion of the enclosure. The following components are
located here:
Power Supply
Power Supply
FRICK
QUANTUM™LX AcuAir
MAINTENANCE
CONTROL PANEL ENCLOSURE
Digital Board
Circuit
Breakers
Aux. 120 volt
Relays
outlet
CONTROL PANEL
•
Fuses and circuit breakers
•
Pressure switches
•
An auxiliary 120-volt plug to be used for
maintenance purposes.
•
Control Relays
Pressure
Switches
Quantum™ 4 controller board
Control Power Switch and contact blocks.
Quantum™ 4
Controller
P
P
Control Power
Switch
090.510-M (OCT 10)
Page 5
Terminal
Blocks
Analog
Board
