ACCESSING:

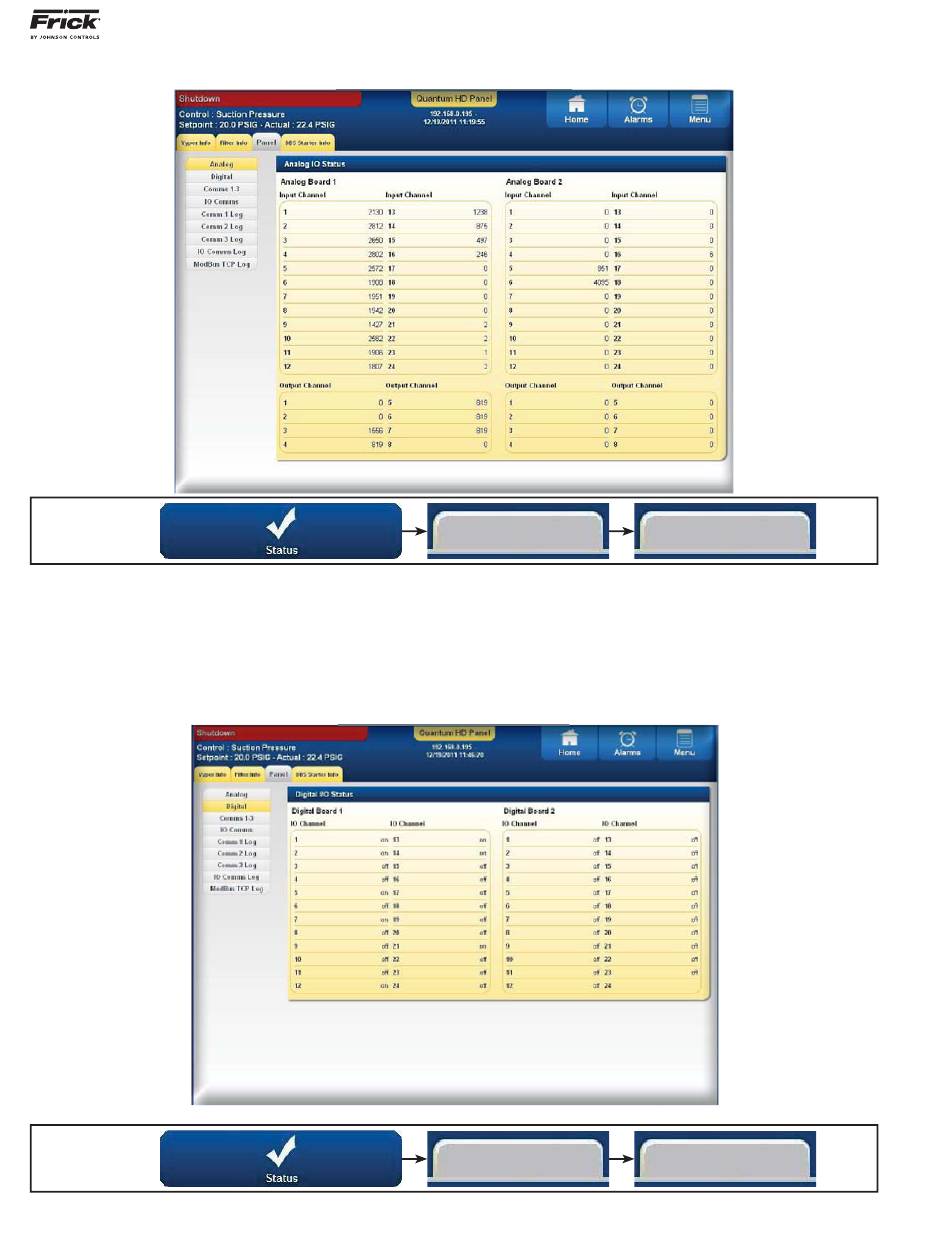

DESCRIPTION: The Analog Service Screen has been pro-
vided to view the raw data from an Analog Board. In-
put Channels 1 through 24 as well as Output channels 1
through 8 are shown for Analog Board 1, and optionally for
ACCESSING:
DESCRIPTION: The Digital Service Screen has been pro-
vided to view the On/Off status of each of the 24 avail-
QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
STATUS - Panel (Analog)
STATUS - Panel (Digital)
g g g g g
Panel
Analog board 2 (if installed). Analog values are converted
from binary to show volts. The error factor is +/- .05 volts.
This is an informational screen only.
g g
Panel
able I/O channels for Digital Board 1, and optionally Digital
Board 2. This is an informational screen only.
