QUANTUM™ HD COMPRESSOR CONTROL PANEL
090.040-M (MAR 12)
MAINTENANCE
Page 71

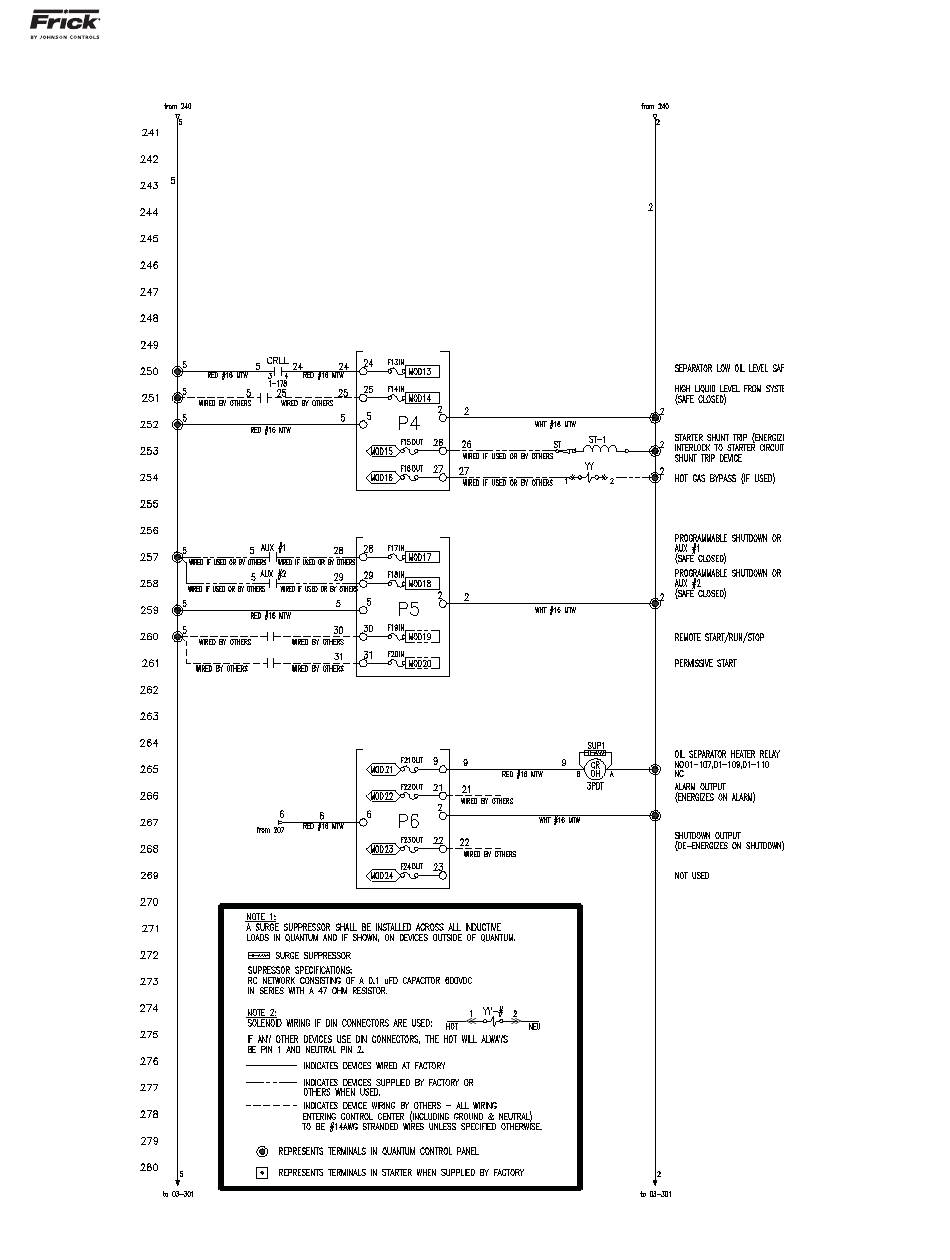

WIRING DIAGRAM – RXF WITH CAPACITY SLIDE TRANSMITTER (Sheet 4 of 6)
DIG BD # 1 - P4
DIG BD # 1 - P5
DIG BD # 1 - P6
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
