Analog Board #2 Pictorial - Johnson Controls FRICK QUANTUM HD Maintenance Manual

090.040-M (MAR 12)
Page 40
24 VDC Power LED (D5)
LK3 & LK4 are not used
for
Analog Board #2
SW1
Active LED (D9)
Tx LED (D8)
Rx LED (D7)
LK1
(Defaulted with jumper out)
LK5
(For Q4 - Must be removed
For Q5 - Must be installed)
LK6
(For Q4 - Pins 1 to 2 jumpered
For Q5 - Pins 2 to 3 jumpered)
12 VDC Power LED (D1)

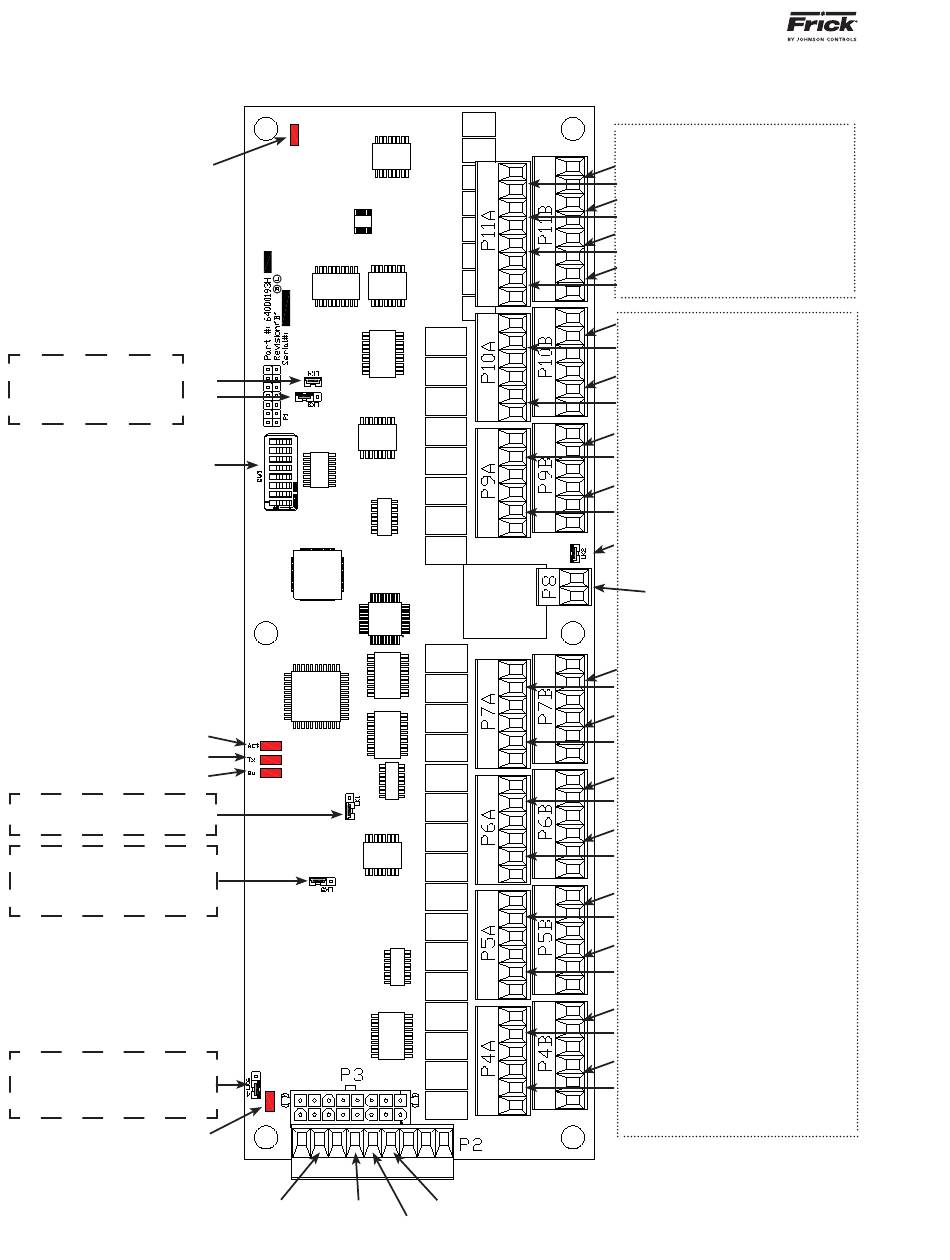

QUANTUM™ HD COMPRESSOR CONTROL PANEL

ANALOG BOARD #2 PICTORIAL

LK4
LK3
+12 VDC
COM
MAINTENANCE
-Tx/-Rx
+Tx/+RX
OUTPUTS
CH8
CH4
CH7
CH3
CH6
CH2
CH5
CH1
CH24 - Input
CH23 - Input
CH22 - Input
CH21 - Input
CH20 - Input
CH18 - Input
CH19 - Input
CH17 - Input
LK2 - Not used for Analog Board #2
(Remove)
P8 not used for Analog Board
#2
CH16 - Input
CH14 - Input
CH15 - Input
CH13 - Input
CH12 - Input
CH10 - Input
CH11 - Input
CH9 - Input
CH8 - Input
CH6 - Input
CH7 - Input
CH5 - Input
CH4 - Input
CH2 - Input
CH3 - Input
CH1 - Input
INPUTS
